VLT
®
FCM Series
Installation

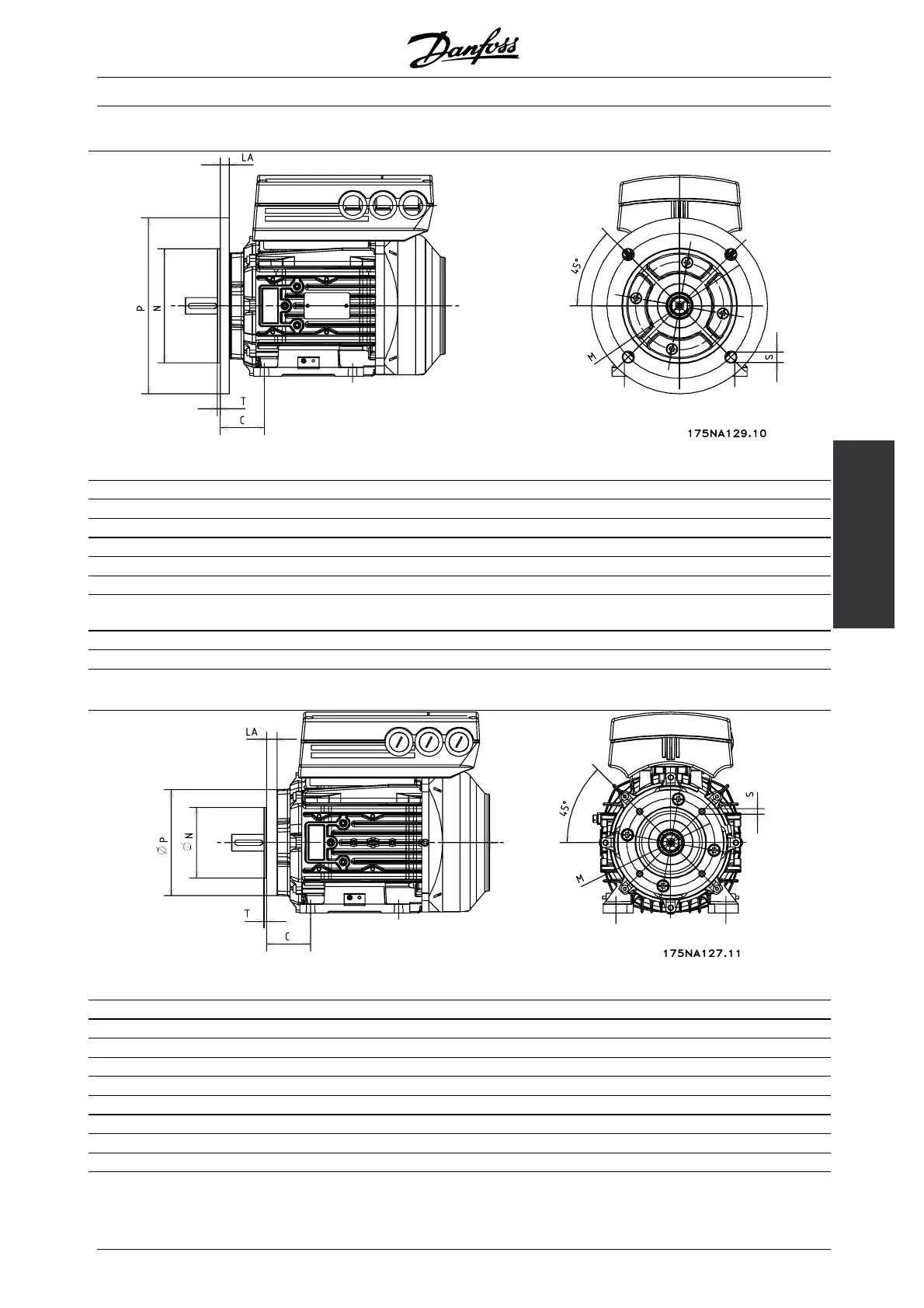

Flange mounting - B5, B35 (B3+B5)
B5
FCM 305 307 311 315 322 330 340 355 375
Framesize80809090100100112132132
IEC Ref. FF165 FF165 FF165 FF165 FF215 FF215 FF215 FF265 FF265
DIN Ref. A200 A200 A200 A200 A250 A250 A250 A300 A300
M [mm] 165 165 165 165 215 215 215 265 265
N [mm] 130 130 130 130 180 180 180 250 230
P [mm] 200 200 200 200 250 250 250 300 300
S[mm] 121211.511.51414141414
T[mm]3.53.53.53.544444
LA [mm] 10 10 10 10 11 11 11 12 12
Face mounting - B14, B34 (B3+B14)
B14
FCM 305 307 311 315 322 330 340 355 375
Frame size 80 80 90 90 100 100 112 132 132
IEC Ref. FT100 FT100 FT115 FT115 FT130 FT130 FT130 FT165 FT165
DIN Ref. C120 C120 C140 C140 C160 C160 C160 C200 C200
M [mm] 100 100 115 115 130 130 130 165 165
N [mm] 80 80 95 95 110 110 110 130 130
P [mm] 120 120 140 140 160 160 160 200 200
S [mm] M6 M6 M8 M8 M8 M8 M8 M10 M10
T [mm] 3 3 3 3 3.5 3.5 3.5 3.5 3.5
LA [mm] 12 12 10 10 10 10 10 12 12
MG.03.H3.02 - VLT is a registered Danfoss trademark
19
