VLT
®
FCM Series
Installation

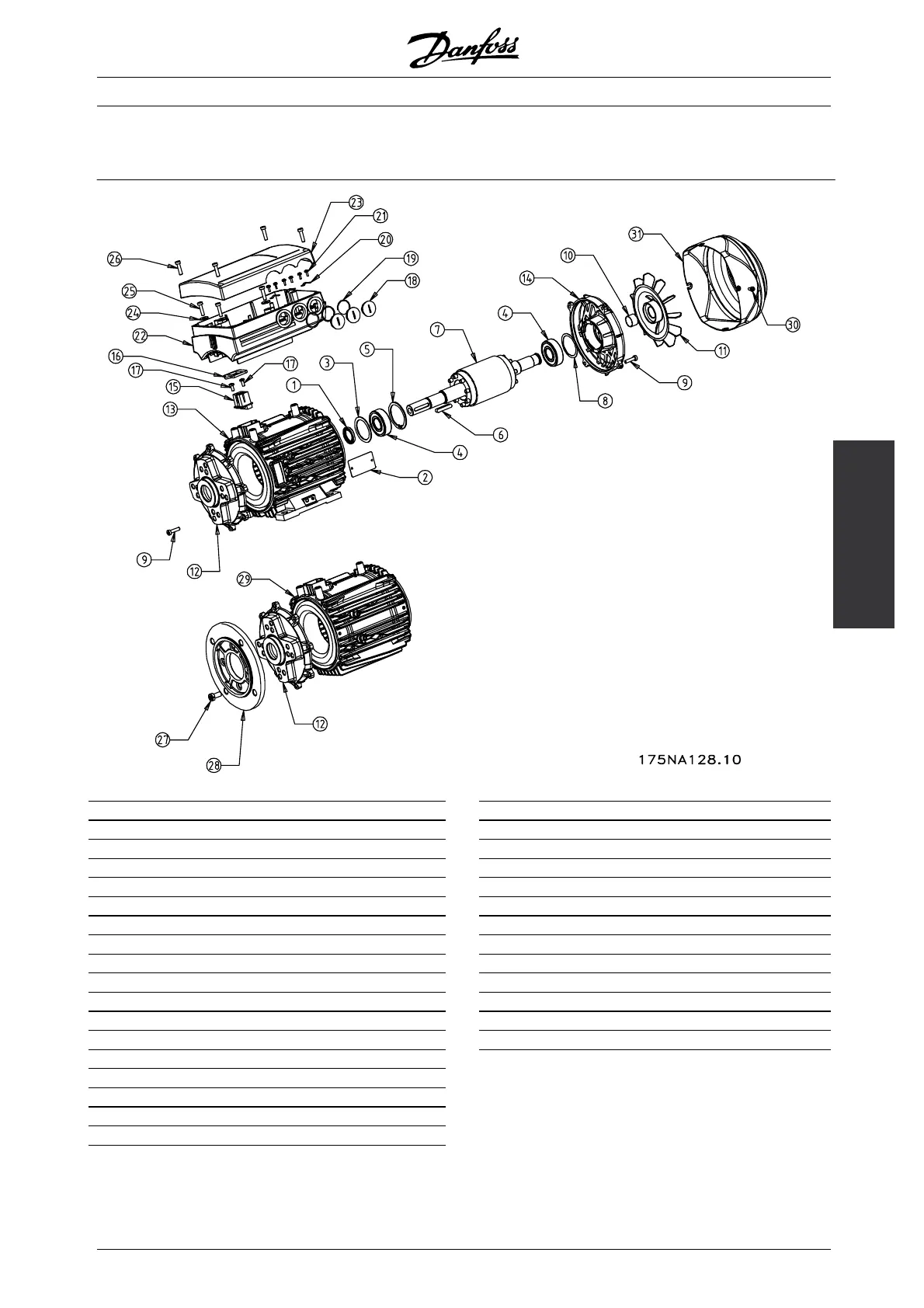

■ Description of the motor
The FC motor consists of the following parts:
Item Description Item Description
1 Gasket 19 Gaskets for cable glands
2 Name plate 20 Cable Clamps
3 Shim ring 21 Screws for cable clamps
4 Ball bearing 22 Frequency inverter
5 Circlip for drive-end bearing 23 Lid for frequency inverter
6 Key 24 Gasket
7 Rotor 25 Torx-screws for inverter monting
8 Shim ring for bearing 26 Screws for lid
9 Tension screws 27 Mounting screws for flange ring
10 Tolerance ring for air blower 28 Flange ring
11 Air blower 29 Stator
12 Endshield drive end 30 Mounting screws for air blower hood
13 Stator 31 Air blower hood
14 Endshield non drive end
15 Connector block
16 Gasket
17 Screws for connector block
18 Metric blind plugs
MG.03.H3.02 - VLT is a registered Danfoss trademark
15
