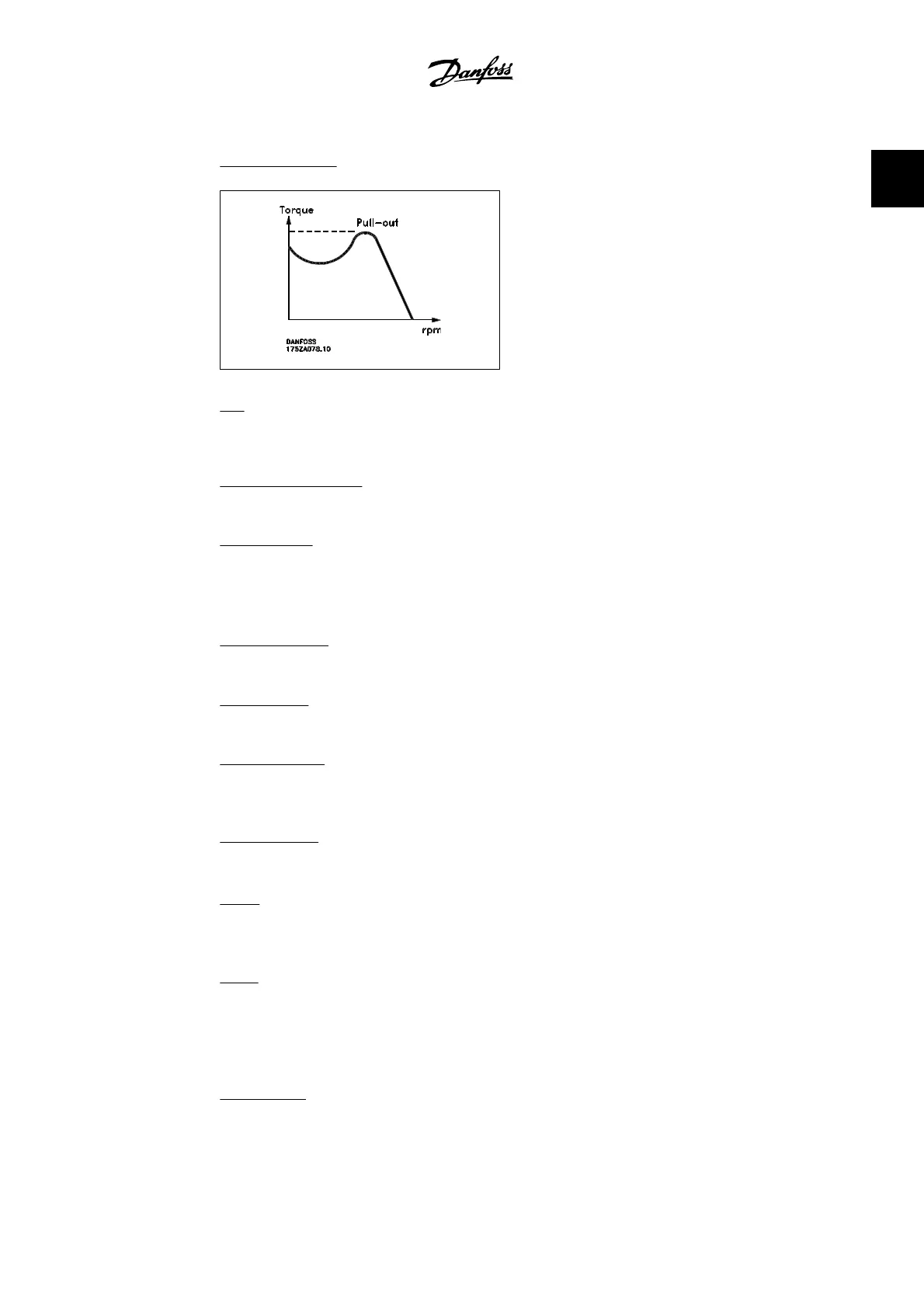

Break-away torque
η
VLT
The efficiency of the adjustable frequency drive is defined as the ratio between the power output
and the power input.
Start-disable command
A stop command belonging to the group 1 control commands - see this group.
Stop command
See Control commands.
References:
Analog Reference
A signal transmitted to the analog inputs 53 or 54 can be voltage or current.
Bus Reference
A signal transmitted to the serial communication port (FC port).
Preset Reference
A defined preset reference to be set from -100% to +100% of the reference range. Selection of
eight preset references via the digital terminals.
Pulse Reference
A pulse frequency signal transmitted to the digital inputs (terminal 29 or 33).
Ref
MAX
Determines the relationship between the reference input at 100% full scale value (typically 10 V,
20 mA) and the resulting reference. The maximum reference value set in par. 3-03.
Ref
MIN
Determines the relationship between the reference input at 0% value (typically 0 V, 0 mA, 4 mA)
and the resulting reference. The minimum reference value set in par. 3-02.
Miscellaneous:
Analog Inputs
The analog inputs are used for controlling various functions of the adjustable frequency drive.
VLT
®
HVAC Drive Design Guide 1. How to Read this Design Guide
MG.11.B4.22 - VLT
®
is a registered Danfoss trademark.
9
1
