Detection Spectrum from 830 to 1000 nm
Object temperature from 700 a 1200 °C
(1300 to 2200 °F)
Field ranges
vertical: 45°/30° (selectable)
horizontal: 0,5°
Position resolution 0,1°
Operating temperature from 0 to +50°C (from 32 to 122°F)
Storage temperature from -5 to +80°C (from 23 to 176°F)
Power supply 24 VDC ± 20%
Consumption 300 mA 24 VDC 7.2 W
NPN Output Open collector, 30 V Max
I out Max = 200 mA (*)
@T amb = 50°C (122°F)
single output used (**)
PNP Output Open collector, 30 V Max
I out Max = 200 mA (*)
@T amb = 50°C (122°F)
single output used (**)
Looper position, tension analog 0/10V, -10/+10V, -5/+5V, (selectable)
output (POS) Imax=10mA (*)
Looper position, current analog 0/20mA, 4/20mA, (selectable)
output (IPO) R max 250 Ohm (*)
Response time <3 ms
Auto-test device power supply 24 VDC / 10 mA
Protection grade IP55
Dimensions 266 x 180 x 64 mm (fig.13)
(excluding connectors) (10,5" x 7,1" x 2,5")
Weight 1.85 Kg (65 oz)
(*): Outputs protected against short circuits.
(**): In case both outputs (NPN and PNP) are used at
the same time, the max. allowable current is 100 mA
for each output.
Pag. 17
Instruction Manual
EEnngglliisshh
Pag. 16
Danieli Automation - ID6100
The purpose of this manual is to provide information and instructions necessary for the installation,
operation and maintenance of the ID6100 loop detector (loop "scanner").
It presents information on the operating principles. and applications of the unit, and describes the
spare parts list.
The device ID6100 is an optical loop detector (loop "scanner") intended for hot material with tem-
perature above 700°C (approx. 1300° F).
It has been specifically designed for use in hot rolling as a loop position detector between two stands.
The optical system is composed of an aspherical lens and an infrared filter which focuses the IR
emissions detected onto a CCD linear-array photosensor.
22..11 AApppplliiccaattiioonnss
The ID6100 is designed specifically for use in hot rolling steelworks. The construction characteri-
stics of the photodetector permit it to be applied in harsh industrial environments.
The ID6100 is powered by a low voltage direct current supply and is provided with optoisolated loop
position analog outputs (voltage and current) and with NPN / PNP open collector outputs, protec-
ted against overloads and overvoltage.
22..22 PPhhyyssiiccaall AAppppeeaarraannccee

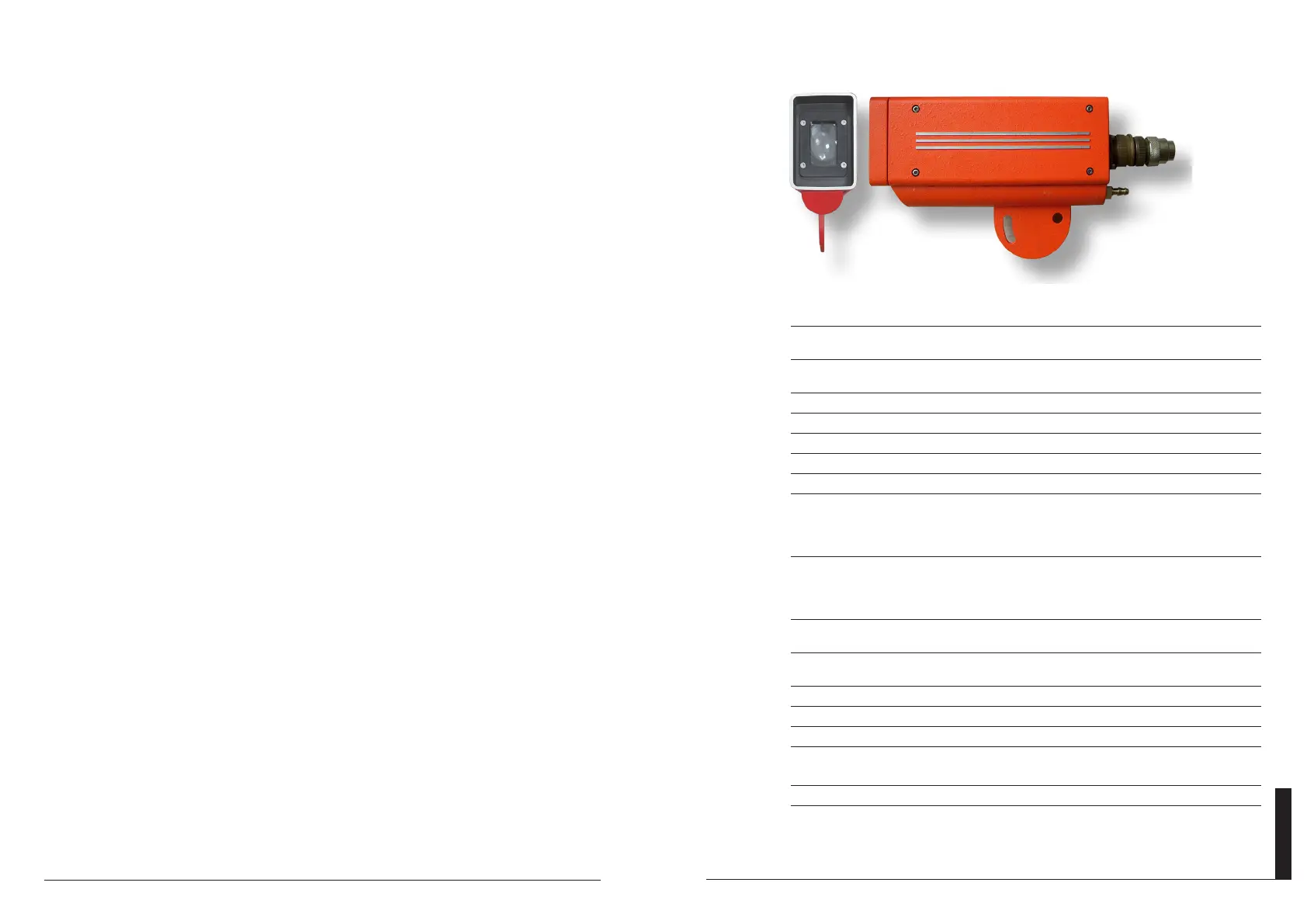

The housing of the ID6100 (see Figure 1), is made of pressure die-cast aluminium and it incorpo-
rates a cooling circuit.
Depending on the particular operating conditions of the application, this circuit can be fed with air,
water or other cooling fluids.
The photodetector has a semi-circular support plate that allows it to be mounted and aligned in the
vertical plane within an angle of approximately 30°.
11.. IINNTTRROODDUUCCTTIIOONN
22.. GGEENNEERRAALL DDEESSCCRRIIPPTTIIOONN
33.. TTEECCHHNNIICCAAL
L CCHHAARRAACCTTEERRIISSTTIICCSS
11
