UG-001 Daniels P25 Radio Systems
www.danelec.com
Chapter 5: Software
33
User
Guide
The confi guration screen will allow for a wide variety of complex repeater confi gurations using a link
confi guration grid as shown in Figure 5-14. The grid uses color coding to indicate different connection
settings.

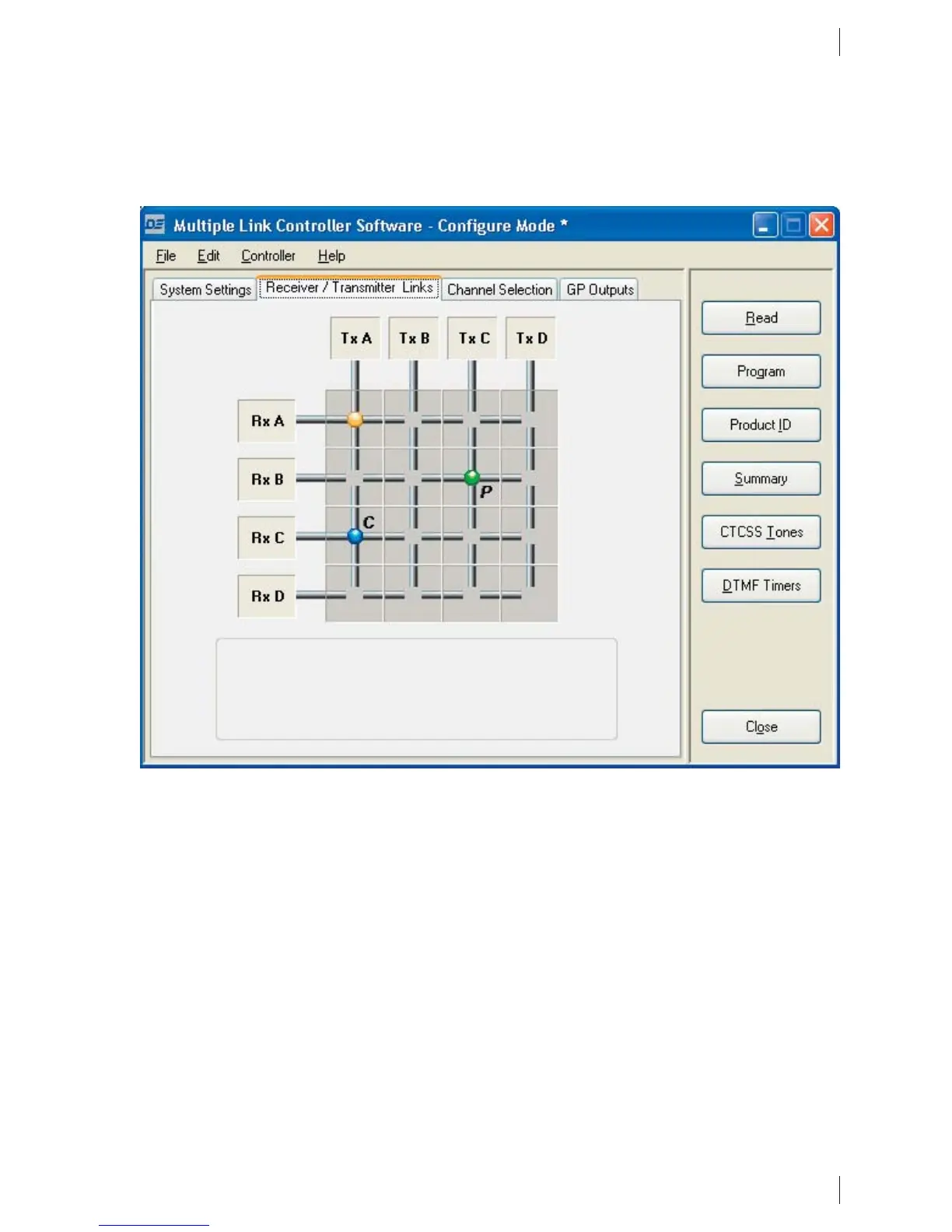

Figure 5-14: CI-RC-4M Program Link Confi guration Grid
