2. Pull the power supply and CPU boards down
(refer to Fig. 29).

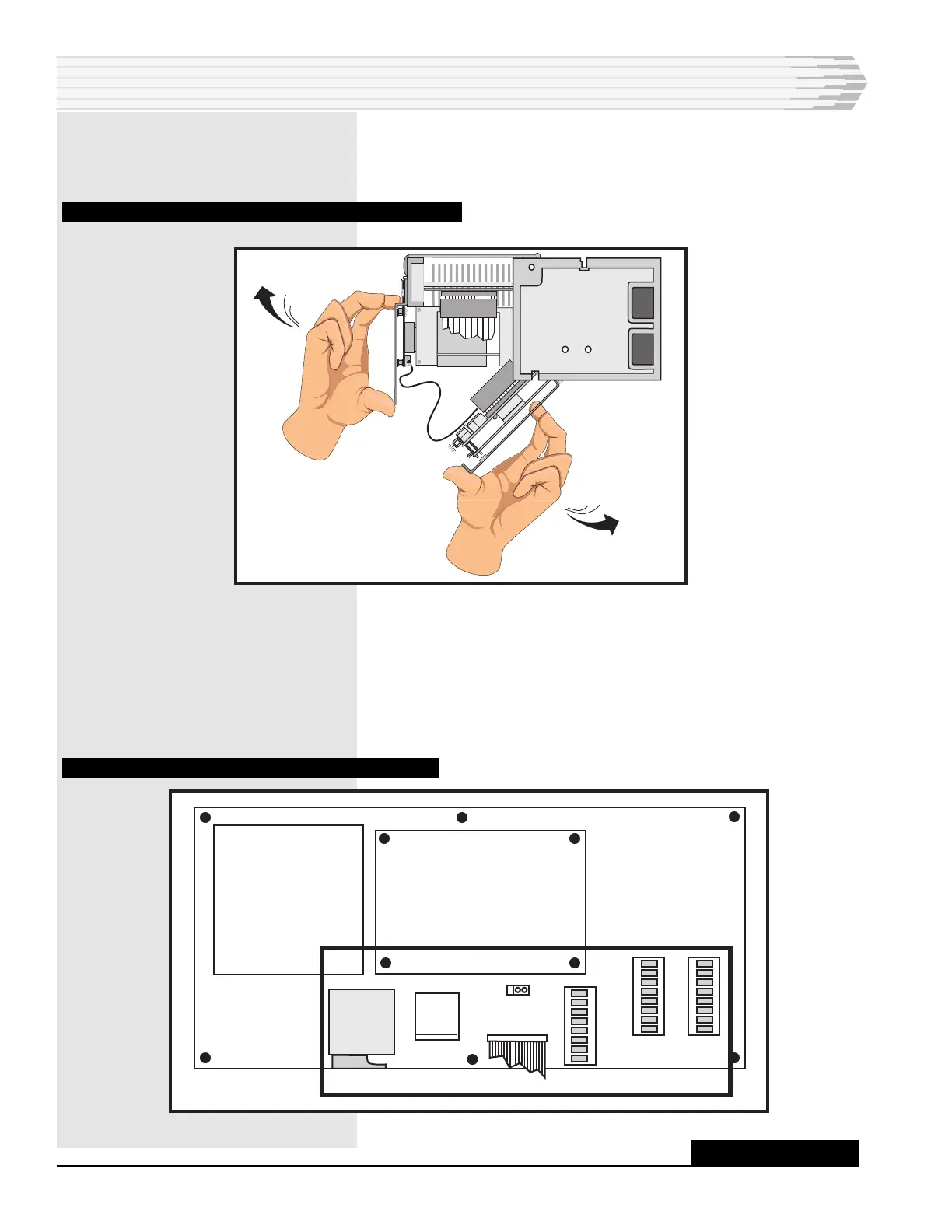

FIG. 29 - PULLING DOWN POWER SUPPLY AND CPU BOARDS
3. Remove power by pulling out the fuse (refer to Fig. 30). The power
connector at TB1 does not have to be disconnected.
4. On the power supply board (the top board), remove the 202 subas-
sembly or the subassembly bypass module (refer to Fig. 30).
5. Install the RS-232 subassembly.
FIG. 30 - POWER SUPPLY BOARD COMPONENT LOCATION
PRINTER SYNTAX
F1
TB1
P1
S1
S2
S3
AUX LED
1
3
-48
ALM
GND
RS-232 OR 202
SUBASSEMBLY
CONTINUED . . .
