Dantherm AC-M5 W MKII User Manual

11
062367 • Version 1.0 • 14.02.2011
Description of the cooling system, continued
Parts and their
function
This table gives an overview and short description of each part shown in the previous illus-
tration:
Part Function
c
Evaporator Absorbs heat from the shelter by cooling down the circulated
air
d
Condenser Emits the heat generated in the tent/room to the outside air
e
Centrifugal fan For internal air flow
f
Axial fan For external air flow
g
Compressor Circulates the fluid in the cooling system
h
Expansion valve Supplies the correct quantity of coolant into the evaporator
i
Sight glass Enables a visual check of the coolant
j
Control panel Control panel with function switch and indicator lamp(s)

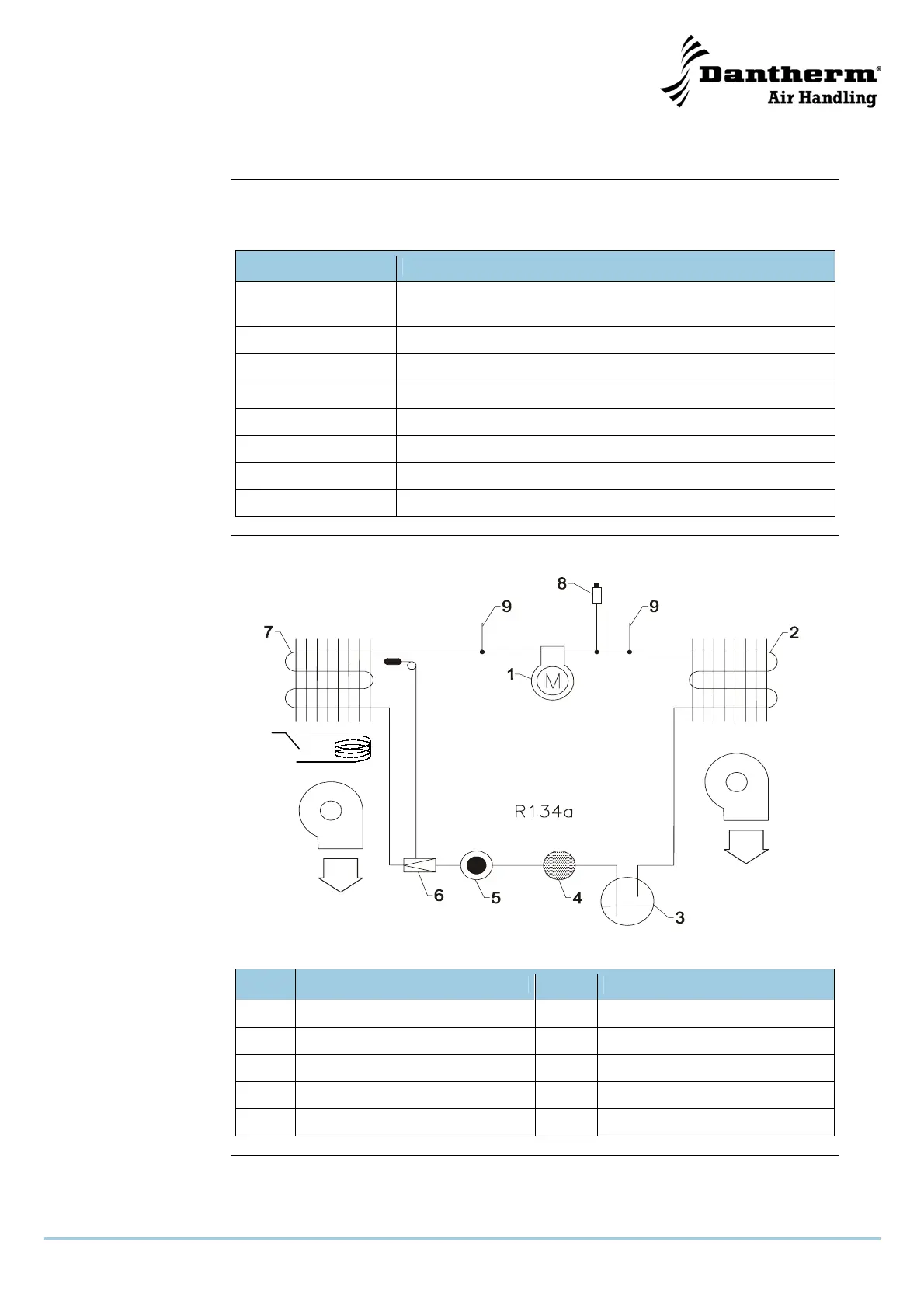

Schematic view
This schematic drawing illustrates the different parts of the cooling circuit:
Fig. 1
Part Function Part Function
c
Compressor
h
Expansion valve
d
Condenser
i
Evaporator
e
Receiver
j
HP pressure switch
f
Liquid line drier
k
Schrader valve
g
Sight glass
l
Heating element
