12
Description of the control board
Introduction
This section gives a detailed description of the control board.
A description of how to start up, for example, is found in section “User’s guide”, from
page 16.
The control panel on the front side contains all the controls required for normal opera-
tion.

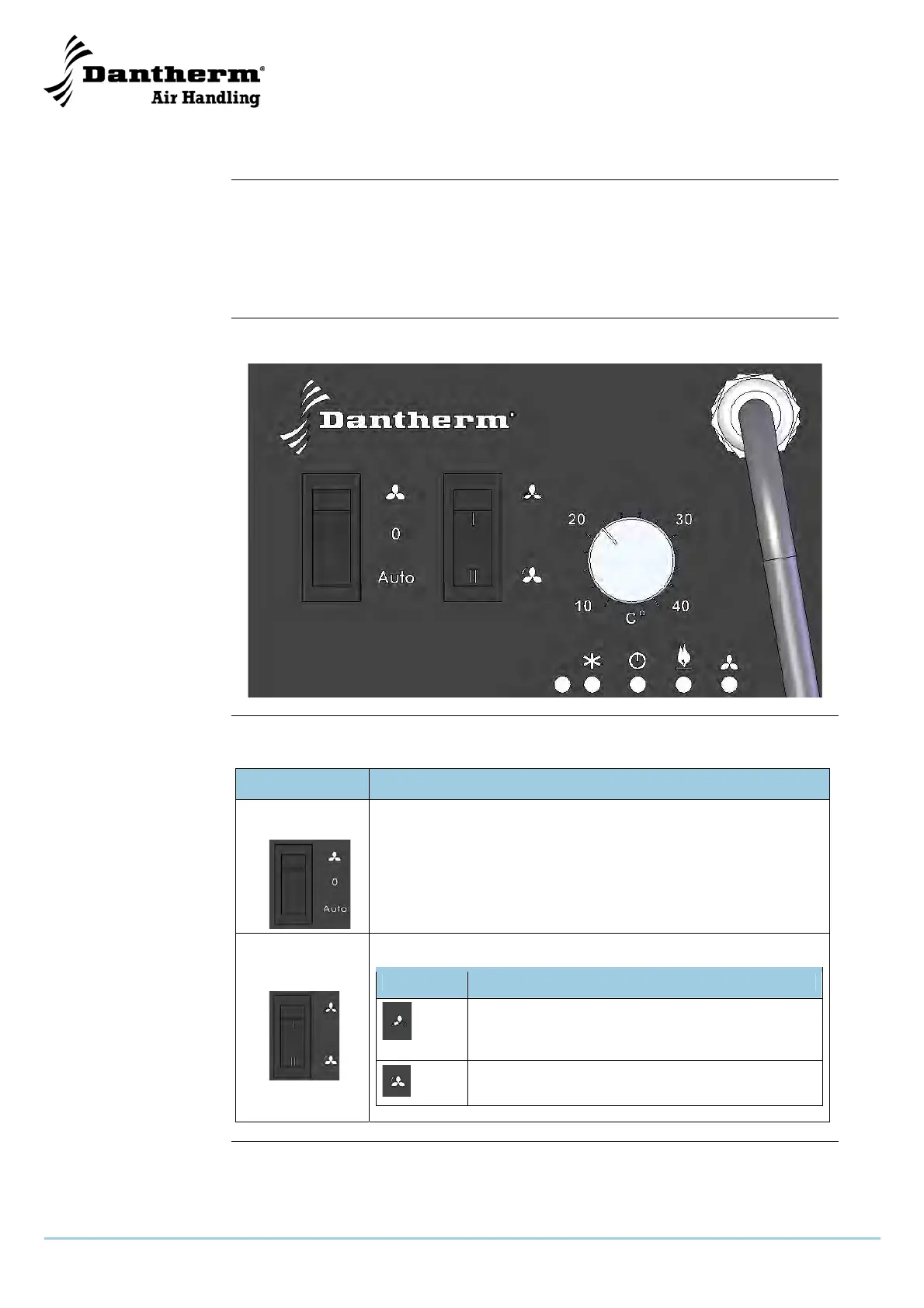

Illustration
This illustrates the control board of the AC-M5 W MKII:
Part/function
This table gives an overview of each part of the control panel:
Part Function
c
Function
switch
The function switch selects the operating mode.
For a detailed description of the modes please see section
“Functional description”, page 15
d
Evaporator
fan speed
switch
Switch for high or low evaporator fan speed:
Speed Description
low/I
Normally used if the noise level should be low
and the maximum cooling/heating capacity is not
required
high/II
Normally used if a maximum cooling/heating ca-
pacity is required
Continued overleaf
e
c
d
f
g
