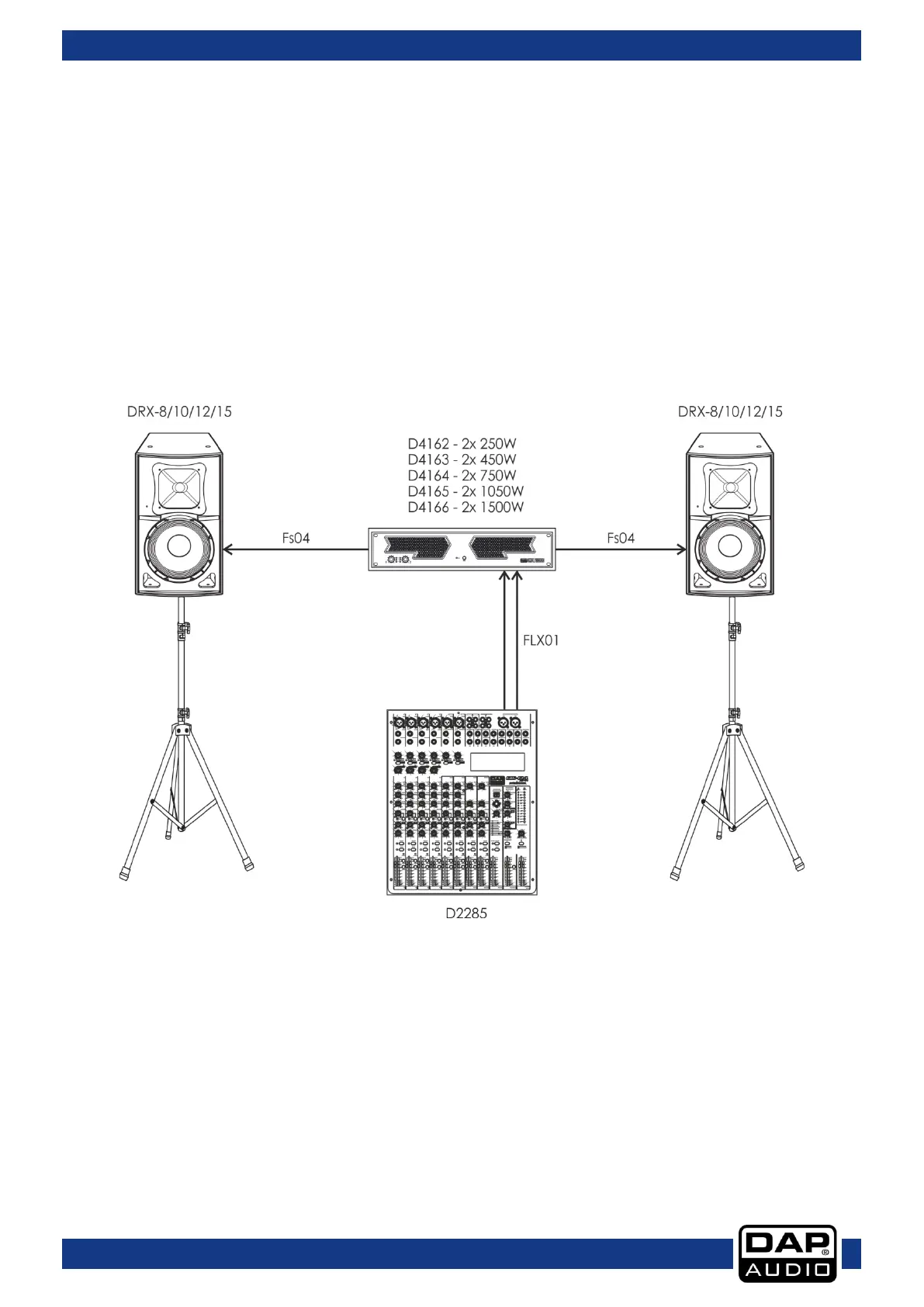

Two Passive Satellite Speakers
Make your initial connections with all the equipment powered off and ensure that all the main
volume controls are turned completely down.
1) Connect one side of the speaker cable to the Output CH 1 / CH 2 to Binding Post of your stereo
power amplifier and the other side to the Input socket of your speaker cabinet.
2) Complete other connections as illustrated.
3) Turn on your mixer first, then the stereo power amplifier.
4) Use PFL function to get the proper input level for the mixer and adjust the Main Mix Level control
to manipulate the output level.
5) After using your equipment, turn off your stereo power amplifier first, then the mixer.
