Description of the device
Features
• Power taps: 3/6/12W
• Line voltage: 100V
• Frequency response: 130-15 kHz
• Sensitivity: 91 dB
• Housing: ABS
• Color: White
• IP rating: IP55
• Dimensions: 200 x 160 x 200 mm (LxWxH)
• Weight: 1,7 kg

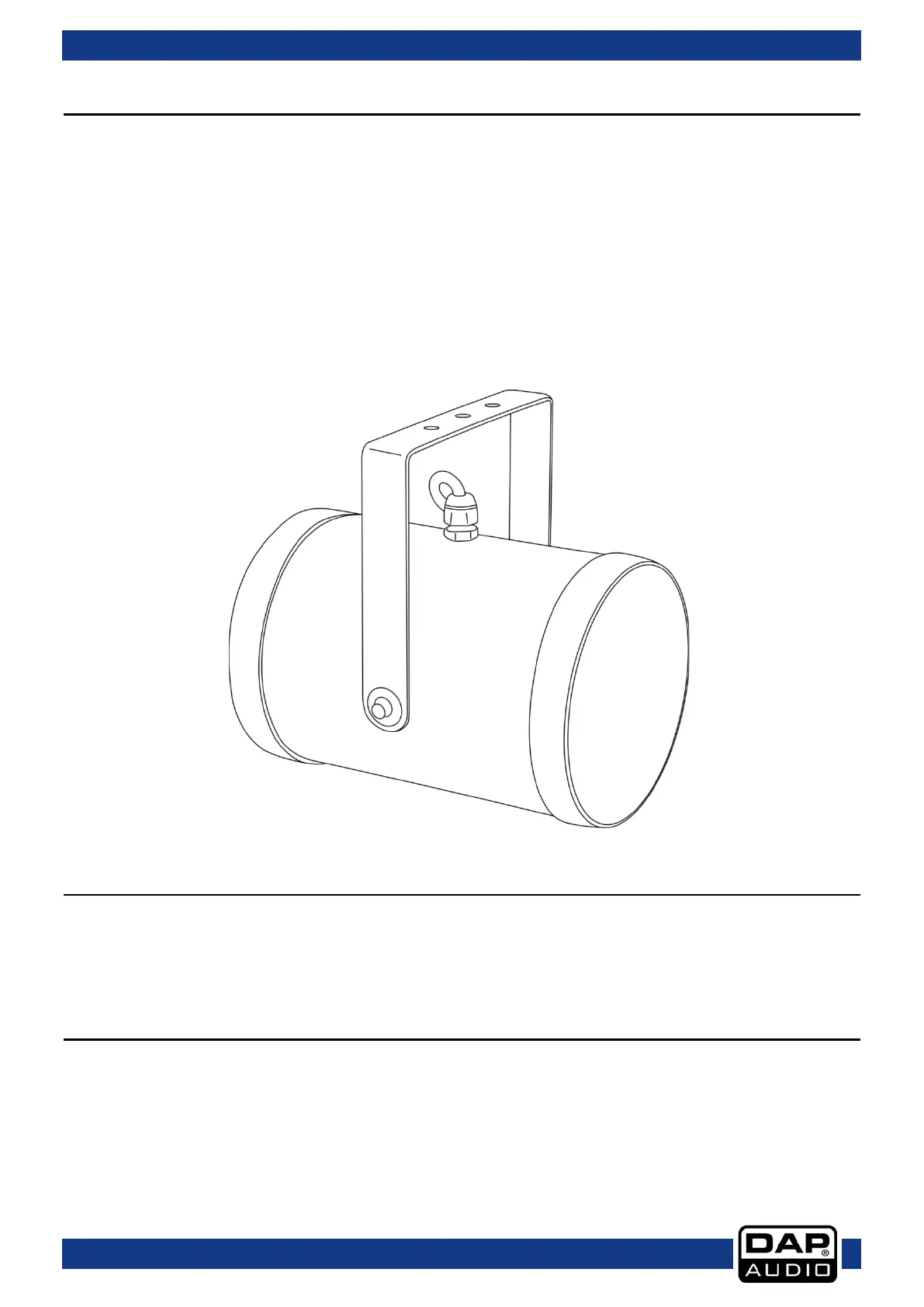

Overview
Installation
Remove all packing materials from the PSB-510P. Check if all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
01) Connect the blue cable to the common cable.
02) Connect one of the colored cables to the main feed cable: red cable = 12W, yellow cable = 6W,
green cable = 3W.
