Data East laser WAR - Playfield Switch Wiring Diagram




 
 

 
 
 
 
  
 
  
 
 
  

 
 

 

 
 


 

 
 
 
 
 
 
 
 
 
  
   
 
 
 




  
 



 




 
 
  
 
 
 
  
 
 
  
 




 
 

 

 










 



 
 
  

 





 
 

 
   
 
  
 
  
  
  
 
 
 
 
 
 
 
 
 
2M/4F


 

 

  


 

 



 


 - 





  





 

 


 

 



CPU BOARD



  





 



 





 





 



 

  


  

 

 
 


 






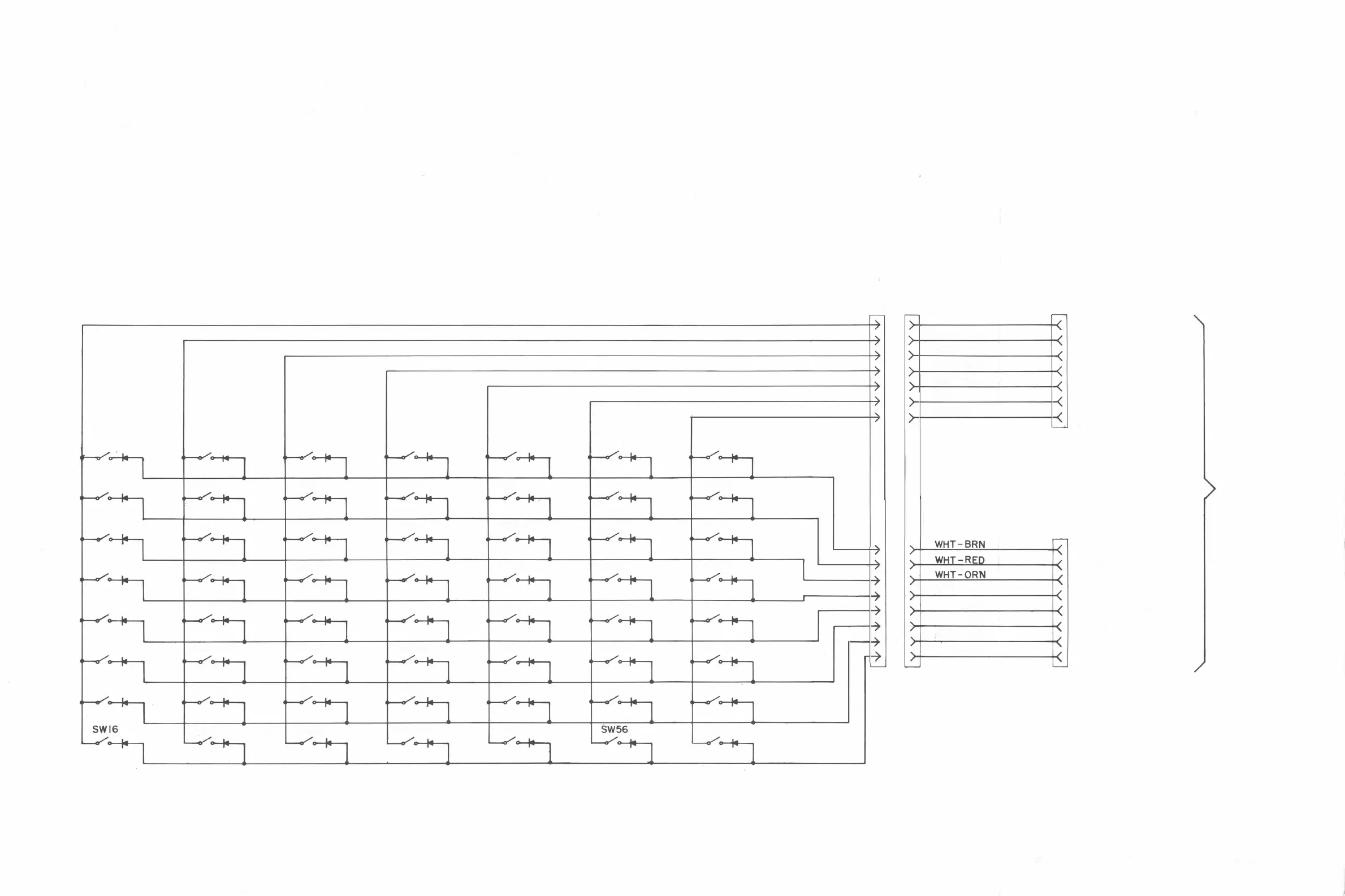

PLAYFIELD SWITCH WIRING DIAGRAM

