VGA and Audio Cat-X AV Extender
13 / 16
(6) System Expansion through UTP: This series can stack into maximum
three layers of UTP section to reach more AV outputs and depends on the
display devices, you may reach a lower VGA solution than single layer. The
suggested range of VGA broadcasting is 800x600@900m, 1280x1024@600m,
and 2048x1536@300m. Please be noted that you must use Transceiver for
intermediate expansion.

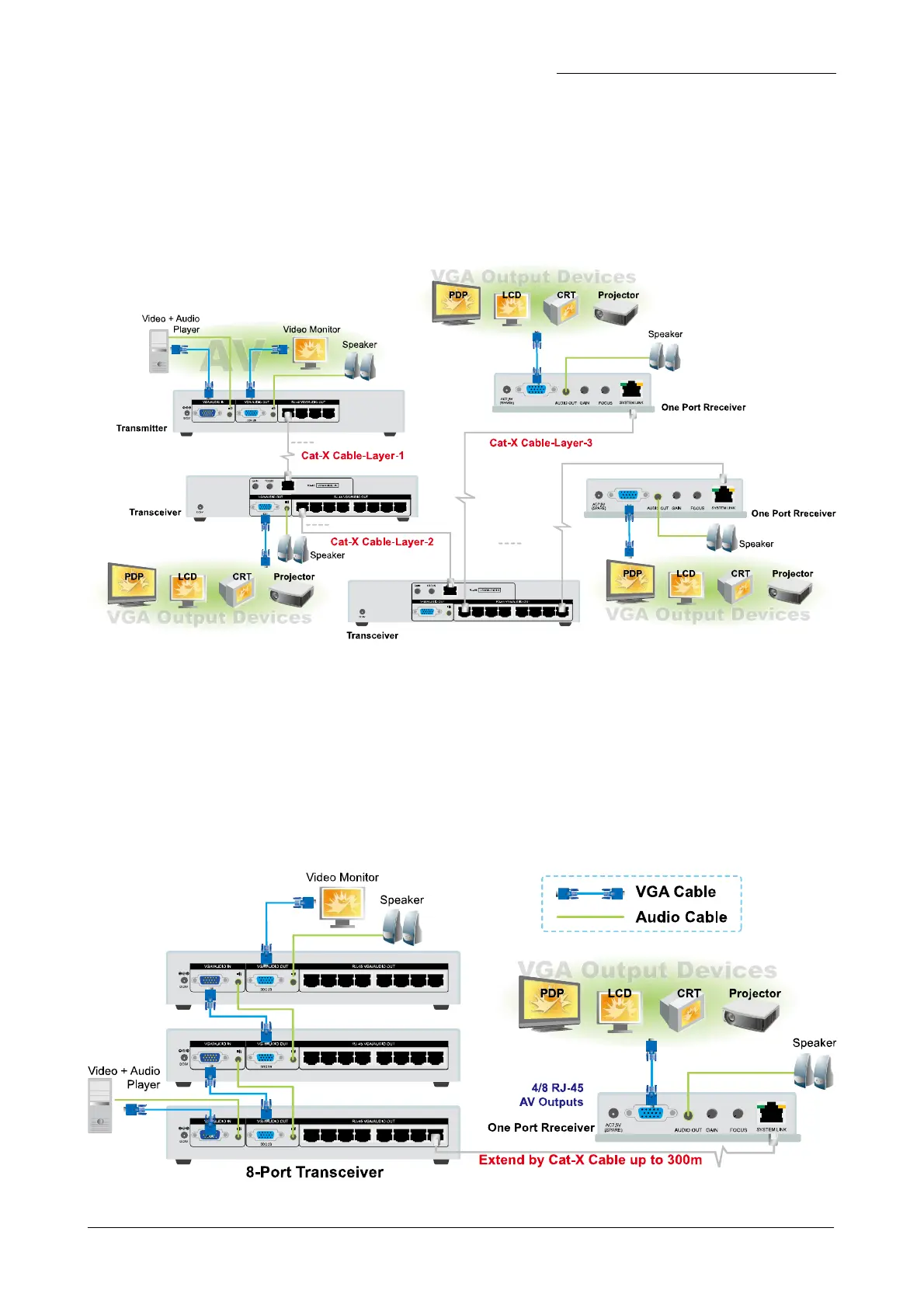

Stack 3 Layers of AV Extender through Cat-X to Reach more Displays
(7) Local System Expansion: You can also stack up to 3 layers of system
Transceiver to generate more RJ-45 outputs of AV signal locally, please
refer to following diagram.
