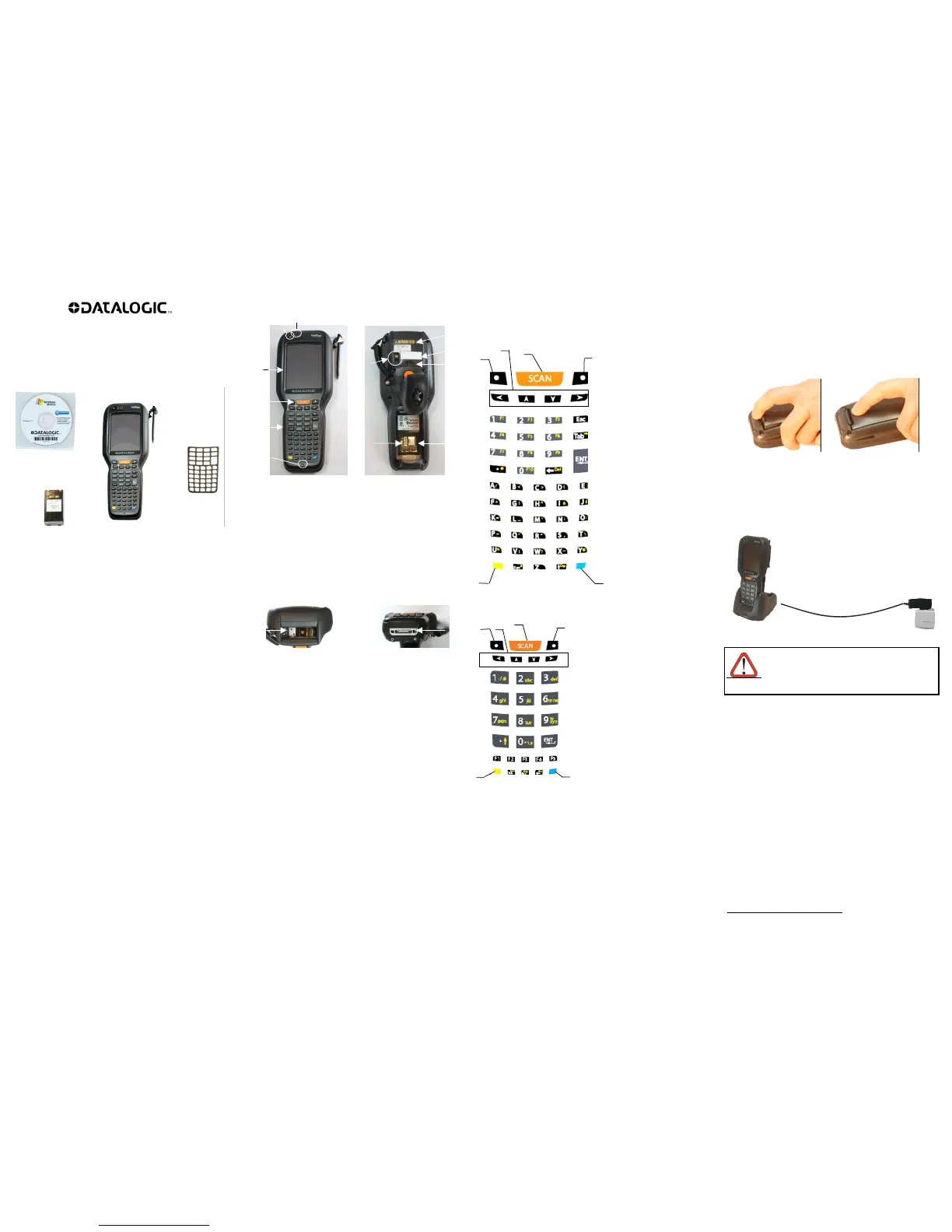

Falcon™ X3 Quick Start Guide
THE PACKAGE
The Falcon X3 package includes the following items:
Figure 1
A) CD-ROM Getting Started Disk for Windows Mobile only
B) Falcon X3
C) Rechargeable battery pack
D) Blank keypad overlay
822501450
THE TERMINAL
A) LEDs
B) ON/OFF Power Key
C) Color Display*
D) Front Scan Key
E) Keypad
F) Microphone
G) Stylus
H) Laser Safety Label
I) Product Label
J) Color Camera/Flash (optional)
K) Loudspeaker
L) Reset Key (under battery)
M) Micro-SD Card Slot (under battery)
∗ Remove protective film cover before use
N Data Capture Output
Window *
O Handylink Connector
(host/client)
KEYPADS
Alphanumeric Keyboard
Numeric Keyboard
1.
Navigation
− Up/down arrows with Yellow Modifier adjusts volume
− Up/down arrows with Blue Modifier adjusts backlight
− Left with Blue Modifier locks keyboard
− Right with Blue Modifier acts as MS Start key
2. Scan Key
3. Yellow Modifier
4. Blue Modifier
5. Soft Key
GETTING STARTED
Insert the Battery
Insert the battery with the contacts down and the latch toward the
device main connector. Then press the battery into the device
until the battery latch engages automatically:
Charge the Battery
With Single Slot Dock
∗
CAUTION
Do not use the Falcon™ until batteries are
charged for minimum 4 hours.
∗
The power supply for the Single Slot Dock is included in the Single Slot
Dock box
O
A
B
C
D
H
J
I
M
L
K
N
C
D
E
B
F
A
G
1
2
4
3
To Next Page
