Datalogic Memor Manual

By inserting the Datalogic Memor™ into the cradle, data can be transmitted to the host and its battery
begins charging if the power supply is connected. In addition, a spare battery can be charged by inserting
it into the slot at the back of the Datalogic Memor™ Single Cradle as shown in the following figure.

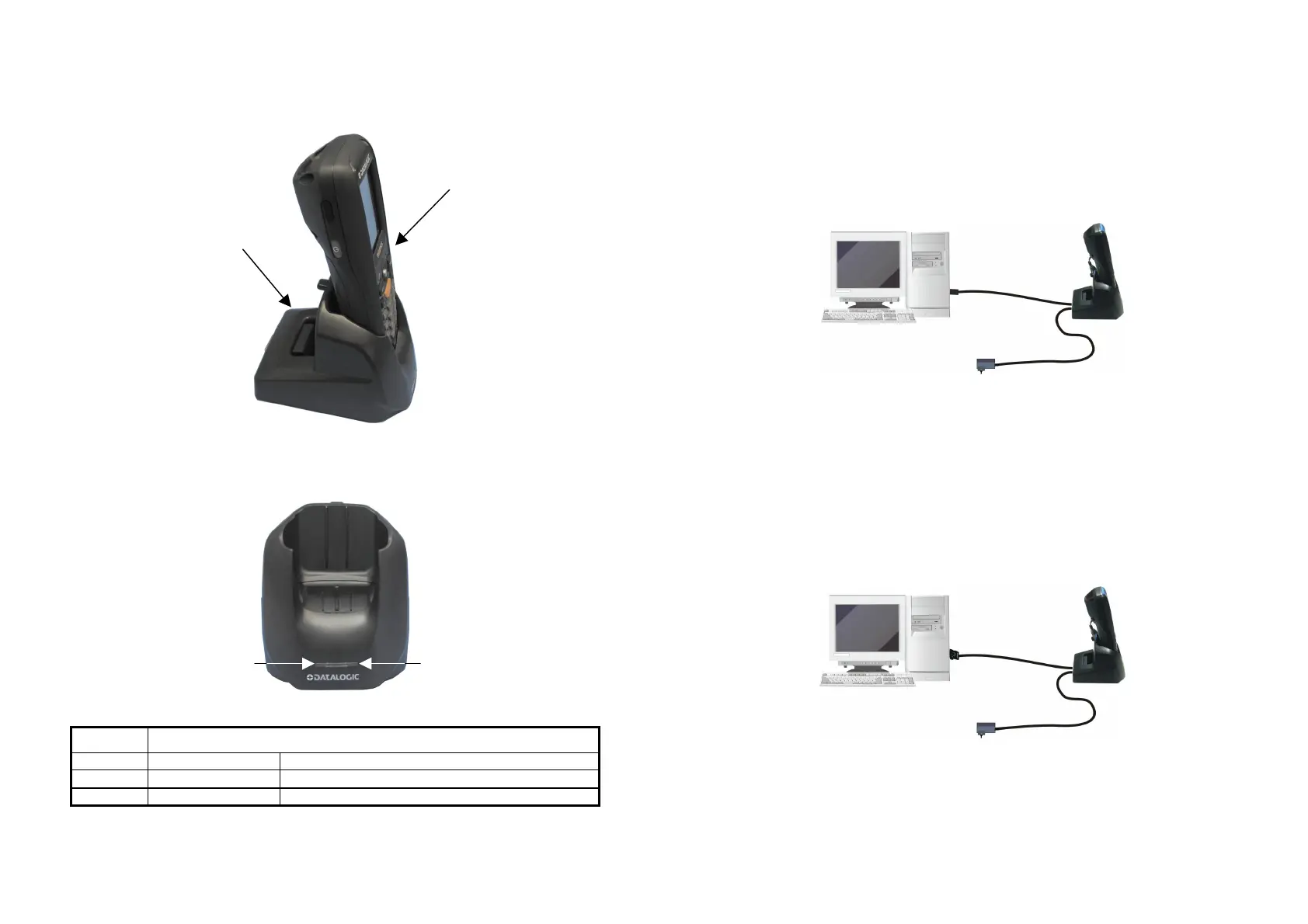

Figure 2 – Datalogic Memor™ Single Cradle Charging and Communication
The LEDs positioned on the front part of the Datalogic Memor™ Single Cradle (see figure below) indicate
the cradle and spare battery charger status:
Figure 3 - LED Indicators
LED STATUS
Charger Red Constant Spare battery charging*
Green Constant Spare battery charge completed
Power Green it is constant when the cradle is powered
* During charging, the LED may turn off to indicate a temporary suspension of charging.
The Datalogic Memor™ Single Cradle can be connected to a host by means of a USB interface or an
RS232 interface.
USB CONNECTION
The Datalogic Memor™ Single Cradle can be connected to the host by means of any standard Mini USB
cable.
Once the host has been turned on, insert the Datalogic Memor™ mobile computer into the cradle.
Figure 4 - USB Connection
A) Host Computer C) Datalogic Memor™ Single Cradle
B) Std Mini USB (i.e. 94A051016 CAB-421) D) *Power Supply (only necessary for battery charging)
* Recommended power supply: 94ACC1324 PG5-30P35 AC/DC POWER SUPPLY EU/USA PLUG.
RS232 CONNECTION
A Datalogic Memor™ Single Cradle can be connected to the host by means of any standard null modem
cable. The 9-pin female D-Sub connector must be connected to the RS232 port of the cradle.
Once the host has been turned on, insert the Datalogic Memor™ mobile computer into the cradle.
Figure 5 - RS232 Connection
A) Host Computer C) Datalogic Memor™ Single Cradle
B) Null Modem cable (i.e. 94A051020
CAB-427)
D) *Power Supply (only necessary for battery charging)
* Recommended power supply: 94ACC1324 PG5-30P35 AC/DC POWER SUPPLY EU/USA PLUG.
Spare battery Charge
Slot with Spare
Battery Inserted
Data Transmission and Mobile
Computer Battery Charging
Spare Battery
Charger LED
Power LED
A
B
C
D*
A
B
C
D*

Datalogic Memor Specifications

General

Scan speed	104 sec/page
Wavelength	630 nm
Sensor type	Laser
Decoding standards	UPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39 Full ASCII, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, EAN 128, Codabar, MSI, Plessey, Code 93, Code 11, GS1 Databar.
Product color	Black
Internal memory	256 MB
Built-in processor	PXA310
Display resolution	240 x 320 pixels
Processor frequency	624 MHz
Bluetooth	Yes
Standard interfaces	USB, RS-232
Battery type	Li-polymer/Li-ion
Input voltage	5 V
Power consumption	1100 mA
Safety	Class 2
Display	Reflective TFT 64K
Dimensions (WxDxH)	152 x 55 x 40 mm
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Weight	230 g
