Connecting the Base Station
Quick Reference Guide 5
4. Connect to an AC Adapter, and plug the AC power cord
into the (wall) outlet.

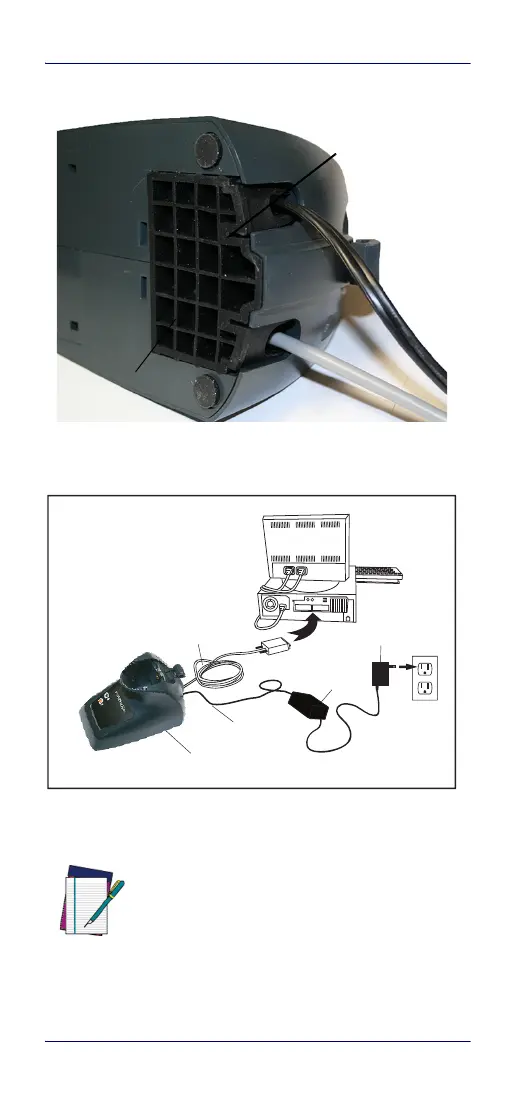

Figure 3. Connecting the Base Station
Host Connection —
Verify before connection that the reader’s
cable type is compatible with your host equipment.
Most connections plug directly into the host device as shown
in Figure 4. Keyboard Wedge interface cables have a ‘Y’ con-
NOTE
The QuickScan QBT2400 reader can be set up to
require a PIN code when connecting to the host.
If you are adding new equipment to a system
that uses a custom security PIN, please see the
PRG for information before proceeding.
Cable Stopper
reinserted
Base
Station
I/F Cable
AC/DC
Adapter
DC Power
Cord
Wall plug
Connector
