Datalogic Skorpio X3 Quick Start Guide

Skorpio™ X3 Mobile Computer
Quick Start Guide
THE PACKAGE
The Skorpio X3 package contains:
 Skorpio X3 mobile computer
 Rechargeable standard battery pack
 Terminal emulation overlay
 Belt clip (handheld models only)
 Belt clip pivot (handheld models only)
 Hand-strap (pistol grip models only)
 Quick Start Guide
 Wavelink Avalanche Insert
 End User License Agreement (EULA) Sheet

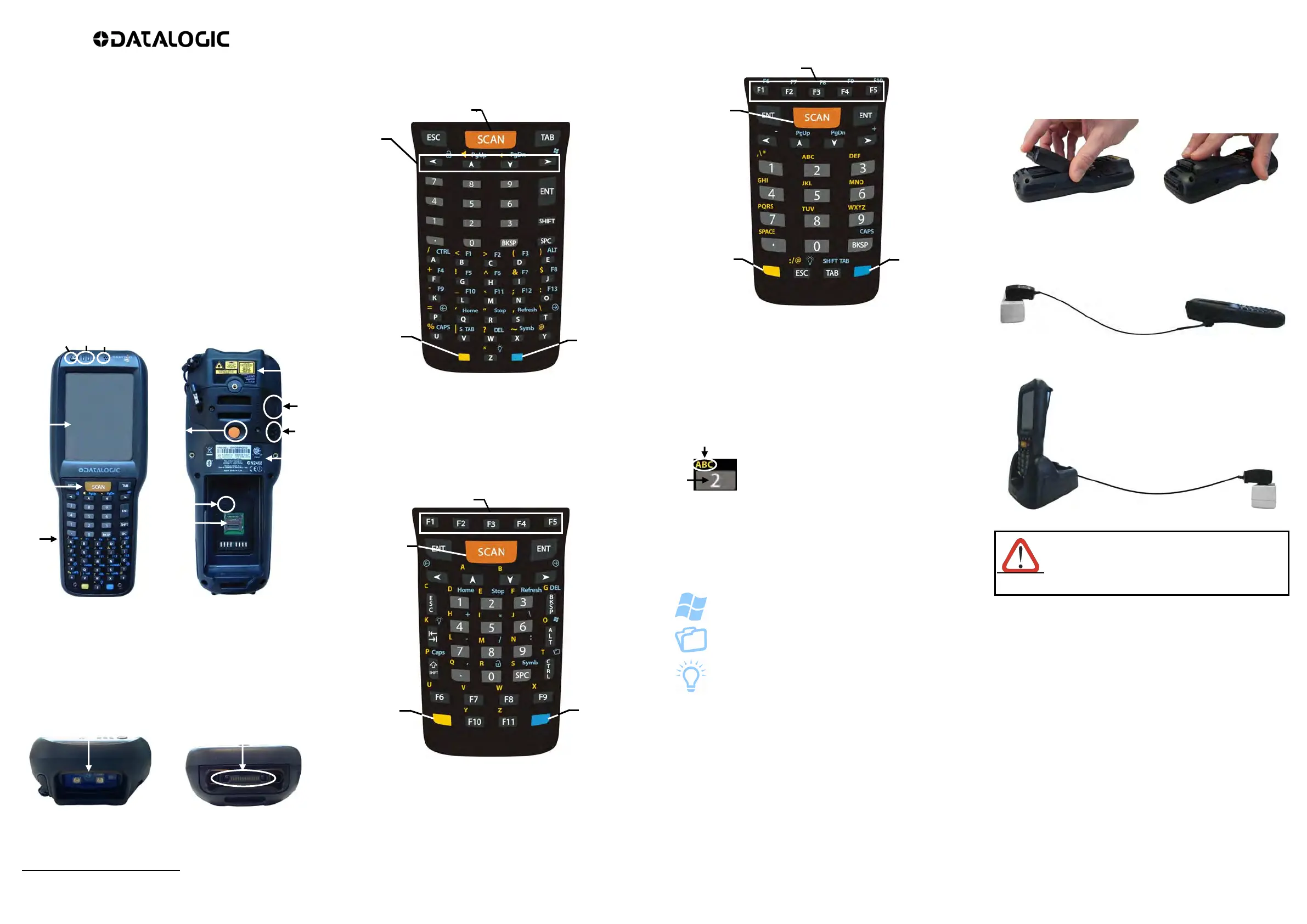

THE TERMINAL
A) Color display
*
B) ON/OFF power key
C) LEDs
D) Receiver speaker
E) Front scan key
F) Keyboard
G) Laser safety label
H) Loudspeaker
I) Micro USB charging port
(Power Only)
J) Product label
K) Reset key (under battery)
L) MicroSD card slot (under
battery)
M) Trigger button (for use with the
optional pistol trigger)
N) Data capture window O) HandyLink™ connector
(host/device)
822001101
*
Remove protective film cover before use
KEYPADS
Full-alphanumeric Keypad (50 Keys)
1. Navigation Keys
2. Scan Key:
3. Yellow Modifier
4. Blue Modifier
Alphanumeric Keypad (38 Keys)
1. Navigation Keys
2. Scan Key:
3. Yellow Modifier
4. Blue Modifier
Numeric Keypad (28 Keys)
1. Navigation Keys
2. Scan Key:
3. Yellow Modifier
4. Blue Modifier
Multitap Function
In the numeric keypad the number keys (key 0 excluded) and the ESC
key share the following behavior scheme:
A. Function of the key when directly pressed.
B. Modified by the Yellow key, repeated
presses cycle through the letters shown on
the keyboard overlay for each key. The
letter is entered if you wait for a short
timeout.
Special Function Icons
ICON FUNCTION
After a Blue modifier key press, the Start menu key opens the
Start menu.
After a Blue modifier key press, the File Manager key opens
the file manager.
After a Blue modifier key press, the Backlight key turns the
backlight on and off.
GETTING STARTED
Insert the Battery
Insert the battery's alignment lugs into the recesses, then press firmly
until the battery latch clicks twice:
Charge the Battery
With Micro-USB rapid charger
With Single Slot Dock
Don’t insert the wall charger into the micro-USB port
when the Skorpio X3 is inserted into the dock.
CAUTION
A
E
F
D
B
C
G
H
I
J
L
K
M
N
O
1
2
3
4
1
2
1
4
3
1
3
4
2
A
B

Datalogic Skorpio X3 Specifications

General

Display diagonal	3.2 \
Display resolution	240 x 320 pixels
Display number of colors	-
Flash memory	0.512 GB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	microSD (TransFlash), microSDHC
Processor family	PXA 310
Processor frequency	0.624 GHz
GPS (satellite)	No
Operating system installed	Windows Embedded CE 6.0
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Security algorithms	CCX v4
Interface	USB 1.1, RS-232, micro USB
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Battery capacity	3000 mAh
Product color	Black
Keypad number of keys	38

Weight and Dimensions

Depth	156 mm
Width	76 mm
Height	193 mm
Weight	482 g
