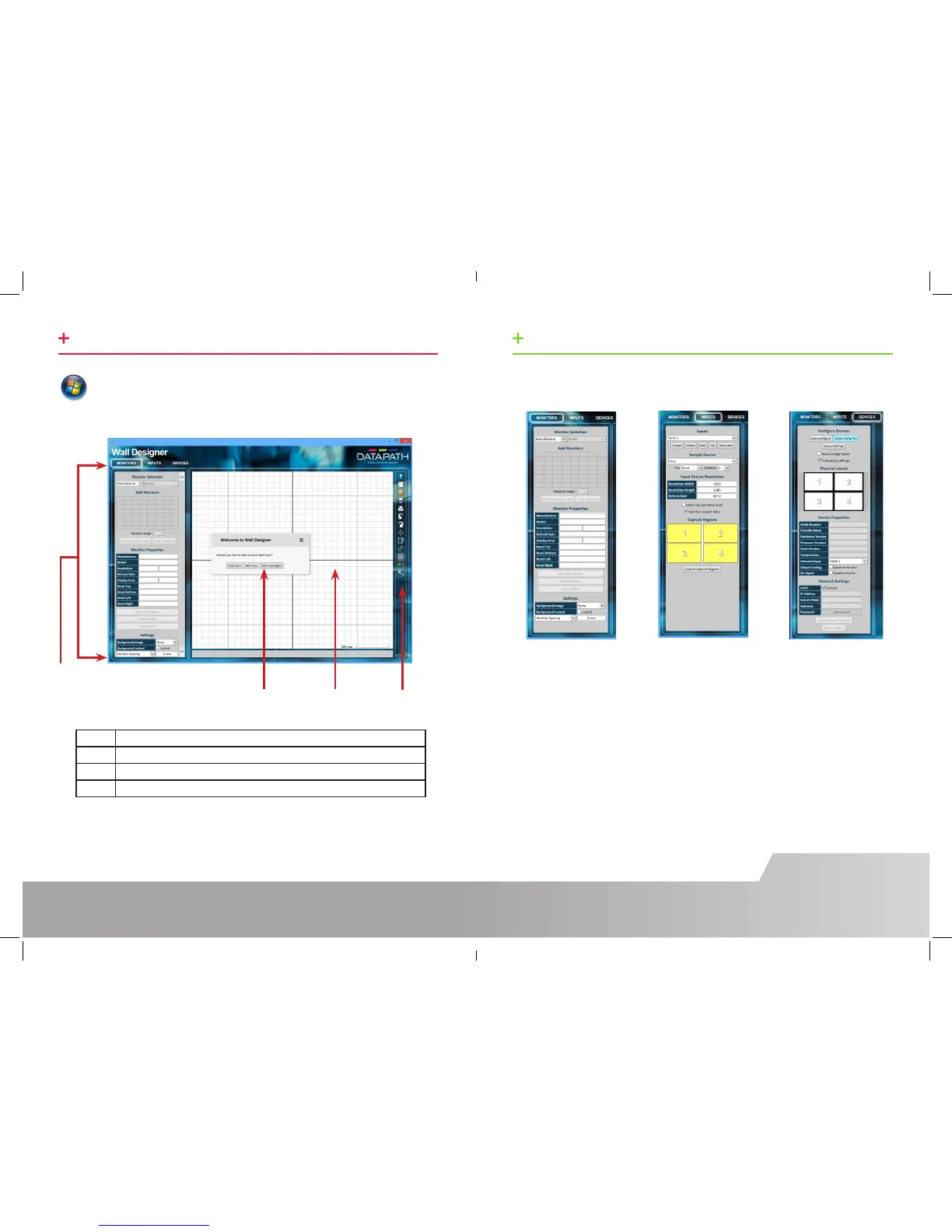

STEP 8 OPERATION MODES
Select the monitor
manufacturer from the drop
down list on the left, then
select the model.
Choose the number of
monitors by clicking and
dragging in the Add
Monitors grid.
Select a background to
enhance the Virtual Canvas
Click Add Monitors to Wall
then open the Inputs tab
Set up your input sources to
be displayed on your
monitors. Click on the
Create button and select a
sample source for a
preview of what the
display wall will look like.
Congure hardware devices
by clicking on
Auto-congure Fx4. Once
you are satised with the
conguration, right click on
the virtual device in the main
window and associate it with
the physical device
connected to your computer
or on your network.
To complete the device
conguration, click on the
Apply Settings button.
Monitors Inputs Devices
STEP 7 WALL DESIGNER
Start | All Programs | Wall Designer |
When Wall Designer is opened, the following dialogue is displayed:
1
2 3 4
1 Operation Modes: Select monitors, inputs and congure devices
2 Quick Tour Dialogue
3 Virtual Canvas
4 Toolbar
It is highly recommended that when using Wall Designer for the rst time, all users
take the Quick Start Tour.
