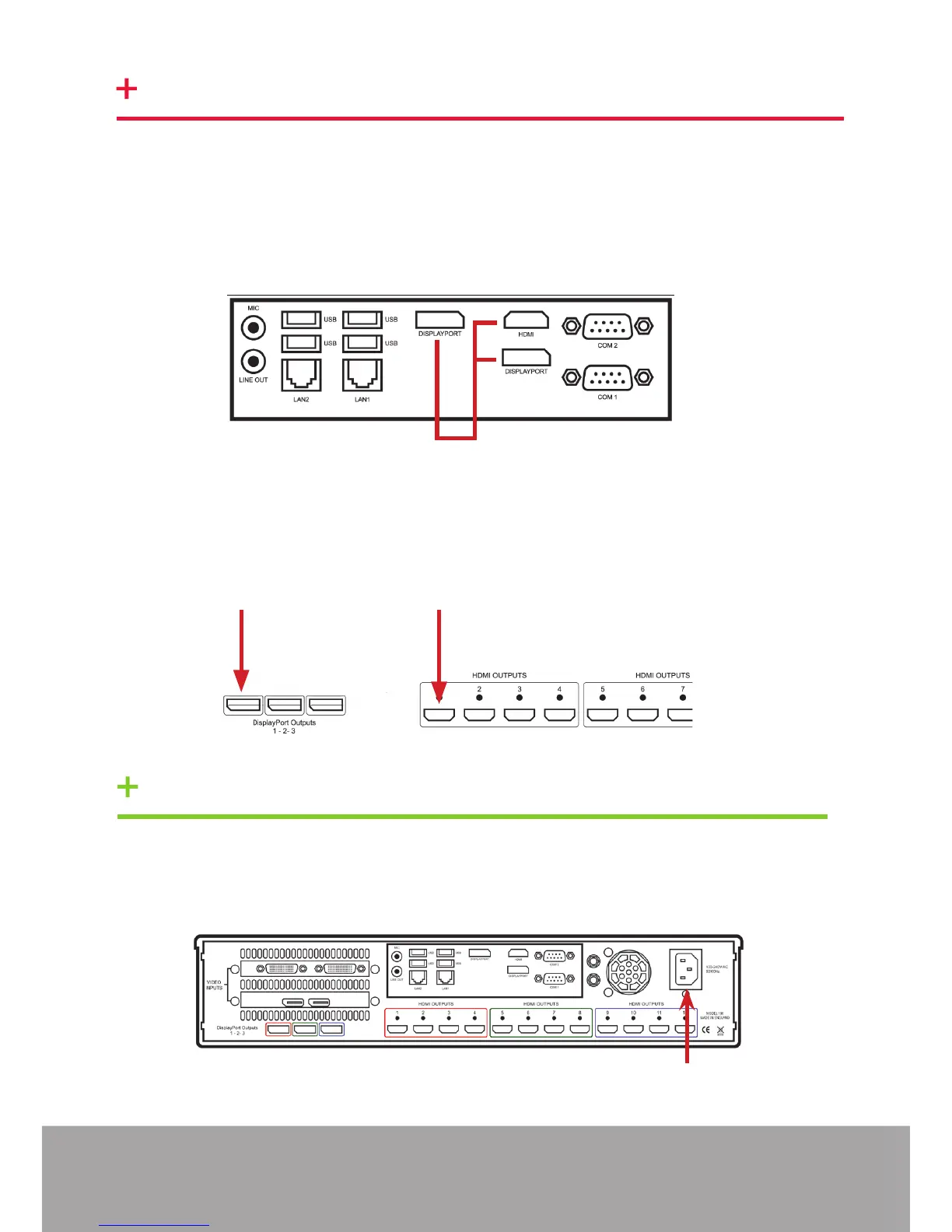

Your iolite 12i is factory congured to use a control screen connected to the system
internal graphics device. Connect the control screen to one of the two DisplayPorts
or the single HDMI connector on the motherboard panel on the rear of the iolite
12i. A control screen is initially required to set up the system including the operating
system (Windows 10).
If a control screen is unavailable, connect a single video wall display into either the
DisplayPort 1 or HDMI 1 output connector on the rear of the iolite 12i.
Connect the power cable into the rear of the iolite 12i (1) then plug into a mains
supply.
1
DisplayPort 1 HDMI 1
Control Screen connections
STEP 4 CONNECTING A CONTROL SCREEN
STEP 5 POWER UP THE SYSTEM
