Datatool EVO PLUS - Connector Harness Pin Functions; Pin 1: LED (Grey); Pin 2: LED (Orange); Pin 3: Engine common (White)

14/02/2023, 21:25
datatool evo install guide - Datatool | Motorcycle Security | Motorcycle Tracking
https://www.datatool.co.uk/datatool-evo-install-guide/
17/20

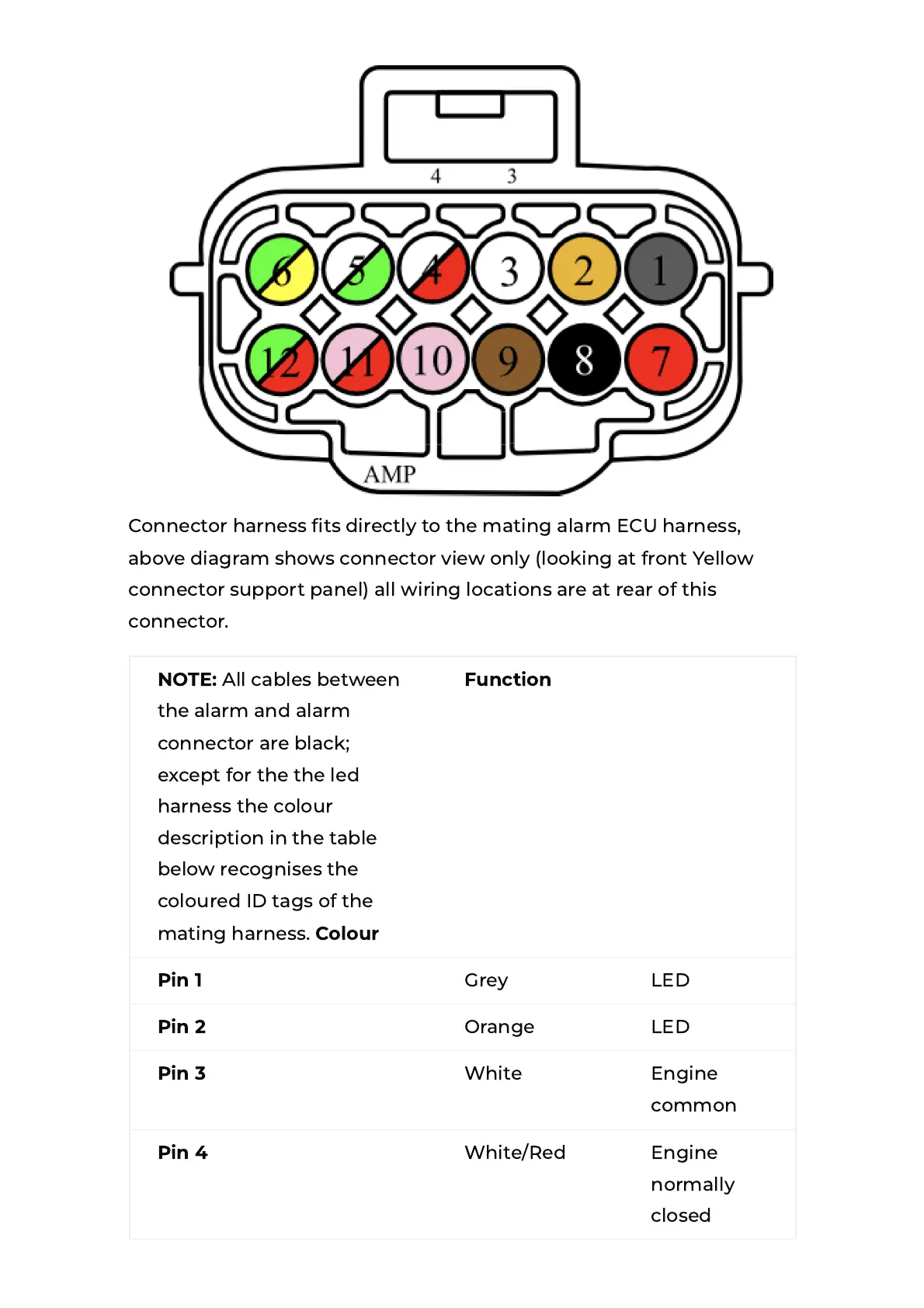

Connector harness ts directly to the mating alarm ECU harness,
above diagram shows connector view only (looking at front Yellow
connector support panel) all wiring locations are at rear of this
connector.
NOTE: All cables between
the alarm and alarm
connector are black;
except for the the led
harness the colour
description in the table
below recognises the
coloured ID tags of the
mating harness. Colour
Function
Pin 1 Grey LED
Pin 2 Orange LED
Pin 3 White Engine
common
Pin 4 White/Red Engine
normally
closed
