Datatool EVO PLUS - Pin 5: Engine normally open (White;Green); Pin 6: Aux trigger wire (Negative Output) (Green;Yellow); Pin 7: Positive (Red); Pin 8: Ground & seat switch (Black)

14/02/2023, 21:25
datatool evo install guide - Datatool | Motorcycle Security | Motorcycle Tracking
https://www.datatool.co.uk/datatool-evo-install-guide/
18/20

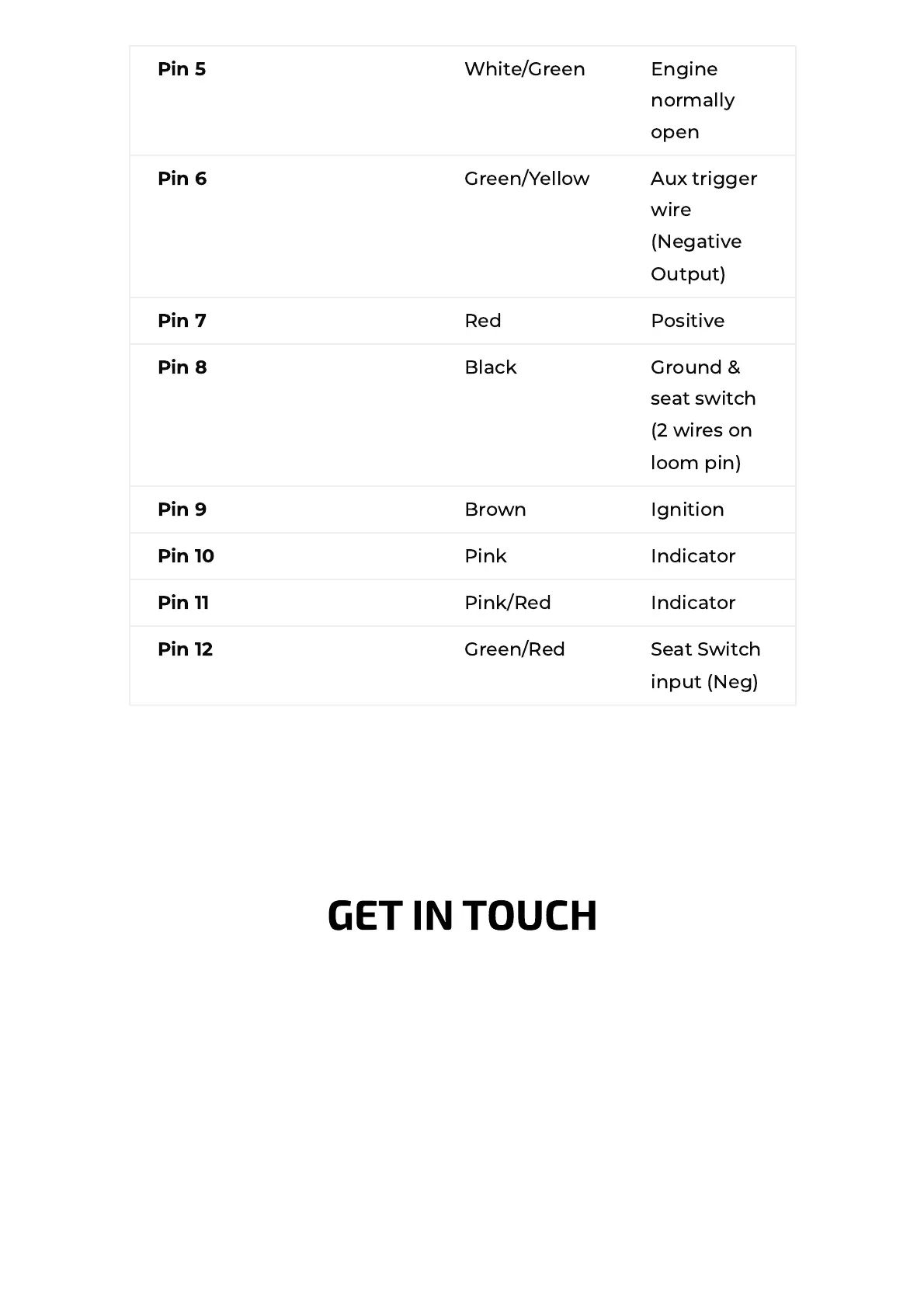

Pin 5 White/Green Engine
normally
open
Pin 6 Green/Yellow Aux trigger
wire
(Negative
Output)
Pin 7 Red Positive
Pin 8 Black Ground &
seat switch
(2 wires on
loom pin)
Pin 9 Brown Ignition
Pin 10 Pink Indicator
Pin 11 Pink/Red Indicator
Pin 12 Green/Red Seat Switch
input (Neg)
