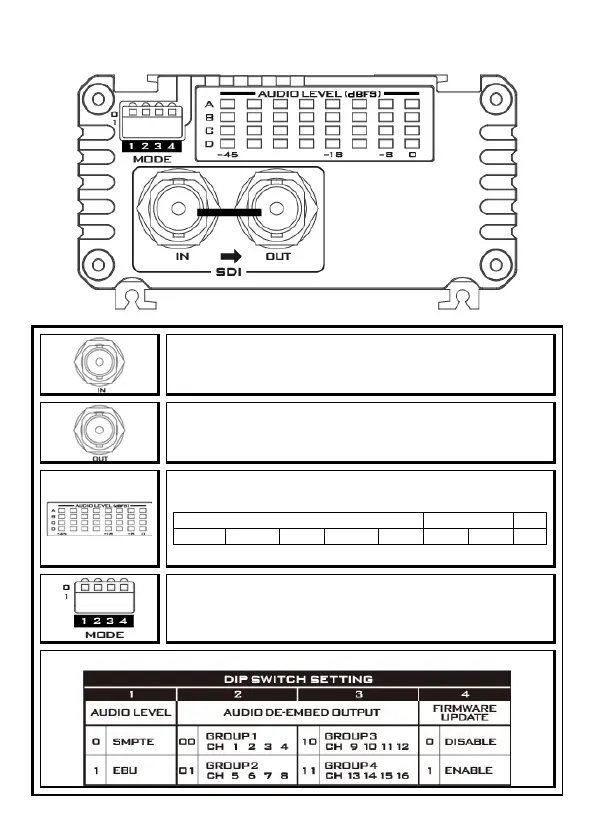

Rear Panel
SDI IN
SDI input for video and audio
SDI OUT
Re-clocked Video and Audio output from SDI input
Audio level indicator display
Indications of current audio level
Green
Yellow
Red
-45~-40
-39~-35
-34~-29
-28~-24
-23~-18
-17~-13
-12~-8
-7~0
(Unit : dBFS)
4 PIN DIP Switch
Audio level adjustment
4 PIN DIP Switch Configuration
