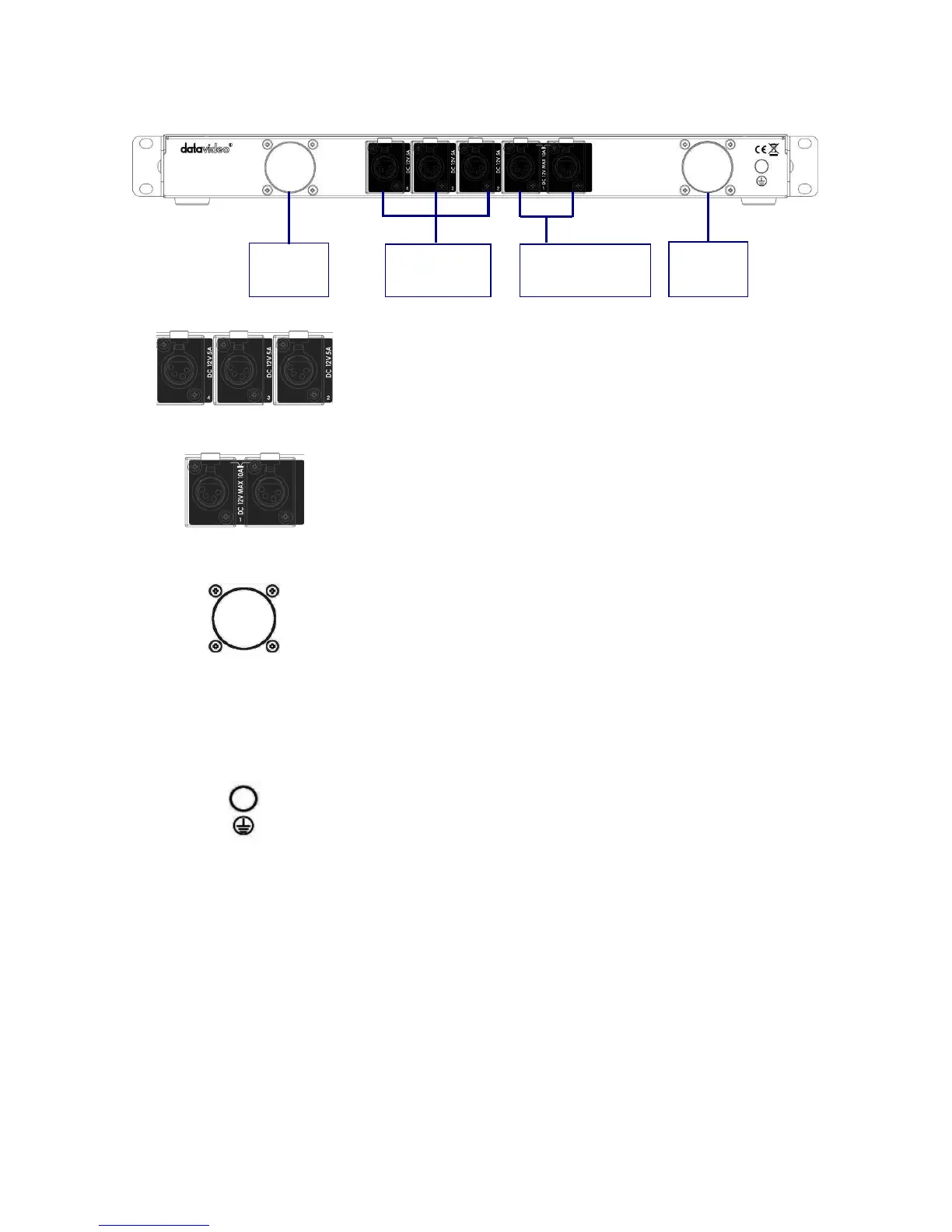

Rear Panel
DC Out 12V 5A
3 x 12V 5A DC Output via XLR In-Line Socket
DC Out 12V 10A
2 x MAX 12V 10A DC Output via XLR In-Line Socket
Cooling Fan
The PD-4A has two built-in cooling fans; please ensure that
the two fans are not blocked and the airflow is available.
Note: Fan starts when internal ambient temperature
reaches 50
℃.
Ground Terminal
When connecting this unit to any other component, make
sure that it is properly grounded by connecting this terminal
to an appropriate point. When connecting, use the socket
and be sure to use wire with a cross-sectional area of at least
1.0 mm
2
.
Cooling
Fan
DC12V / 10A MAX
XLR Output
DC 12V / 5A
XLR Output
Cooling
Fan
