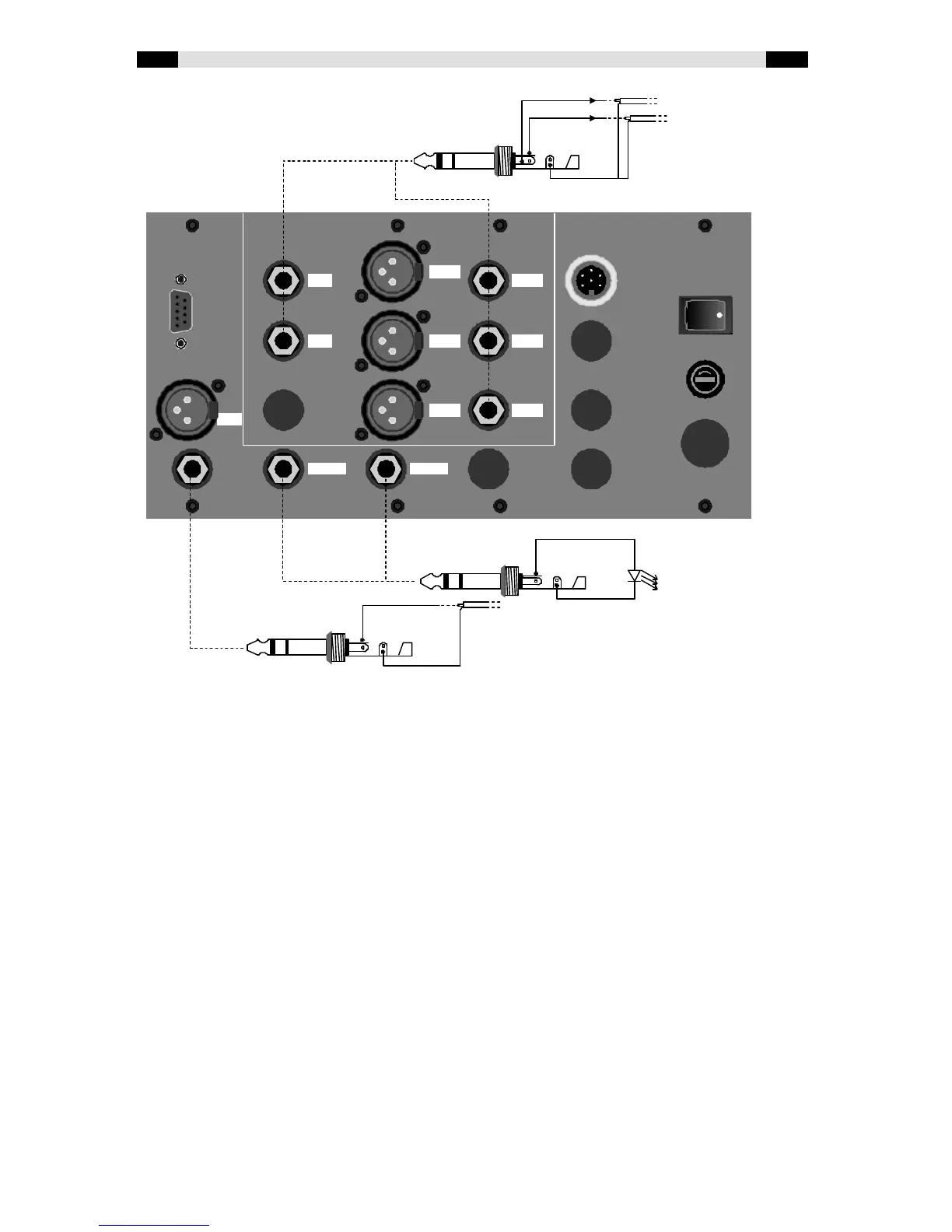

Dateq BCS50 - BCS58 Master Specific I;O

EN DATEQ BCS50 user manual BCS58 master 31
TOP CONSOLE
Connector for the meterbridge
C.R. Output level: 0dBm adjustable, Impedance: 600 Ohm, XLR-M
Connector for the control room amplifier.
DCF-ANT
When a BCS121 DCF-clock is installed the DCF-aerial must be connected here.
AUX Output level: 0dBm adjustable, Impedance: 600 Ohm, 6.3mm stereo jack
Auxiliary output.
AUD Output level: 0dBm adjustable, Impedance: 600 Ohm, 6.3mm stereo jack
Audition output.
ON AIR 1 + ON AIR 2 12Vdc, 1kOhm logical input, 6.3mm stereo jack
With a solid-state relay an external ON-AIR indicator can be connected here (for example
the DATEQ OA-1). A 12Vdc control voltage is applied between the tip and the shield when
the ON-AIR output is active. The maximum current is 12mA.
PGM-L, PGM-R and MONO Output level: +6dBm, Impedance: 600 Ohm, XLR-M
Balanced program outputs. They can be used to connect a cable-modulator or the main
transmitter. The mono output is the left and the right signal combined.
PGM-1, PGM-2 and PGM-3 Output level: 0dBm, Impedance: 600 Ohm, 6.3mm stereo jack
Additional unbalanced program outputs. These can be used to connect amplifiers,
recorders etc. inside the studio.
S= gnd
R= R
T= L
S= gnd
R= R
T= L
S= gnd
R= R
T= L
S= gnd
R= R
T= L
S= gnd
R= R
T= L
AUX
AUD
PGM-1
PGM-3
PGM-2PGM-L
MONO
Power
230VAC
50/ 60Hz
Fuse 2 Amp. (T)
S= -
R= N.C.
T= +
S= -
R= N.C.
T= +
S= GND
R= n.c.
T= +
ON AIR 2ON AIR 1DCF-ANT
TOP
CONSOLE
C.R.
S= GND
R= R
T= L
OFF ON
WARNING:
Dangerous voltages
inside.
PGM-R
1= gnd
2= +
3= -
1= gnd
2= +
3= -
1= gnd
2= +
3= -
MCA-100
FUSE
ring
tip
gnd
Signal left
Signal right
tip
gnd
ON-AIR lamp
With a solid-state
relay
tip
gnd
To DCF aerial
