Davey DHP90

25

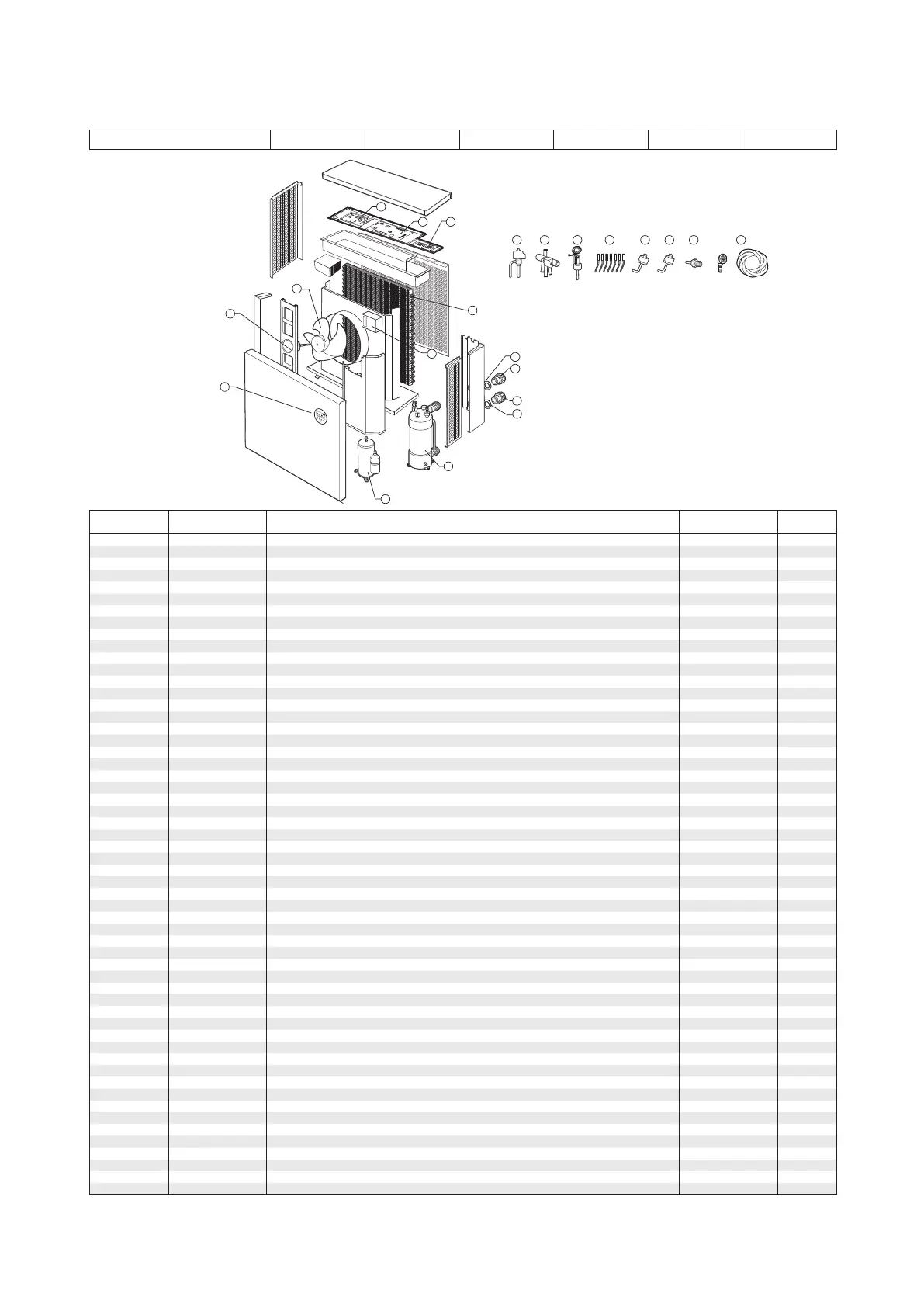

Davey Heat Pump DHP90 DHP130 DHP170 DHP210 DHP280 DHP3503
ITEM PART NO. DESCRIPTION NOTE
QTY
REQ’D
1 403759 DHP130 PC board 1
1 403817 DHP170 PC board 1
1 403818 DHP210 PC board 1
1 16302 DHP280 PC Board 1
1 16303 DHP3503 PC Board 1
1 403758 DHP90 PC board 1
2 403760 Round touch controller 1
3 403762 Inverter board DHP130 1
3 403819 Inverter board DHP170 1
3 403820 Inverter board DHP210 1
3 16306 Inverter Board DHP280 1
3 16307 Inverter Board DHP3503 1
3 403761 Inverter board DHP90 1
5 403764 Reactor DHP130 1
5 403763 Reactor DHP90 1
8 403766 Power  lter board DHP130 1
8 403821 Power  lter board DHP210 1
8 16309 Power Filter Board DHP280 1
8 16310 Power Filter Board DHP3503 1
8 403765 Power  lter board DHP90 1
10 403767 Electronic expansion valve 1
11 403768 4-way valve 1
12 403769 Water fl ow switch 1
13 403770 Fan motor DHP90/DHP130 1
13 403822 Fan motor DHP170/DHP210 1
13 16311 Fan Motor DHP280 1
13 16312 Fan Motor DHP3503 1
14 403771 Sensors (full set) 1
16 16294 R32 Compressor DHP130 1
16 16296 R32 Compressor DHP170 210 1
16 16304 R32 Compressor DHP280 1
16 16305 R32 Compressor DHP3503 1
16 16292 R32 Compressor DHP90 1
17 16295 Titanium heat exchanger DHP130 1
17 16297 Titanium heat exchanger DHP170 1
17 16298 Titanium heat exchanger DHP210 1
17 16315 Titanium Heat Exchanger DHP280 1
17 16316 Titanium Heat Exchanger DHP3503 1
17 16293 Titanium heat exchanger DHP90 1
22 16299 Low pressure valve 1
23 403772 Union set 40mm (nut, tail, oring) 1
24 403773 Union gasket 1
25 403774 Fan blade DHP90/DHP130 1
25 403823 Fan blade DHP170 1
25 403824 Fan blade DHP210 1
25 16317 Fan Blade DHP280 1
25 16318 Fan Blade DHP3503 1
26 403775 Drainage kit 1
- 16308 Contactor DHP3503 1
- 403777 Screw kit for case (set) 1
- 403776 Screw kit for electrical box (set) 1
26 403775 Drainage kit 1
26 403775 Drainage kit 1
26 403775 Drainage kit 1
- 403776 Screw kit for electrical box (set) 1
- 403777 Screw kit for case (set) 1
