7
DIMENSIONS (mm)
MODEL DHP90 DHP130 DHP170 DHP210 DHP280 DHP3503
DHP90 890 1060 1314
DHP130 430 512
DHP170 657 957
DHP210 53 57 66 72 91 135
* Above data is subject to modication without notice.
NOTE: The picture above is the specication diagram of the pool heat pump, for technician’s installation and
layout reference only. The product is subject to adjustment periodically for improvement without further notice.
4. INSTALLATION GUIDANCE
4.1 Installation reminder
The installation of this product should be carried out by a person knowledgeable in swimming pool plumbing
requirements following the installation instructions provided in this manual.
To get the best results from your Davey heat pump, its location is critical. The Davey heat pump takes hot air
from its surroundings and transfers this heat through its heat exchanger, to the pool water.
Your Davey heat pump should be installed in a well ventilated area.
WARNING: Improper installation, adjustment, service, maintenance or use can cause re,
electrical shock or other conditions which may cause injury or property damage. Consult
a qualied technician or service agency for information or assistance. All service calls
under warranty should be authorized by Davey Water Products.
The installation of any pipework should be kept to a minimum
Pipe work should be protected from physical damage and shall not be installed in an
unventilated place.
The heat pump should not be installed indoor.
Any mechanical connections need to be kept accessible for maintenance purposes.

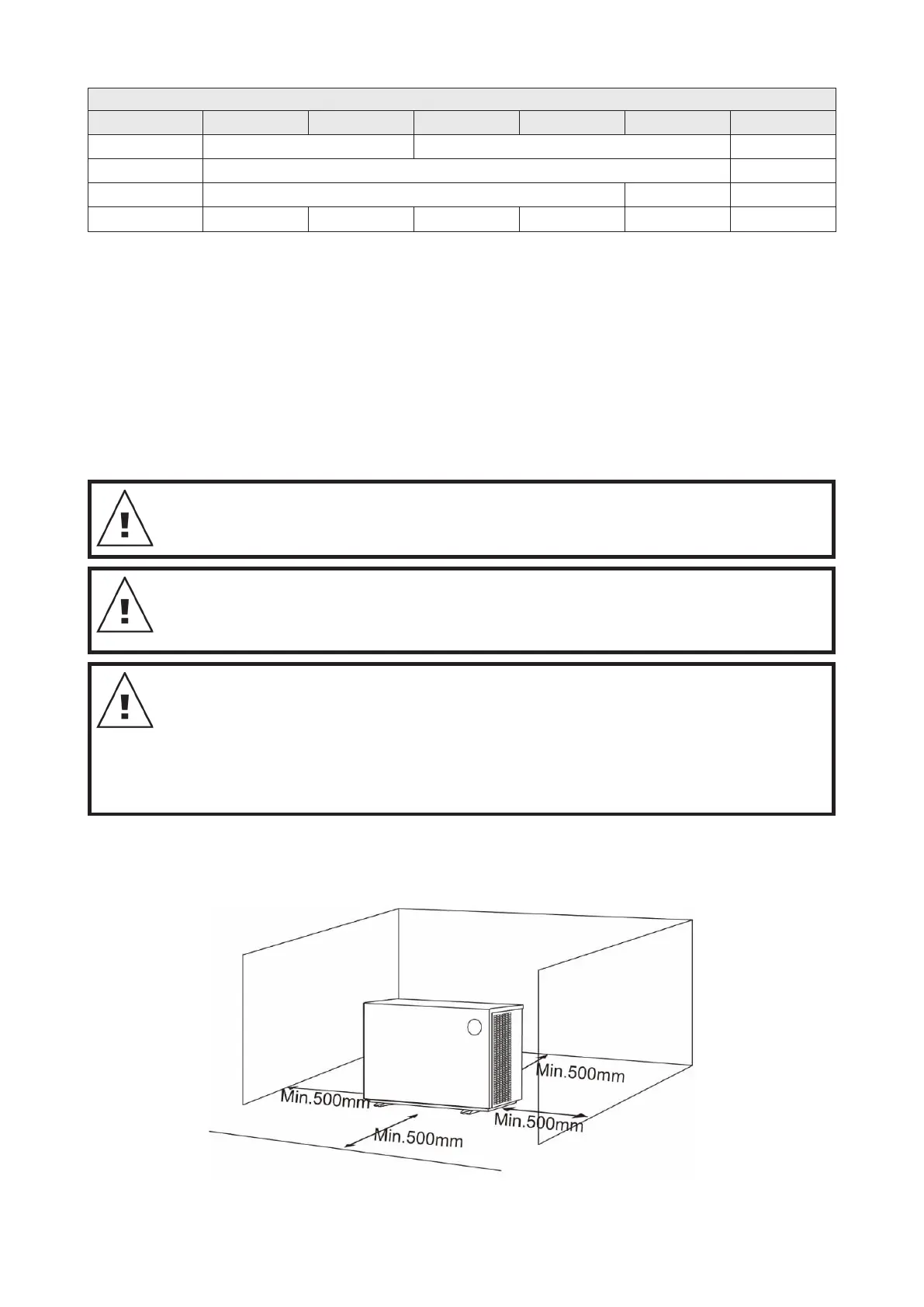

The heat pump requires 50cm clear space on each side to be clear from obstructions for
ventilation purposes.
The heat pump draws air in through each side of the heat pump and out through the rear.
Please consider this during installation.
For installations up to 17kW
