DAVID PRO-DX - DAVID PRO-DX Schematics and Parts List; Bag Housing and Handle Parts

13
DAVID® PRO-DX SCHEMATIC AND PARTS LIST
#90501DV DAVID® PRO-DX Arctic White/Gray Black Machine
Pos. Part # Description
1 5645AM Handle complete, black/dark red
2 5295ER Handle grip (incl. pos. 7+10)
3 5359GS Grommet, gray black
4 5450DG Cable
5 05113 Switch
6 5160DR Switch cap, dark red
7 5161GS Switch cap holder, gray black
8 5162 Cable clamp
9 0103 Screw C 3.9x16 DIN 7981
10 5253UL Antistatic wire
11 5298ER Handle cable, 2-wire
12 0129 Screw M 4x12
13 5187 Handle tube
14 0102 Screw F 3.9x13 DIN 7981
15 5040SB Hose, cpl., silver
16 5045GS Cleaning wand w/out hose, gray black
17 5707WE Cover, arctic white
18 5319 Bag holder spring
19 5706GS Cover release, gray black
20 5091 Safety catch spring
21 5360 Safety catch
22 5324 Bag housing cpl. (incl. pos. 20+21)
23 5774DV Front cover, DAVID PRO-DX, cpl., arctic white
24 5826N8 Filter bag
25 5036JE Pre-motor microfilter
26 5380GS Internal cover cpl., gray black
(incl. pos. 40+41)
27 1073 Clamp
28 5208 Filter safety catch
29 5210 Return spring
30 5164 Cable clamp
31 5722GS Bag housing locking catch, gray black
32 1859GS Handle catch, gray black
33 0161 Clip 4, DIN 6799
34 5721WE Carrying handle, arctic white
35 5703WE Cable hook, arctic white
36 5146 Stop spring
37 5424ER Retaining ring, gray black
38 5299ER Internal cable
39 5266 Cable clamp
40 5842 Seal
41 5289 Seal
43 1823GS Attachment clip, gray black
44 5084 Spring for locking rod
45 5163 Seal
46 5083 Locking rod
47 5702WE Bag housing bumper base, arctic white
48 5763WE Bag housing, cpl., arctic white
49 1092GS Crevice nozzle, gray black
50 1491GS Upholstery nozzle, gray black
51 5460GS Mounting clip with screw, gray black
52 1387GS Dusting brush, gray black

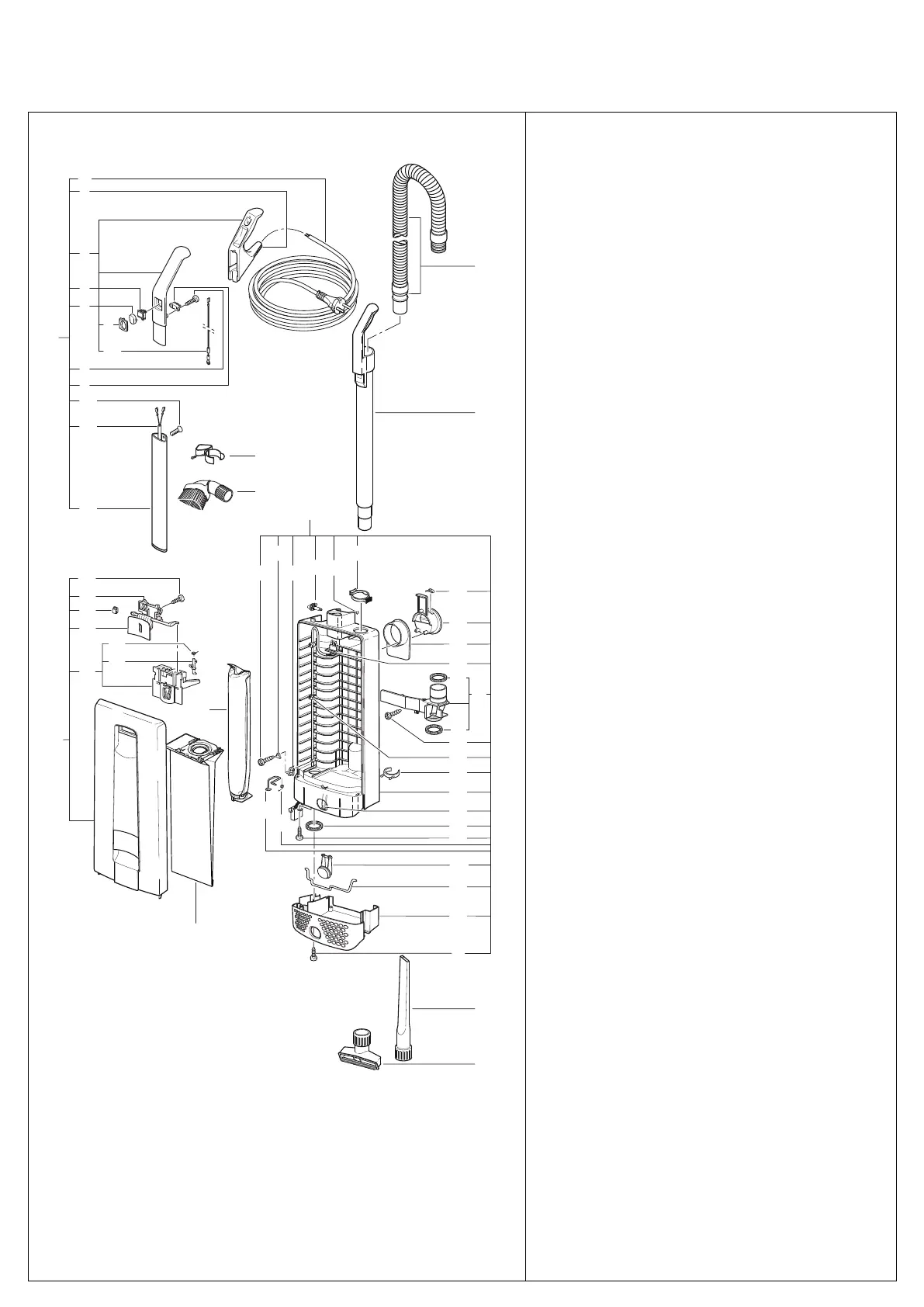

Bag Housing and Handle
15
16
49
9
35
14
26
40
50
1
10
23
24
7
2
3
5
6
9
8
13
25
12
11
4
22
21
19
18
20
17
14
34
36
43
47
45
14
46
47
39
31
27
48
37
29
28
30
41
14
44
38
32
33
52
51
#90501DV DAVID® PRO-DX Arctic White/Gray Black
