DAVID PRO-DX - Power Head Parts

14

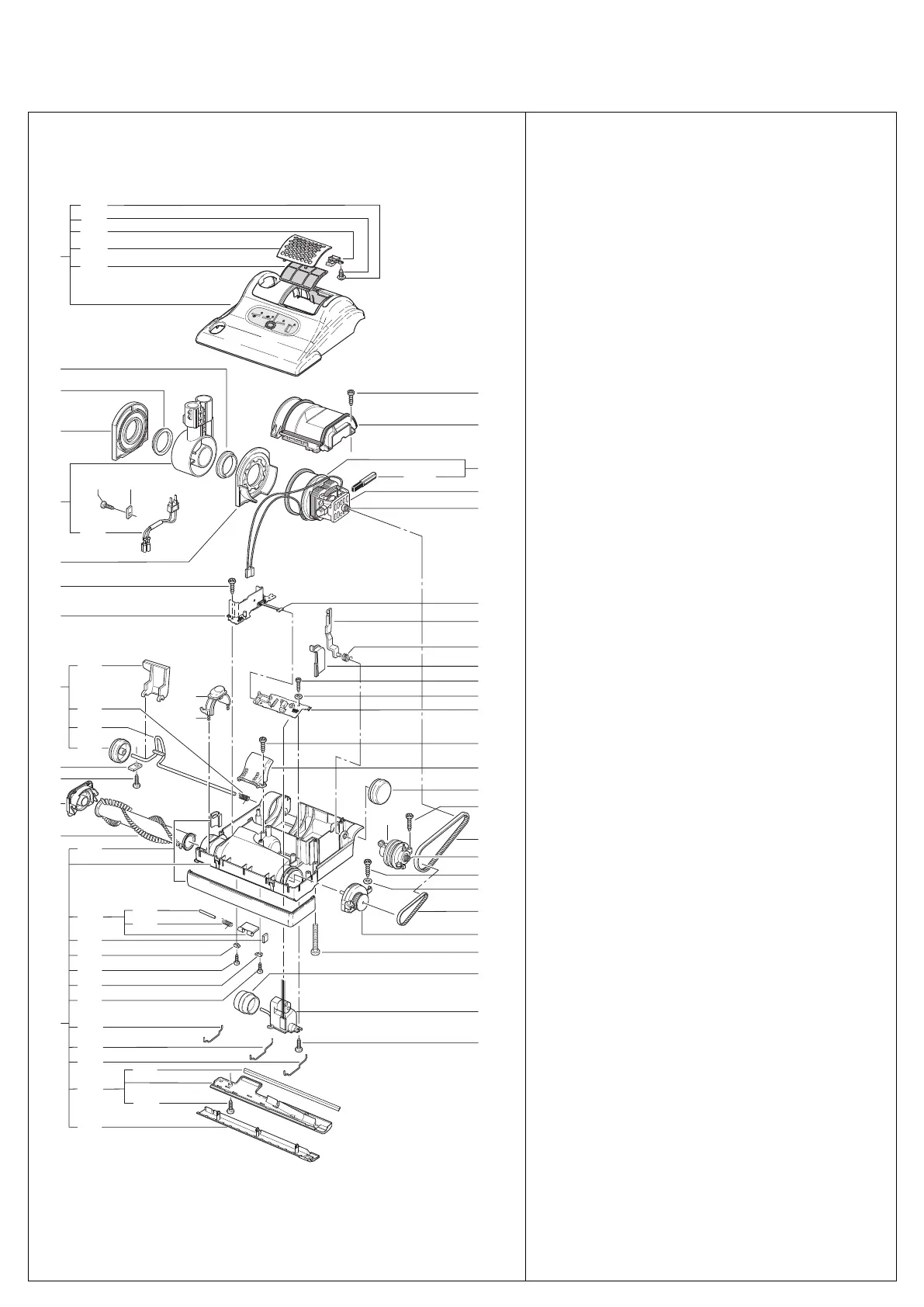

DAVID® PRO-DX SCHEMATIC AND PARTS LIST
#90501DV DAVID® PRO-DX Arctic White/Gray Black Machine
Pos. Part # Description
100 50799DV Power head cover, DAVID PRO-DX, cpl.,
arctic white
101 5712WE Exhaust filter catch, arctic white
102 5143 Exhaust filter
103 5711WE Exhaust filter cover, arctic white
104 5729HG Swivel neck assembly, (incl. pos. 105)
105 5495UL Male contact holder
106 0102 Screw F 3.9 x 13 DIN 7981
107 2494 Cable clamp
108 5101 Swivel neck bearing r. h.
109 5480 Swivel neck support r. h.
110 5479 Swivel neck support l. h.
111 5717 Swivel neck bearing l. h.
112 5848ER PCB Power supply
113 5205/1 Ribbon cable
114 5787WE Brush roller release, arctic white
115 5103 Spring
116 5051GS Axle assembly, cpl.
117 5059OR Foot pedal, orange
118 5053 Axle
119 5819GS Wheel
120 2010 Axle spring
121 2014 Axle clamp
122 5031WE Bearing block r.h., gray black/white
123 5010JE Brush roller 12”
124 5005GS Bumper set
125 5155GS Rubbing plate
126 5172OR Access door (incl. pos. 127 + 128)
127 5303 Access door axle
128 5304 Access door spring
129 5154GS Hinge
130 0100 Screw C 2.9x9.5 DIN 7981
131 0176 Screw AM 4x30 DIN 7985 TL
132 5174GS Pile adjustment wheel
133 5060ER Servo motor with gear box
134 5411GS Front bottom plate, cpl.
135 5412GS Rear bottom plate, cpl., (incl. pos. 136+139)
136 5400-1 Sealing strip
137 5401 Wire tie, short
138 5402 Wire tie, long
139 0197 Screw M 4x12
140 5482GS Chassis, cpl.
141 5468 Vacuum motor 1300W/120V
05117S Carbon brush set
142 5100 Rubber mounting
143 5462 Motor pulley 2MR
144 5129 Support lever
145 5107-1 Support spring
146 5112SW Motor pulley cover
147 5849ER Computer controller
148 0107 Screw C 2.9x13
149 0143 Washer 3.2 DIN 125
150 5173SW Cover for air channel
151 5464 Sensor, cpl.
152 0104 Screw C 3.9x25 DIN 7981
153 5463 Belt 2MR-310-6
154 5110 Belt 219 3M HTDII-6
155 5766HG Bearing block l.h., cpl.
156 0103 Screw C 3.9x16 DIN 7981
157 0141 Locking washer
158 5018UL Motor cover
159 5117/1 Sensor pulley
160 0175 Screw 2.9x6.5 DIN 7981
161 0141 Locking washer
109
108
111
110
104
106
122
123
106
121
116
119
115
114
112
107
105
151
106
154
131
106
158
141
142
143
113
144
148
149
147
106
106
150
119
153
156
157
155
152
133
159
145
146
141a
132
117
140
134
124
127
126
125
129
130
129
130
128
118
120
136
135
139
137
138
138
D
O
WN
UP
C
H
ECK
BR
U
S
H
C
HE
C
K
BAG
100
161
101
103
102
160
Power Head
#90501DV DAVID® PRO-DX Arctic White/Gray Black
