Assembling the Anemometer
Page 4 Standard and Industrial Anemometer
4.
Install the small end of the other drip ring on the wind cup end of the ane-
mometer control head as shown below.
Note:
The wind cup end of the control head has the smaller of the two stainless steel shafts.
5.
Gently push up the drip ring until it reaches the groove on the control head.
6.
Make sure the lower edge of the drip ring is aligned with the lower edge of
the control head.

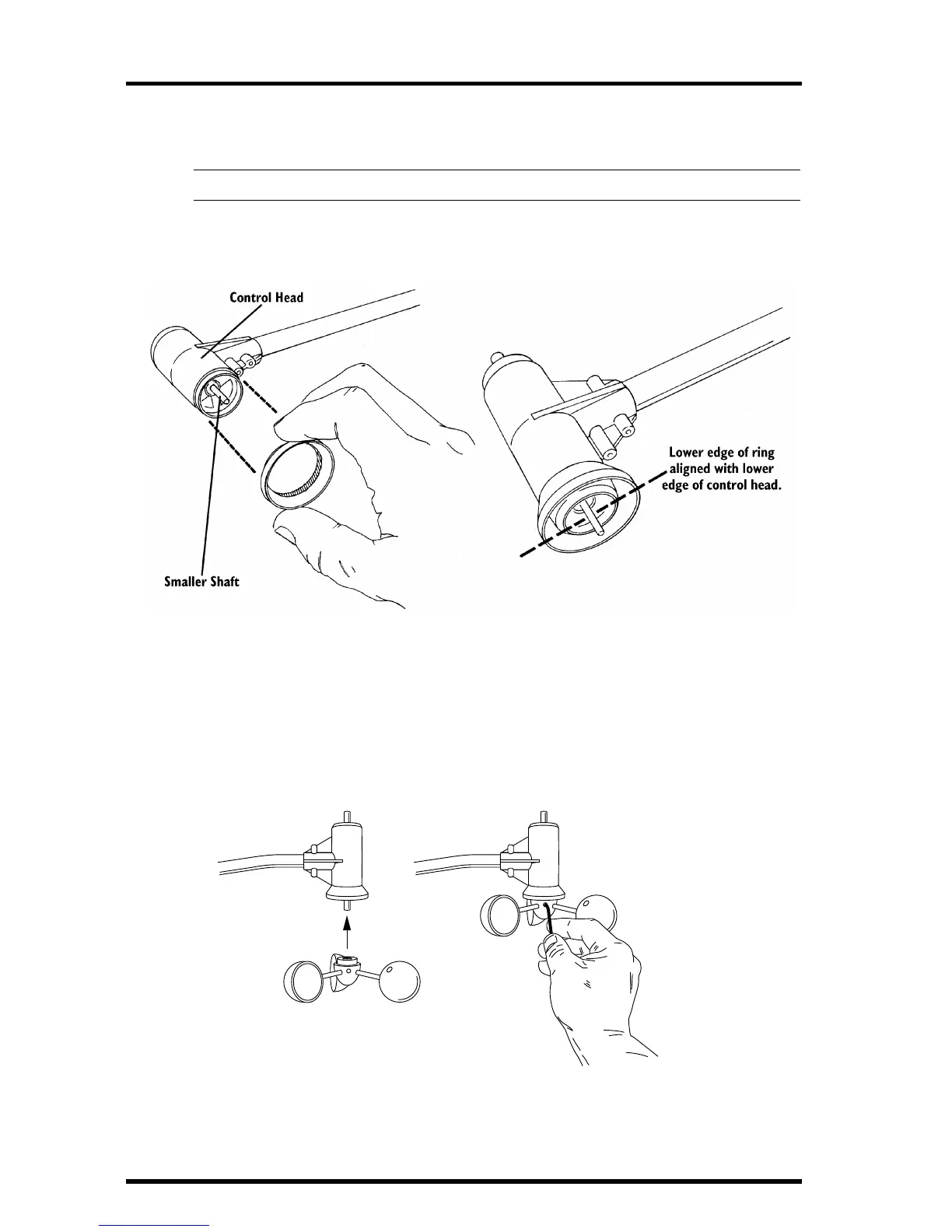

Installing the drip ring onto the anemometer control head
Attaching the Wind Cups
Before installing the anemometer, attach the wind cups. Wait until you have
installed the anemometer before you attach the wind vane.
1.
Push the wind cups onto the smaller of the two stainless steel shafts at the
end of the arm.
Attaching wind cups to the anemometer
2.
Slide the wind cups as far up the shaft as possible.
Push cups onto
stainless steel
shaft
Tighten set screw
with allen wrench
To Next Page
