Console Location
8
Wall Mounting
The console mounts to the wall using two keyholes located on the back of
the case.
To mount the console on a wall:
1. Use a ruler to mark two mounting hole positions on the wall 8 inches
(203 mm) apart.
This is a representation for the mounting hole positions. This template is not true to size.
If installing a standard Vantage Pro2 console with sensor cable running
inside the wall, mount the console over an empty switch box.
2. Use a drill and a 3/32 or 7/64” (2.5 mm) drill bit to drill two pilot holes
for the screws.
3. Using a screwdriver, drive the two #6 x 1” pan head self-threading
screws into the wall. Leave at least 1/8” (3 mm) between the wall the
heads of the screws.
4. If the kickstand has been pulled out from the case, push it back into its
upright and locked position.
5. Guide the two keyholes on the back of the console over the two screw
heads

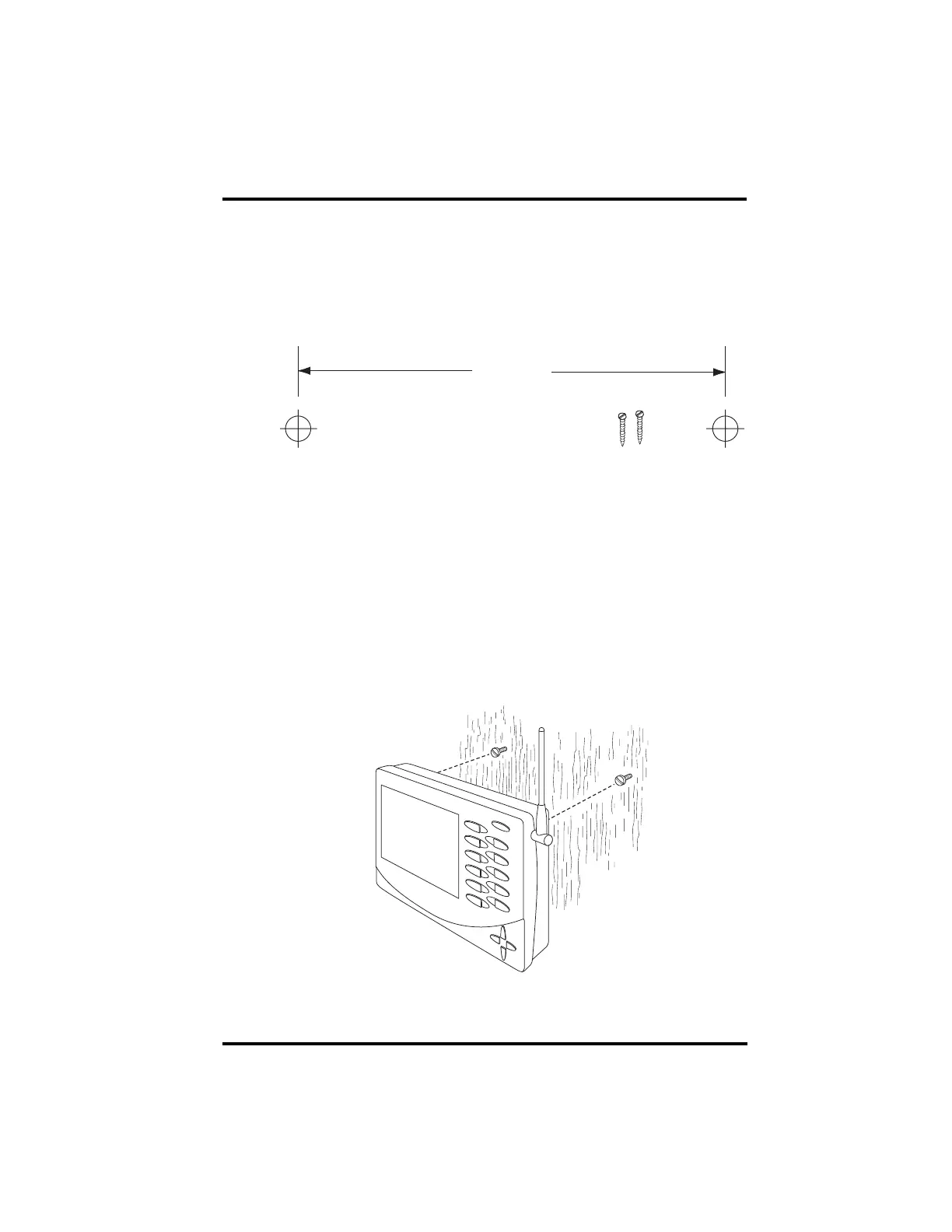

Drill two 3/32" or 7/64" (2.4 to 2.8mm) holes
8" (203mm) apart for the #6 x 1" mounting screws.
8" (203mm)
