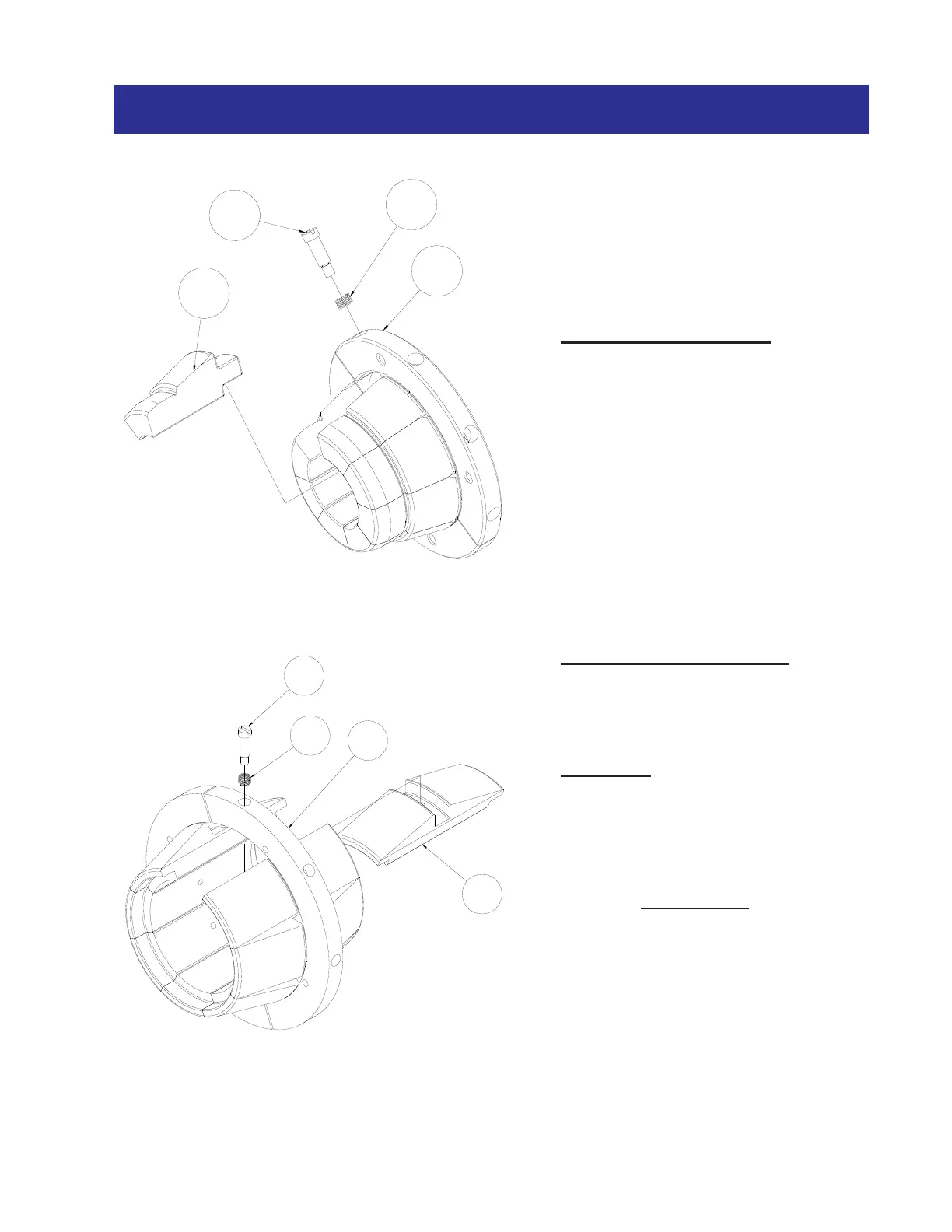

COMPONENT PARTS BREAKDOWN
D100 Standard Series Dies
1) Die Ring 101065-COLOR
2) Die Finger Varies with die set
3) Die Spring LC 022D 01 M NF
4) Die Screw EN84-115
D100 DA (Double Angle Dies
1) Die Ring 101072-COLOR
2) Die Finger Varies with Die Set
3) Die Spring LC 022D 05 M MD
4) Die Screw EN84-115
Not Shown:
DA Cone Insert 100880
DA Top Cone 100881
Color Options
Red
Orange
Yellow
Purple
Green
Blue
Black
Silver
Brown
