D100S-DC QUICK START GUIDE
CALIBRATION CHECK PROCEEDURE
FOLLOW THESE STEPS BEFORE YOU USE YOUR
D100S-DC CRIMPER FOR THE FIRST TIME
CALIBRATION CHECK FOR THE D100S-DC
A HYDRAULIC POWER SOURCE CAPABLE OF
GENERATING 10,000 PSI MUST BE ATTACHED TO THE D100S-
DC CRIMPER.

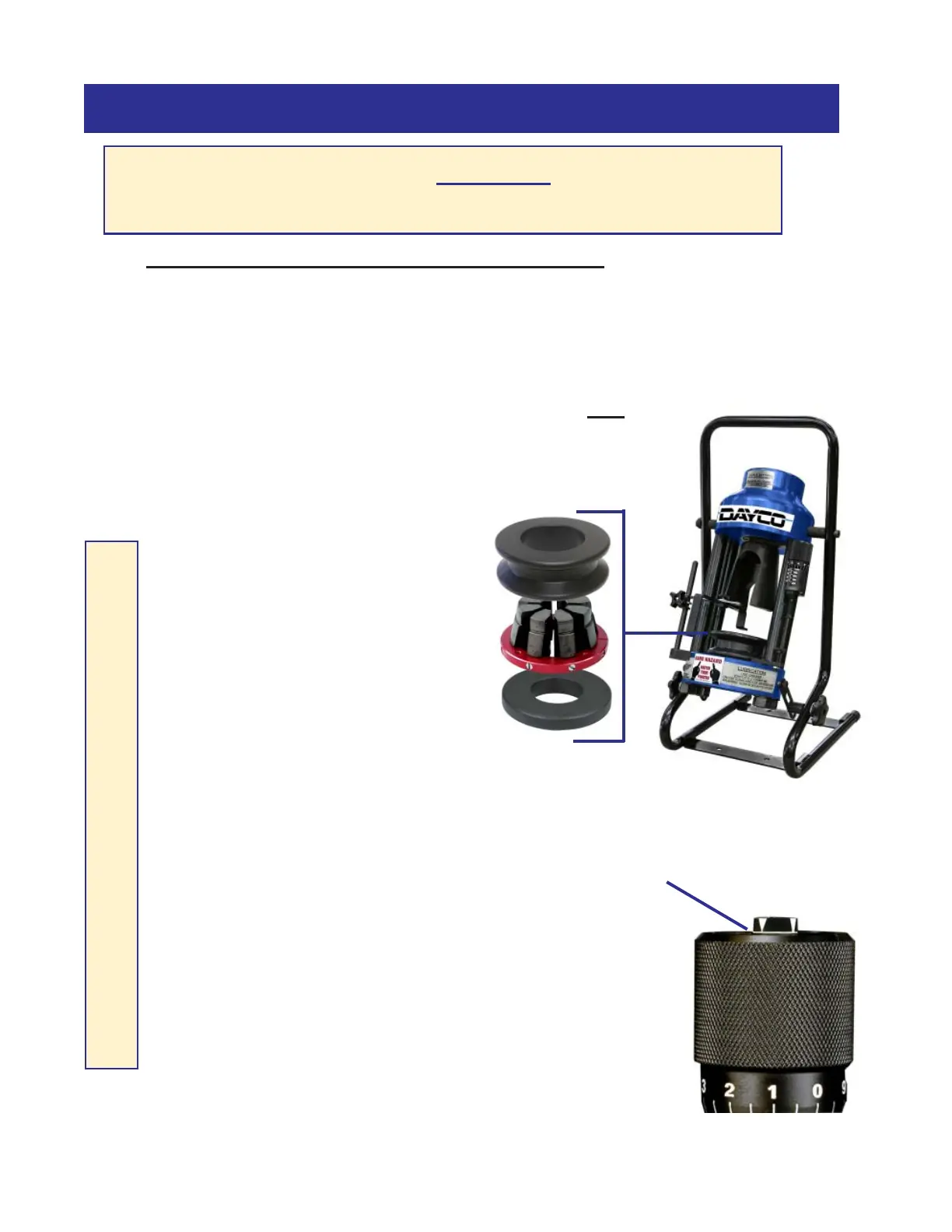

PLACE THE STANDARD PRESSURE PLATE, ANY
STANDARD DIE SET AND THE STANDARD COMPRESSION
RING IN THE BASE OF THE CRIMPER IN THE ORDER
SHOWN.
SLIDE THE PUSHER ONTO THE
STUD OF THE HYDRAULIC RAM.
SET THE MICRO-CRIMP
ADJUSTER AT “95” FOR THE D100S-DC
APPLY ENOUGH PRESSURE TO
THE RAM TO BRING THE DIE SET TO
THE FULLY CLOSED POSITION AND
FULLY SEAT ALL COMPONENTS.
WHEN THE DIE SET IS FULLY CLOSED AND ALL OF
THE COMPONENTS FIRMLY SEATED, THE WHITE LINE OF
THE MICRO-SITE ADJUSTER SHOULD BE JUST VISIBLE AS
SHOWN.
IF THE WHITE LINE DOES NOT APPEAR AS SHOWN
AT THE RIGHT, LENGTHEN OR SHORTEN THE ADJUSTMENT
SCREW AS REQUIRED.
