Measured sound power level
Guaranteed Sound Power level
(According to 2000/14/EC)
93.9 dB(A) K=2.01dB(A)
98 dB(A)
Vibration
(According to EN 836 Annex G)
4.489 m/s²
K=1.5 m/s²
5. ASSEMBLY
5.1 FOLDING HANDLE
1. Fix the lower handlebars into the unit body with a suitable spanner. (Fig. 2A)
2. Lift the two locking levers to release the upper handlebars for folding. (Fig. 2B)
3. Push the locking lever closed to lock the handlebars in the operating position. (Fig. 2B)
4. Adjust the tension by turning the lock nut with a suitable spanner. (Fig. 2C)

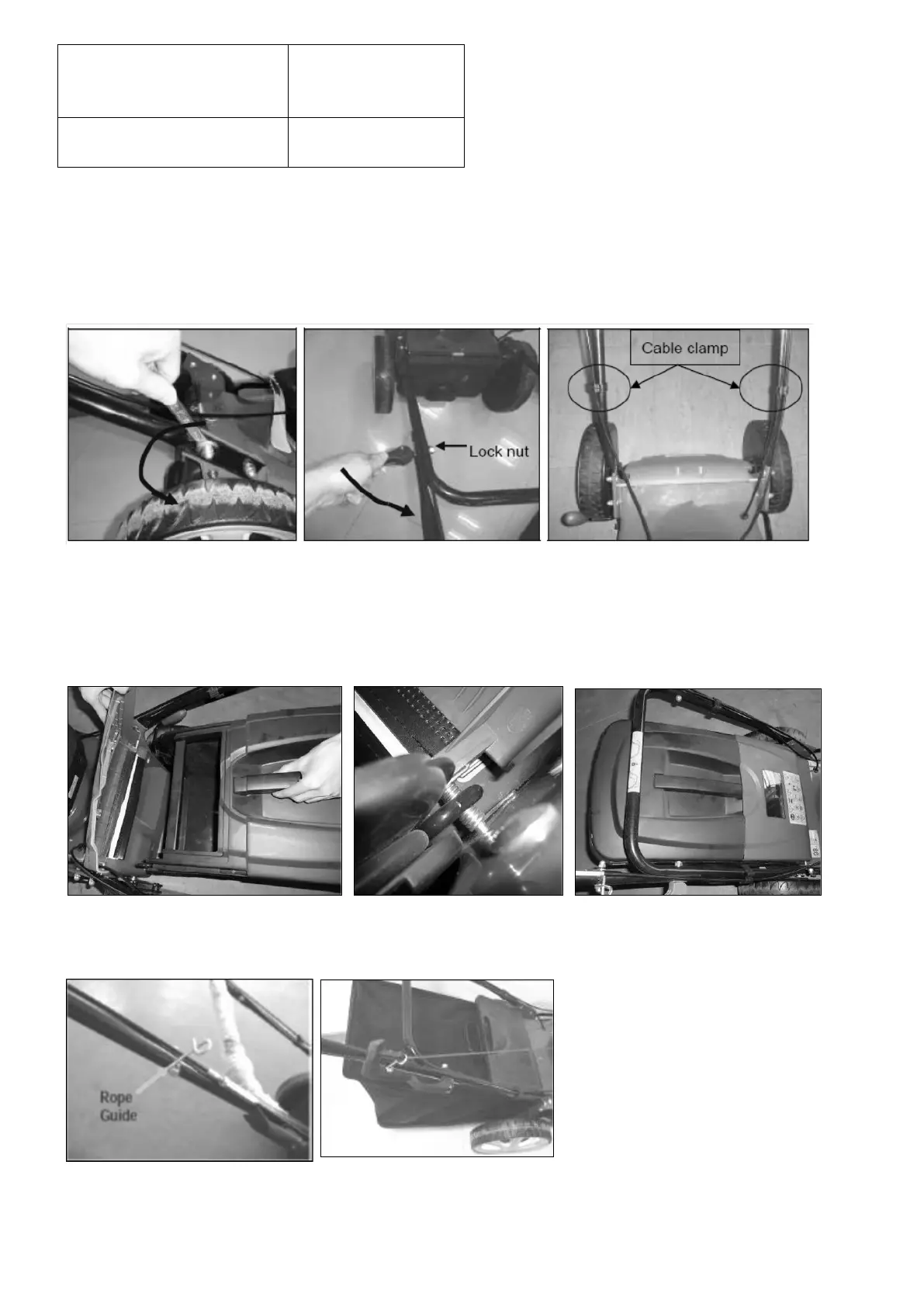

Fig. 2A Fig. 2B Fig. 2C
5.2 MOUNTING AND DISMOUNTING THE GRASS CATCHER
1. To fit: Raise the rear cover and hitch the grass catcher on rear of the mower.
2. To remove: grasp and lift the rear cover, to remove the grass catcher.
Fig. 3A Fig. 3B Fig. 3C
5.3 STARTER HANDLE
Engage the Brake Control Handle and then move the starter handle from the engine to the rope guide.
Fig. 4A Fig. 4B
5.4 HEIGHT OF CUT
