For Dazebox equipped with a 3-meter cable refer to figure 4.




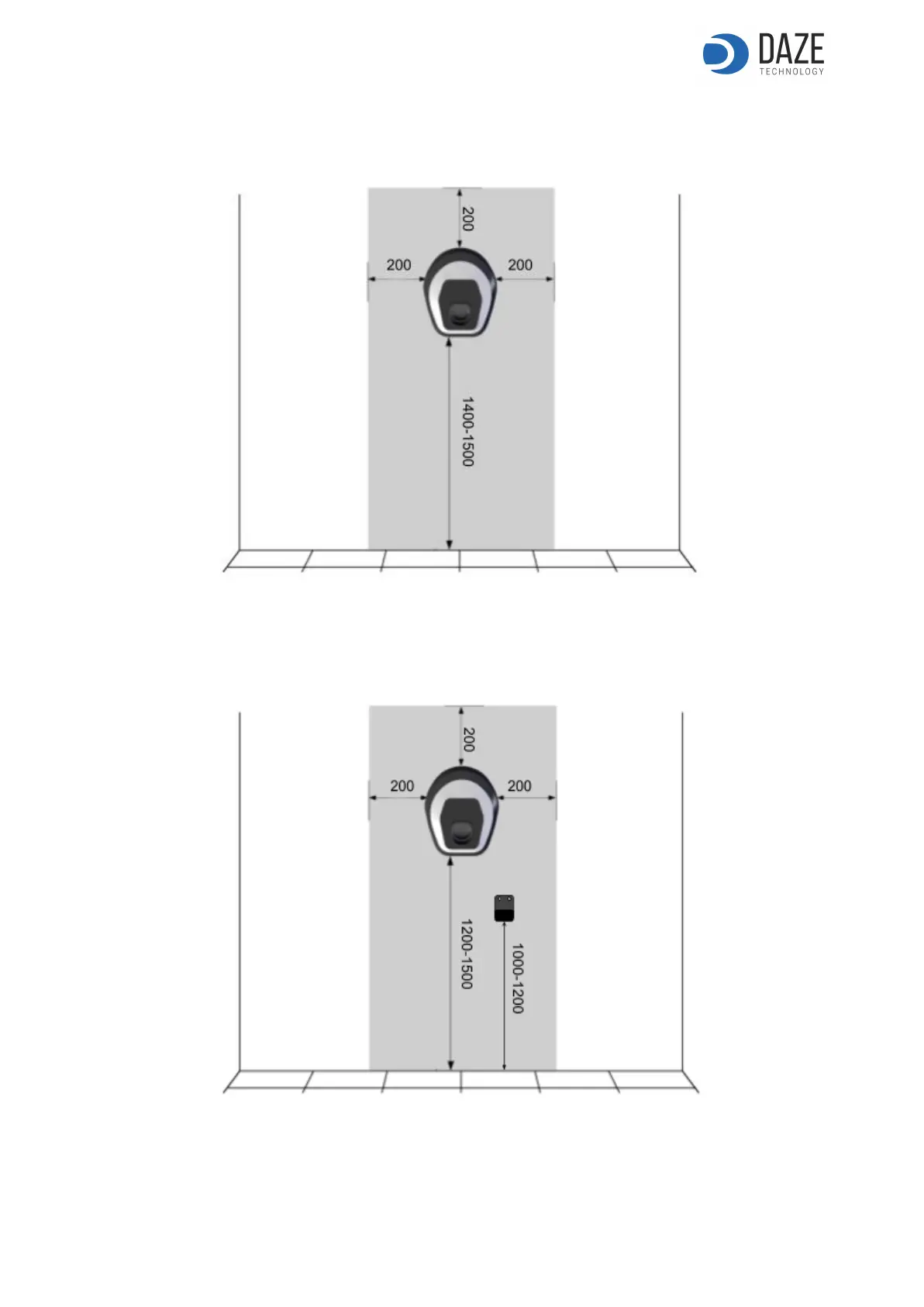

Figure 4. Depiction of mounting on the wall with relative dimensions of the DazeBox with 3-meter cable.


For Dazebox with 5-meter cable and cable holder refer to figure 5.


Figure 5 . Depiction of mounting on the wall with relative dimensions of the DazeBox with 5 meter cable and cable holder.
