DazeTechnology DazeBox - Mounting; Electrical Connection

4.5. Mounting
The electrical connection (power supply line) must have been prepared.

To install the charging station it is necessary to open the cover by unscrewing 3 Allen screws. Remove the                  
black plate. Remove the white and black plastic body that is interlocking.
For wall mounting it is necessary to use 3 plugs 8 mm diameter and screw the aluminum back plate of the                    
device.

The installation height must be respected: 1400-1500 mm with respect to the lower edge of the plate (figure                 
4) for the 3-meter cable version; 1200-1500 mm with respect to the lower edge of the plate (figure 5) for the                    
5 meter cable version.
Mark the three holes using a drilling template and a spirit level. Then drill the fixing holes and insert the                   
plugs (figure 6).
Screw the plate to the wall with the screws suitable for the dowels.



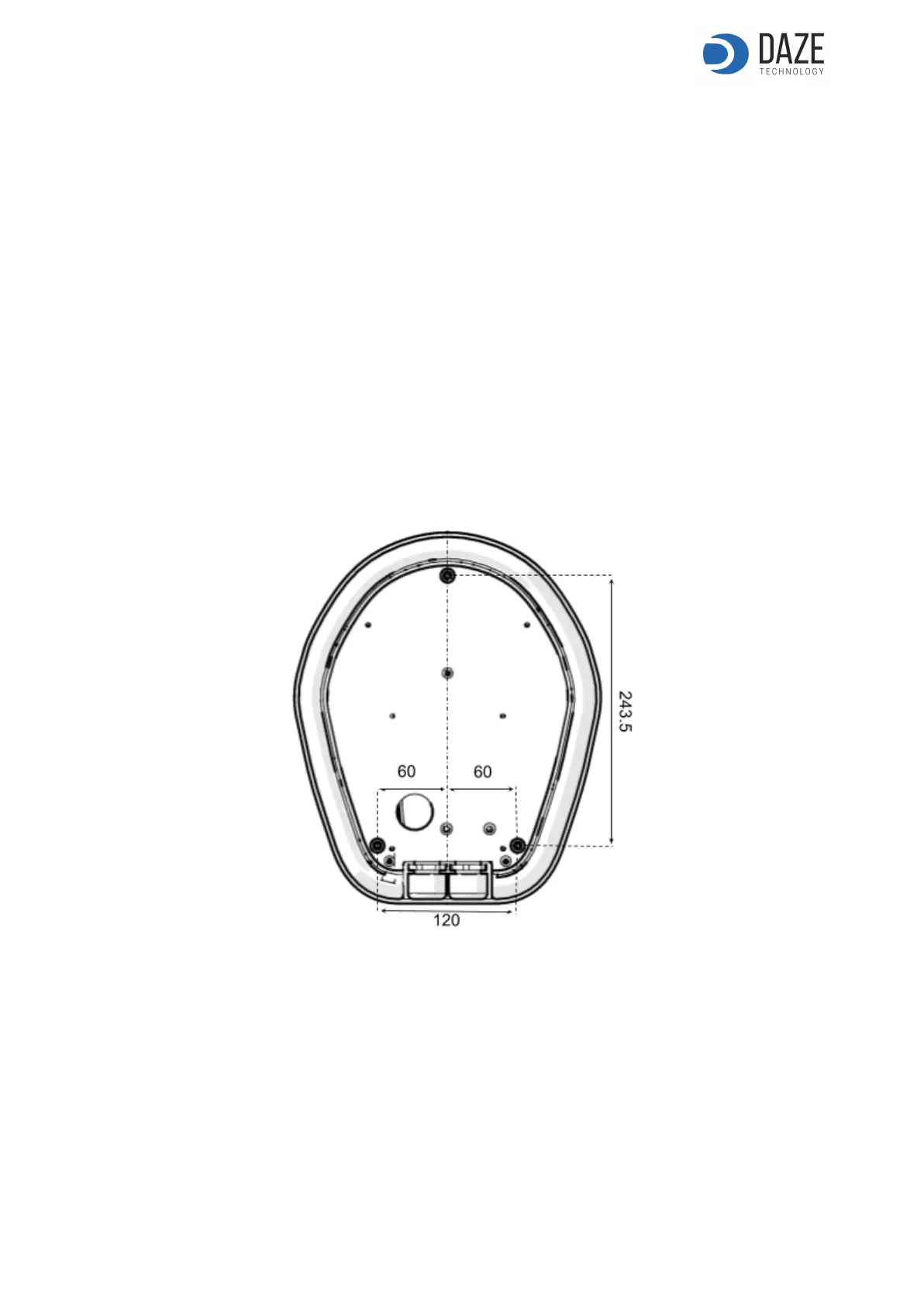

Figure 6. Holes for the screws with which the DazeBox is fixed to the wall.

4.6. Electrical connection

Selection of the differential switch
The power supply line must be installed and permanently wired in the already existing domestic system to                
comply with the national laws in force.
