Dip switch
Power
management
Corrente max
Potenza max
1
2
3
4
A
kW
1
0
0
0
PM ON
13,043
3
1
0
0
1
PM ON
15,217
3,5
1
0
1
0
PM ON
17,391
4
1
0
1
1
PM ON
19,565
4,5
1
1
0
0
PM ON
21,739
5
1
1
0
1
PM ON
23,913
5,5
1
1
1
0
PM ON
26,087
6
1
1
1
1
PM ON
30,435
7


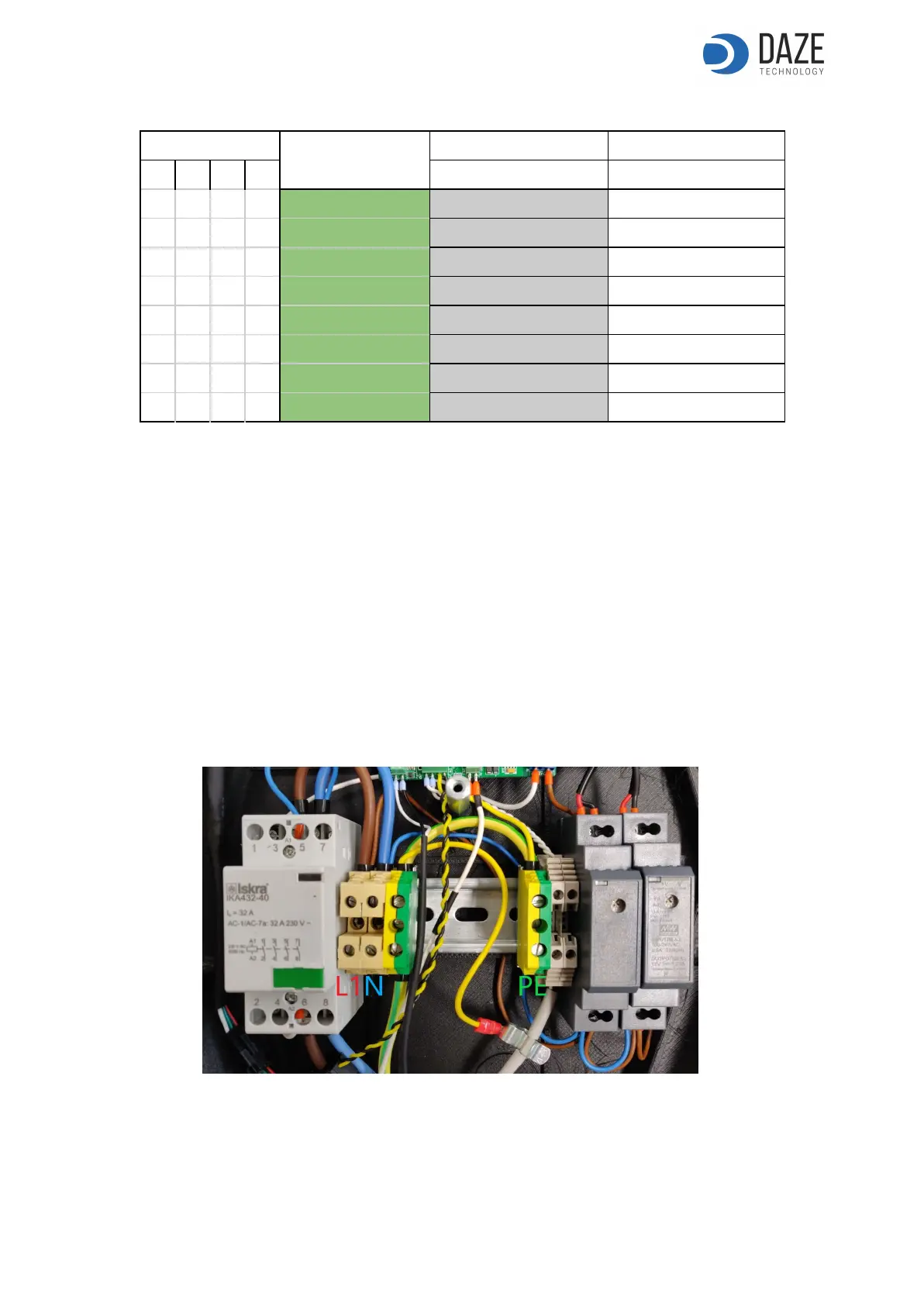

Table 6.2. Table for selecting the maximum power available in the house.

Connecting the power supply line
1. Shorten the connection wires to the appropriate length. The wires must be as short as possible.
2. Remove approximately 12 mm of insulation from the connection wires. For thin connection wires it              
is recommended to use end sleeves.
3. Connect the power supply line L1, L2, L3, N and PE (figures 8).
4. Unscrew the terminal screws with a star screwdriver.
5. Push each connection wire with the insulation removed into the power supply terminal.
6. Retighten the screws to close the contacts and check the correct connection of the connection              
cables.



Figure 11. Power supply line wiring.
.


