Raider Mini 90 (single/double-seat): Service Manual Version：2.0 Feb. 2006
11
c) Clear up the filth and carbon
accumulation on the spark plug with a steel
brush or a blade;

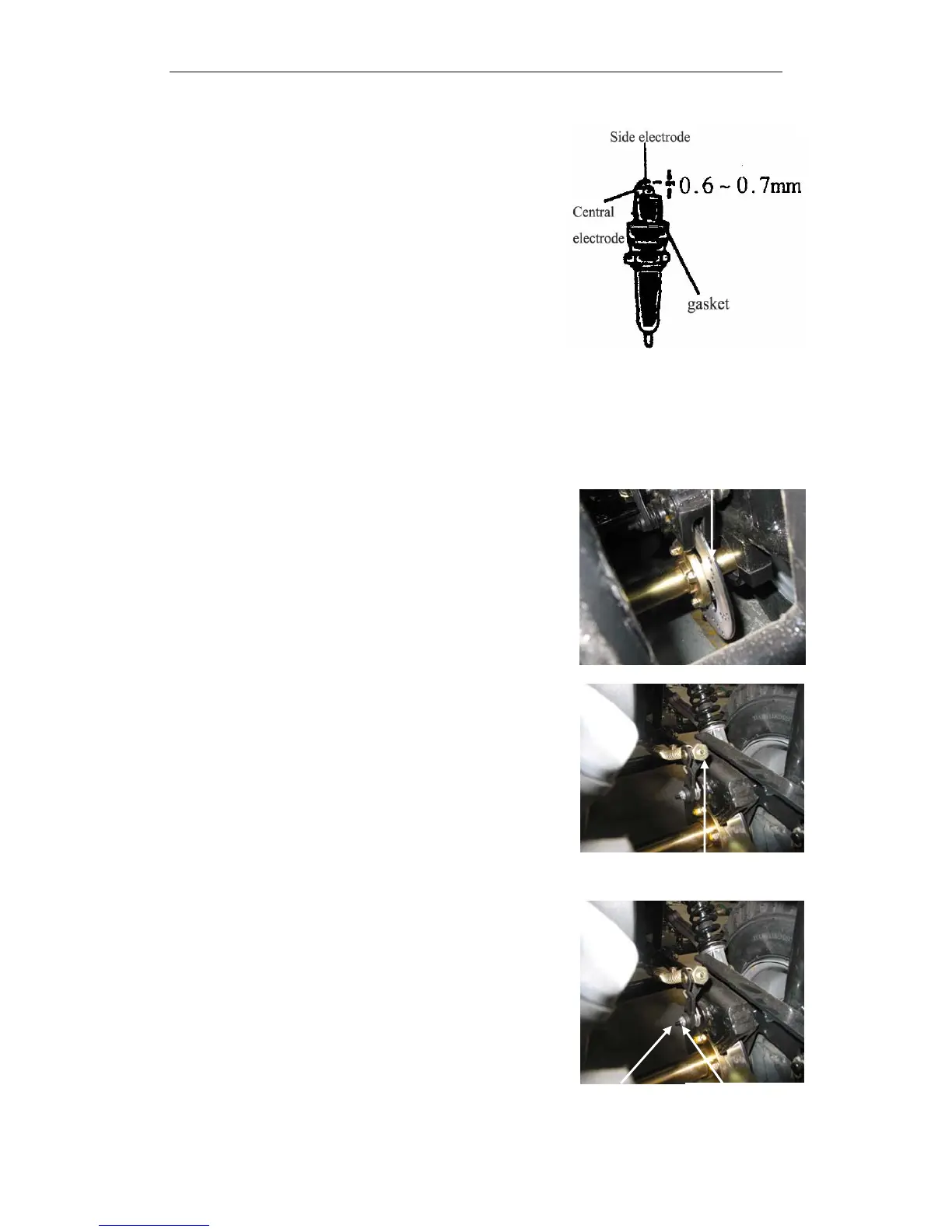

d) Inspect the spark plug gap (in general, it should be
about 0.6 - 0.7 mm.);
e) When the carbon accumulation and wear of the
spark plug are too serious, replace the spark plug
with a new one of the same specification.
2.2.2 Tire Pressure / Wear
Check the tire pressure before each of your driving.
The tire pressure is very important for the riding stability.
Specifications: Front Tire: 28 Kpa
Rear Tire: 50 Kpa
2.2.3 Brake Performance
a) Check if the brake pad is in good condition;
b) Check the brake rotor for abnormal wear.
z Brake Cable Adjustment
a) If the brake cable is too loose, adjust the adjust nut
of the brake cable clockwise;
If the brake cable is too tight, adjust the adjust nut
of the brake cable counterclockwise;
If the adjustment doesn’t work, go on with the next
step;
b) Loosen the nut M6 at the adjust bolt of the brake
caliper;
If the brake cable is too loose, adjust the adjust bolt
clockwise;
If the brake cable is too tight, adjust the adjust bolt
counterclockwise;
Fasten the nut M6.
Brake Rotor
Ad
ust Bolt Nut M6
