Raider Mini 90 (single/double-seat): Service Manual Version：2.0 Feb. 2006
25

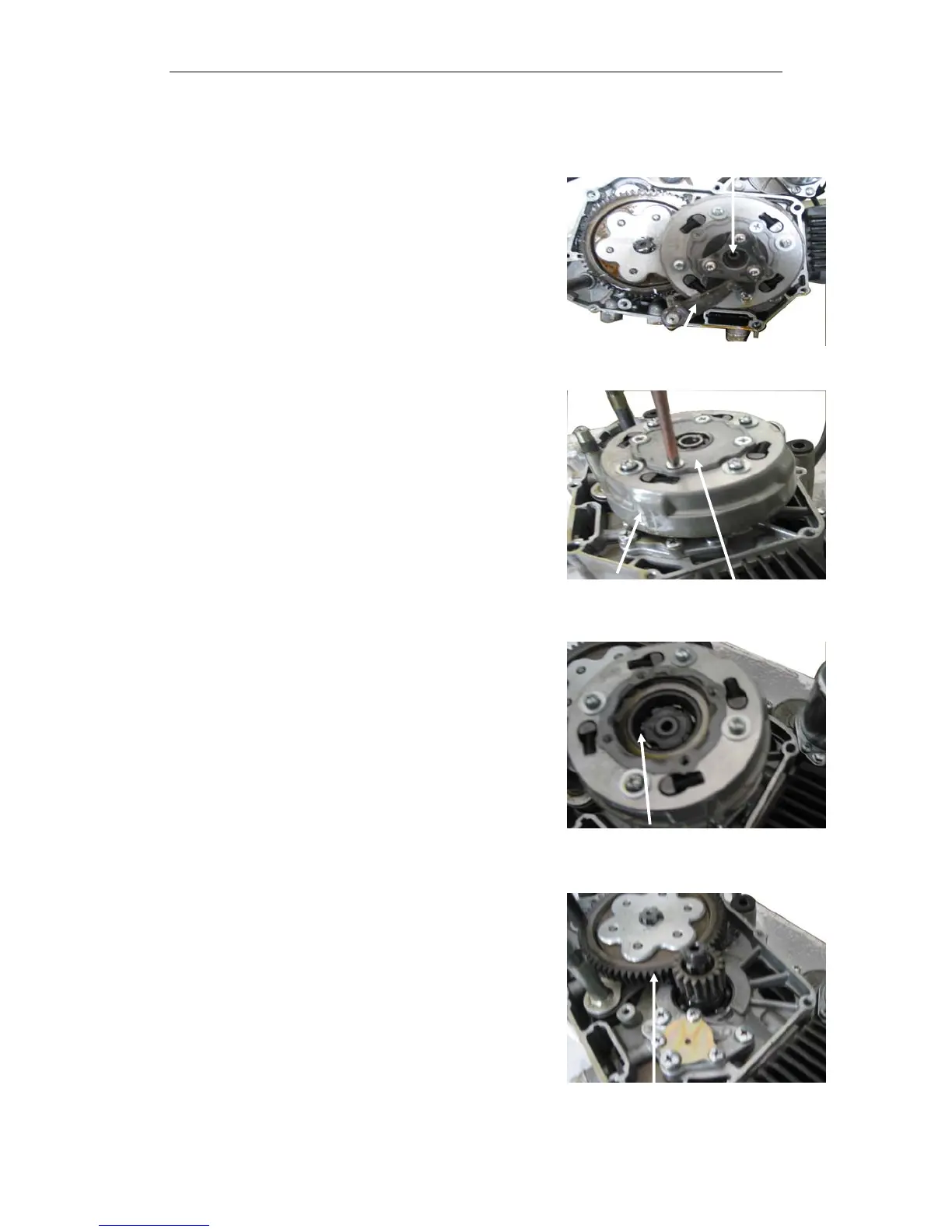

3.2 CLUTCH
3.2.1 Dismantle
a) Dismantle the following parts:
---Lever Comp., Clutch
---Plate Comp. , Clutch Lifter Cam
---Plank Comp., Limited
---Spring, Plate Side
---Through, Oil
---Spring, Oil Through
b) Remove the four screws, cover and
gasket;
c) Lift the connecting tongue of the locking
bush;
Detach the centrifugal clutch locking
nut by using a special tool ;
Detach the clutch;
d) Dismantle the following parts:
---Gear, Primary Drive
---Guide, Clutch Center
---Collar
Lever Comp., Clutch
Plank Cover, Limited
Clutch Cover, Outer Clutch
Locking Nut
Gear
