Raider Mini 90 (single/double-seat): Service Manual Version：2.0 Feb. 2006
15

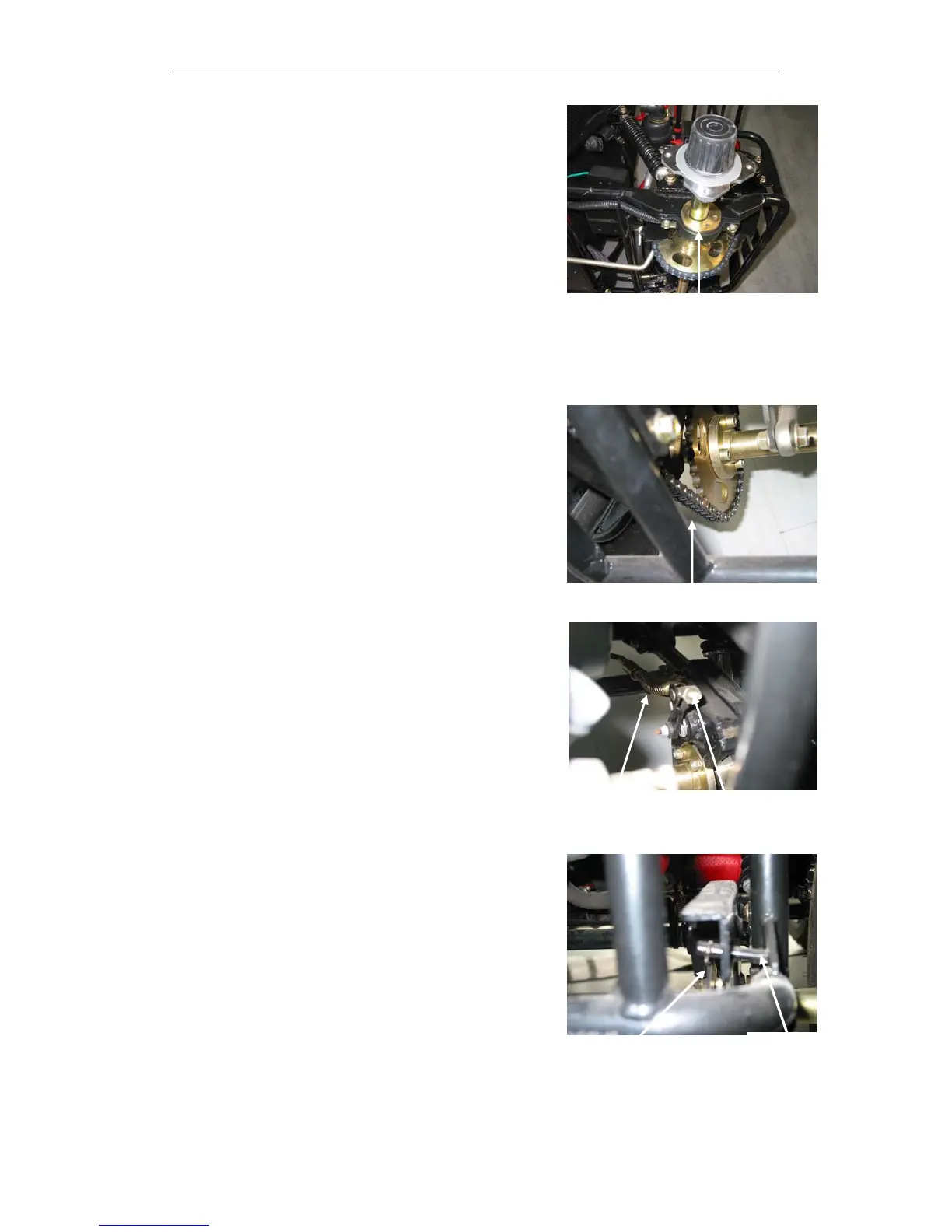

b) If the chain is too loose, adjust the left and right
rear wheel bearing holders counterclockwise at
the same time;
If the chain is too tight, adjust the left and right rear
wheel bearing holders clockwise at the same
time;
c) Fasten the 4 bolts M8*16 on the rear wheel axle
holder.
2.2.12 Brake Shoe Replacement
a) Loosen the connecting clip on the chain;
Remove the chain;
b) Loosen the adjust nut on the brake cable;
Take out the brake cable;
c) Remove the cotter pin on the bracket of the
rake caliper;
Bearin
Holder
Chain
Brake Cable Adjust Nut
Cotter Pin
Bracket
To Next Page
