Dazzle Digital Media HS Reader/Writer User’s Guide • Using the Digital Media Reader/Writer • Page 20
Inserting a CompactFlash Card
To insert a CompactFlash Card, follow these steps:
1. Position the CompactFlash card in the direction shown in the illustration below.
2. Insert the card with the connectors facing inward and the manufacturer’s label on the
left side.
Make sure you position the card properly. All CompactFlash card manufacturers adhere
to a specification that requires a positive keying of the card.
Caution: Be careful not to insert the CompactFlash card in the wrong direction.
Make sure the connectors are facing inward (with the manufacturer’s label on the left
side) and the card is not inserted upside down. If it is forced in, the reader/writer or
CompactFlash card may be damaged or data on the card may be lost or corrupted.
3. Gently push the card in all the way until it locks in place.
The card slides in on the molded rails and you should feel a slight amount of
resistance as the connectors make contact.
Important: If excessive force is required or the card just doesn’t seem to fit, do not
force the card in the reader. Contact the Dazzle Technical Resource Center for
assistance.
128
MB
Digital FlashFilm

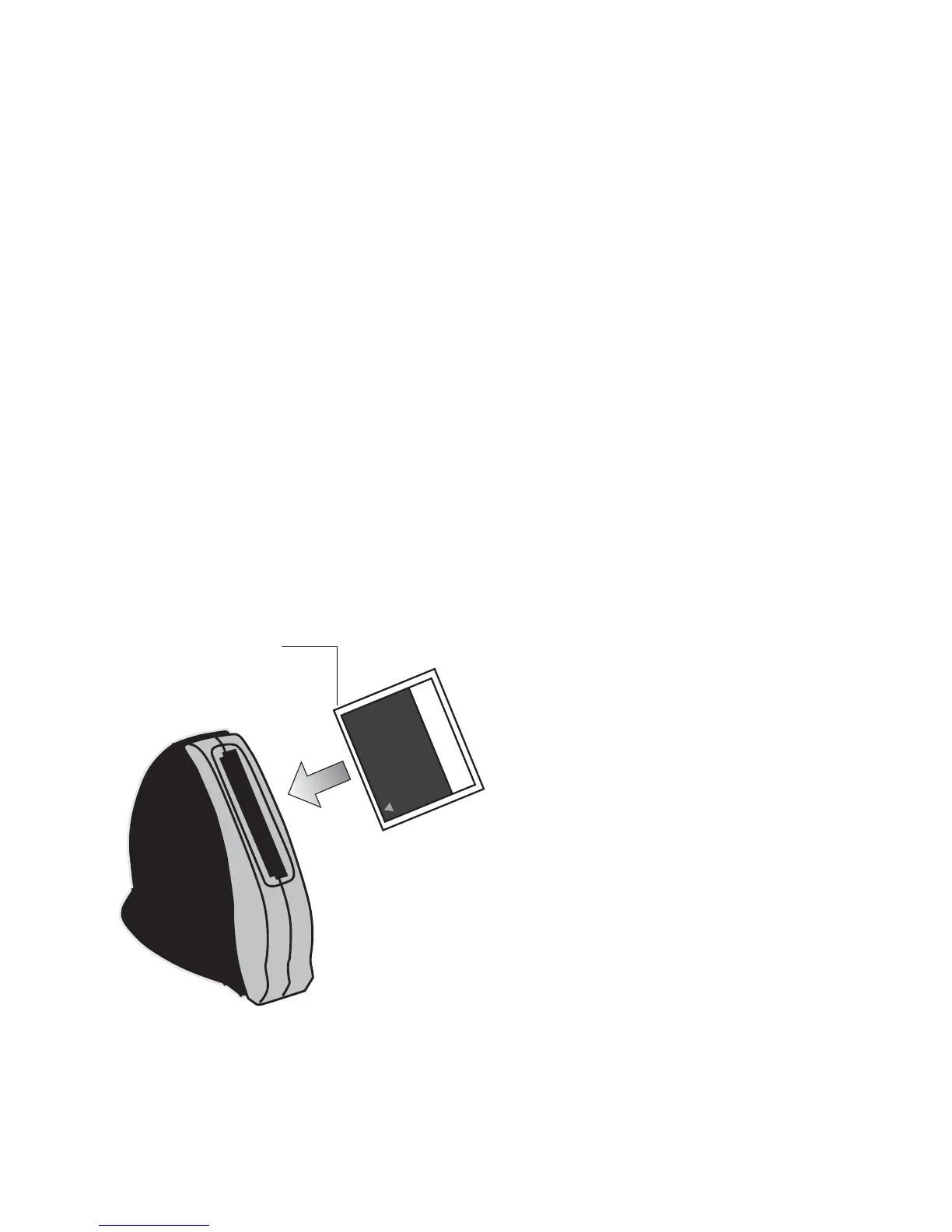

Insert the CompactFlash
Card with connectors
facing in
