Dazzle ZiO! Hi-Speed Portable Reader/Writer User’s Guide • Getting Started • Page 7
Hardware Overview
You can connect your ZiO HS Reader/Writer to computers with USB 1.1 ports or USB 2.0
ports. Computers with USB 2.0 ports will utilize the ZiO HS Reader/Writer’s Hi-Speed
transfer capability, moving data at a much faster rate than computers with USB 1.1 ports.
The ZiO HS Reader/Writer is available in four different models: SmartMedia/xD, Compact-
Flash (Type I & II, including IBM Microdrive), MultiMediaCard/Secure Digital, and
MemoryStick (including MagicGate).
The ZiO HS Reader/Writer is shipped in the closed position with its protective ring covering
the card slot and the USB connector. To prepare your ZiO HS Reader/Writer for use, begin
by positioning the unit with the Access Indicator on top, as shown below. Then simply flip
the protective ring to the open position to uncover the USB connector and the card slot
and convert the ring to a stand. Later, when you’re done using your ZiO HS Reader/Writer,
you can cover the USB connector and the card slot (with or without a card inserted) by flip-
ping the protective ring back to the closed position. This turns your ZiO HS Reader/Writer
into a portable digital media carrying case.

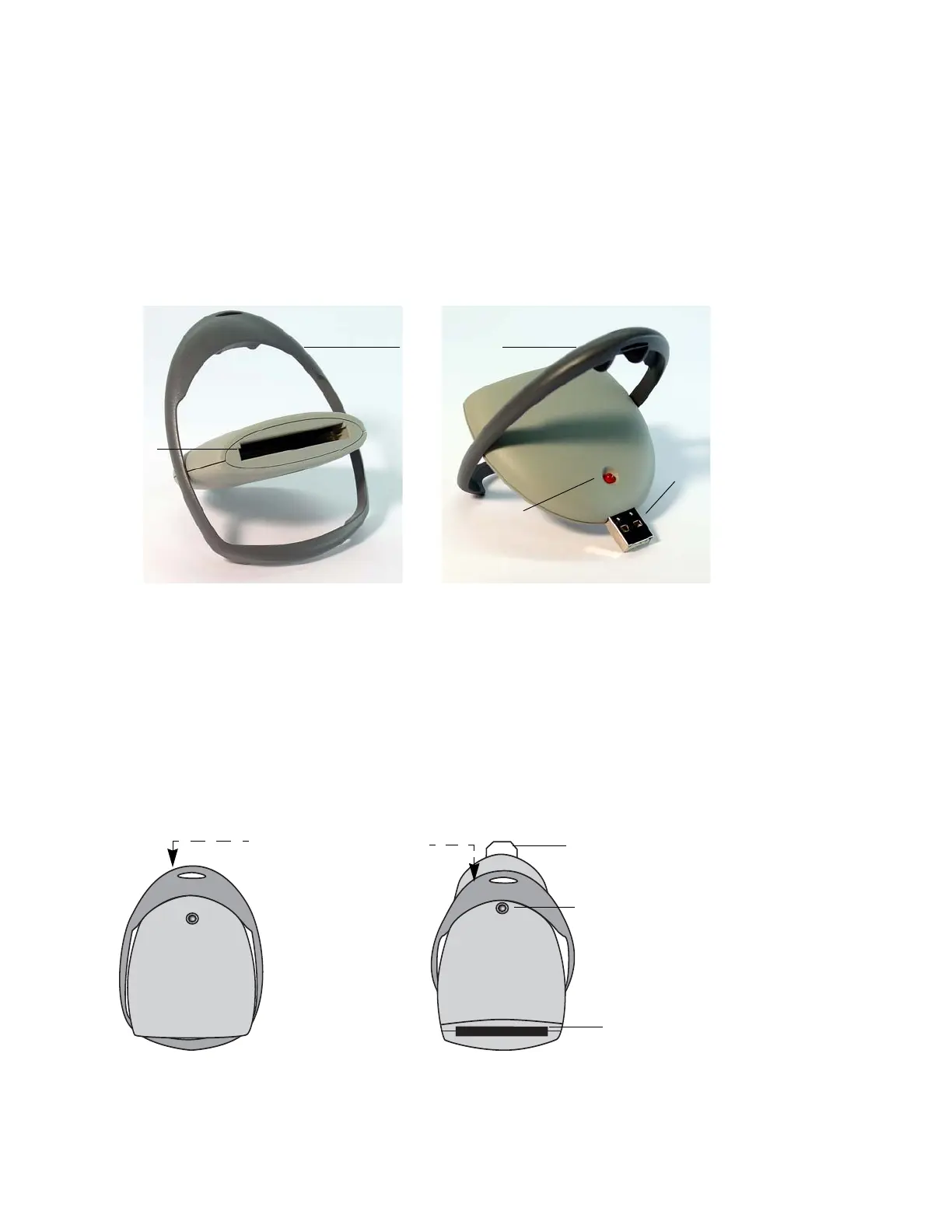

ZiO HS Reader/Writer/Front View
ZiO HS Reader/Writer/Rear View
Slot
(Differs
Card
by Model)
USB Connector
Protective Ring
Access Indicator
(and Stand)
Grasp top of protective ring
and pull forward to uncover
USB connector and card slot
ZiO HS Reader/Writer/Closed ZiO HS Reader/Writer/Open
USB Connector
Card Slot
Flip back to closed position
(to convert to carrying case)
(and convert to stand)
Access Indicator
To Next Page
