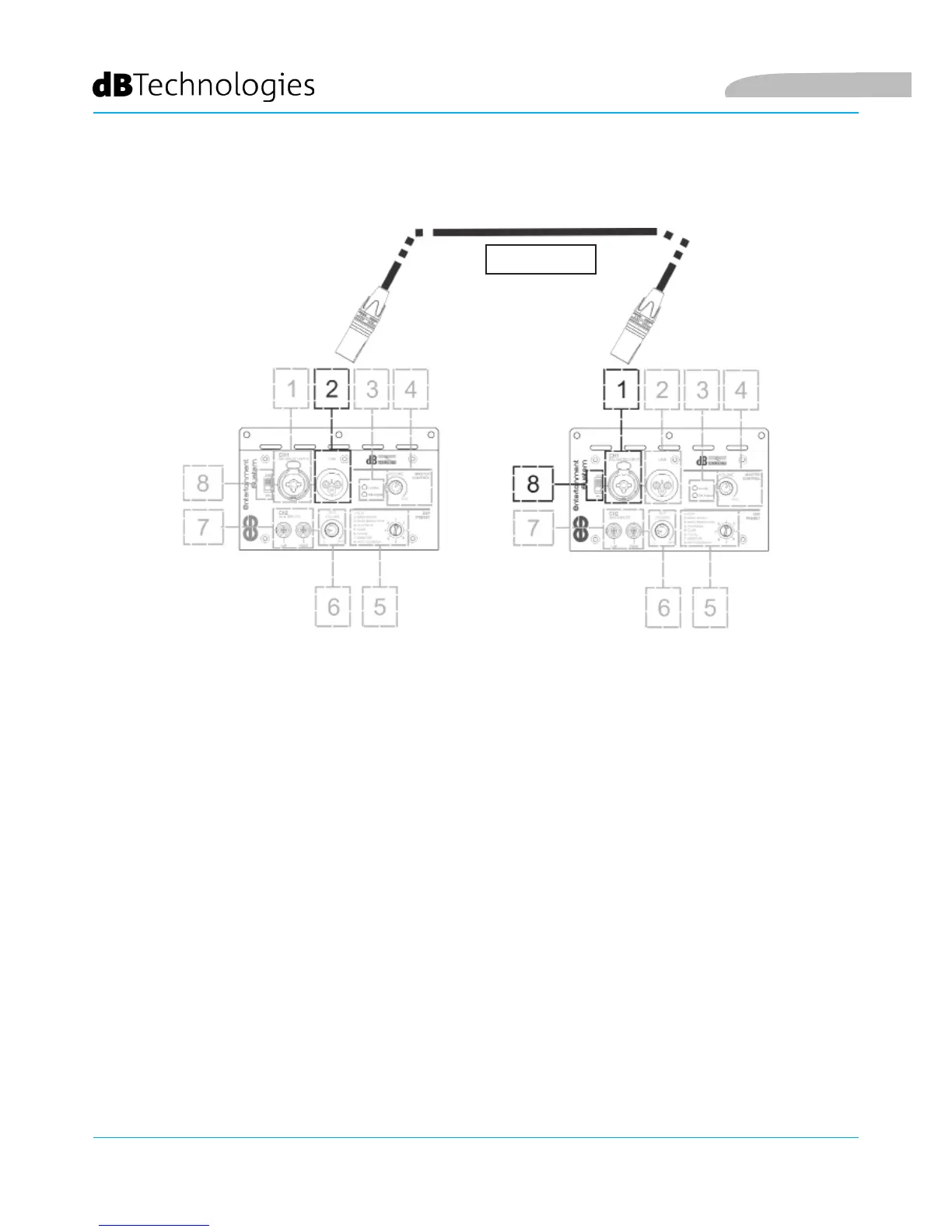

The audio signal can be linked using a balanced XLR cable connection to a second unit, then in a cascade to a
third one, and so on. To link the audio signal connect the LINK output (2) of the rst ES 602 or ES 802 to the input
(1) of a second device. Perform the connection with the downstream system by turning the relevant selector (8) to
the LINE position. The volumes of the linked systems will be independent of each other.
CONNECTING OUTPUTS BETWEEN MULTIPLE MODULES (audio signal linking)
LINK
English
