dbx 122 - Page 14

13
GRAPHIC EQ
or Similar Unit
S 0-86
2 « ' a
PNA,
i
Sop

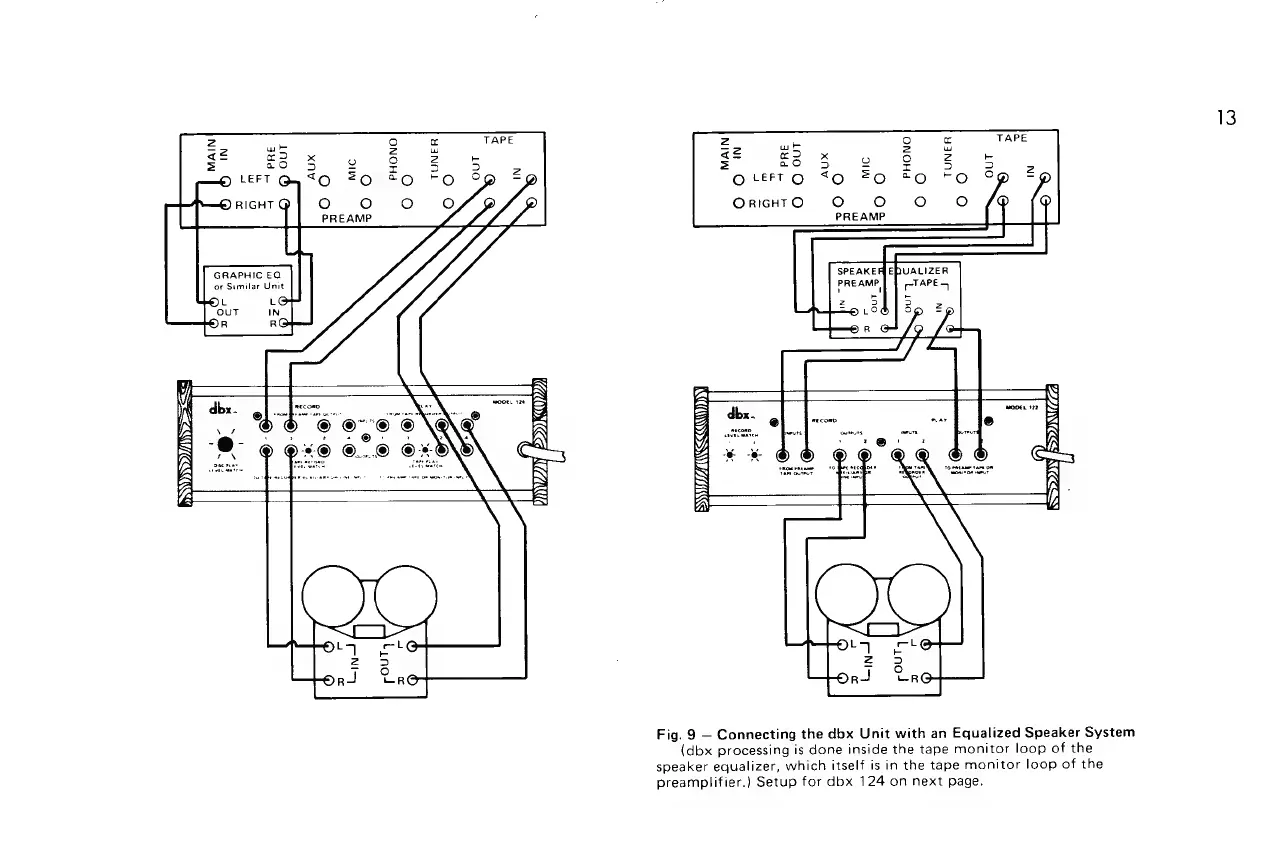

Fig. 9 — Connecting the dbx Unit with an Equalized Speaker System
(dbx processing is done inside the tape monitor loop of the
speaker equalizer, which itself is in the tape monitor loop of the
preamplifier.) Setup for dbx 124 on next page.
