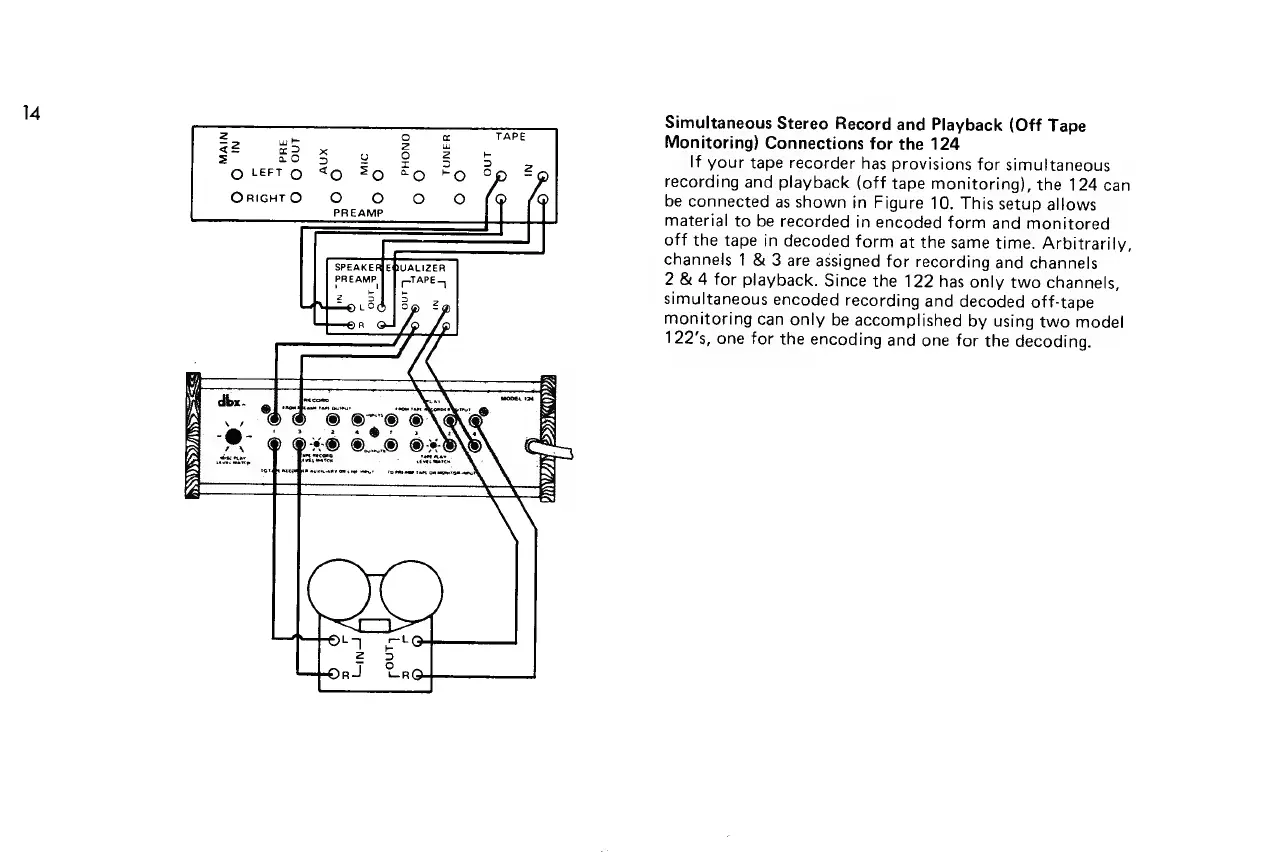

Simultaneous Stereo Record and Playback (Off Tape
Monitoring) Connections for the 124
If your tape recorder has provisions for simultaneous
recording
and
playback
(off
tape
monitoring),
the
124
can
be connected as shown in Figure 10. This setup allows
material to be recorded in encoded form and monitored
off
the
tape
in
decoded
form
at
the
same
time.
Arbitrarily,
channels 1 & 3 are assigned for recording and channels
2 & 4 for playback. Since the 122 has only two channels,
simultaneous
encoded
recording
and
decoded
off-tape
monitoring
can
only
be
accomplished
by
using
two
model
122's, one for the encoding and one for the decoding.
