INSTRUCTION MANUAL
EN

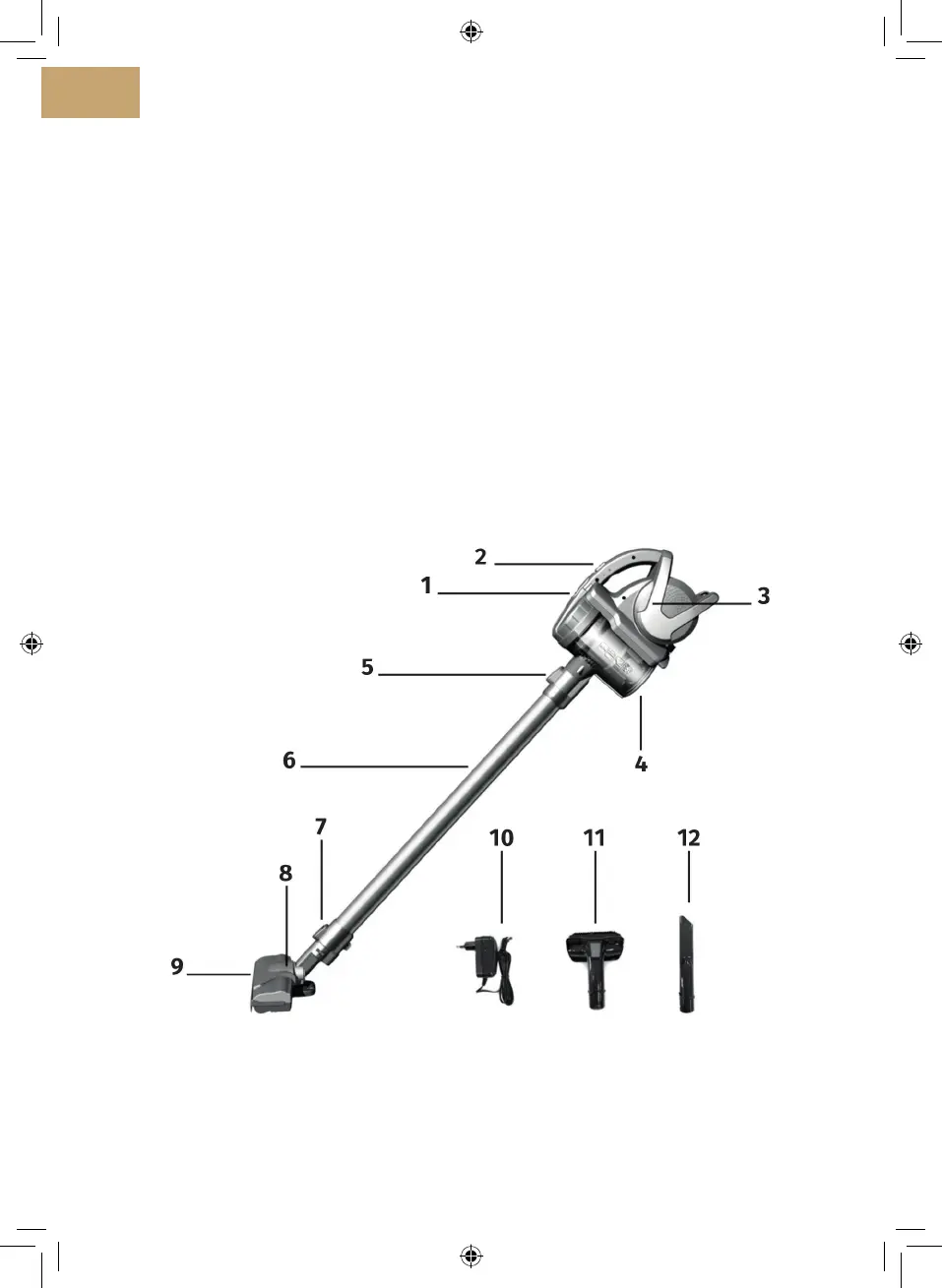

DEVICE DESCRIPTION
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Lock button of the dust collector
On/Off button
The vacuum cleaner’s body
Dust collector of cyclone type
The fixation button of extension tube.
Extension tube
The fixation button of brush.
Turbo brush
Cleaning area light
Battery charger
Combined nozzle
Crevice nozzle
