DCS BE Series - Radiant Assembly

22

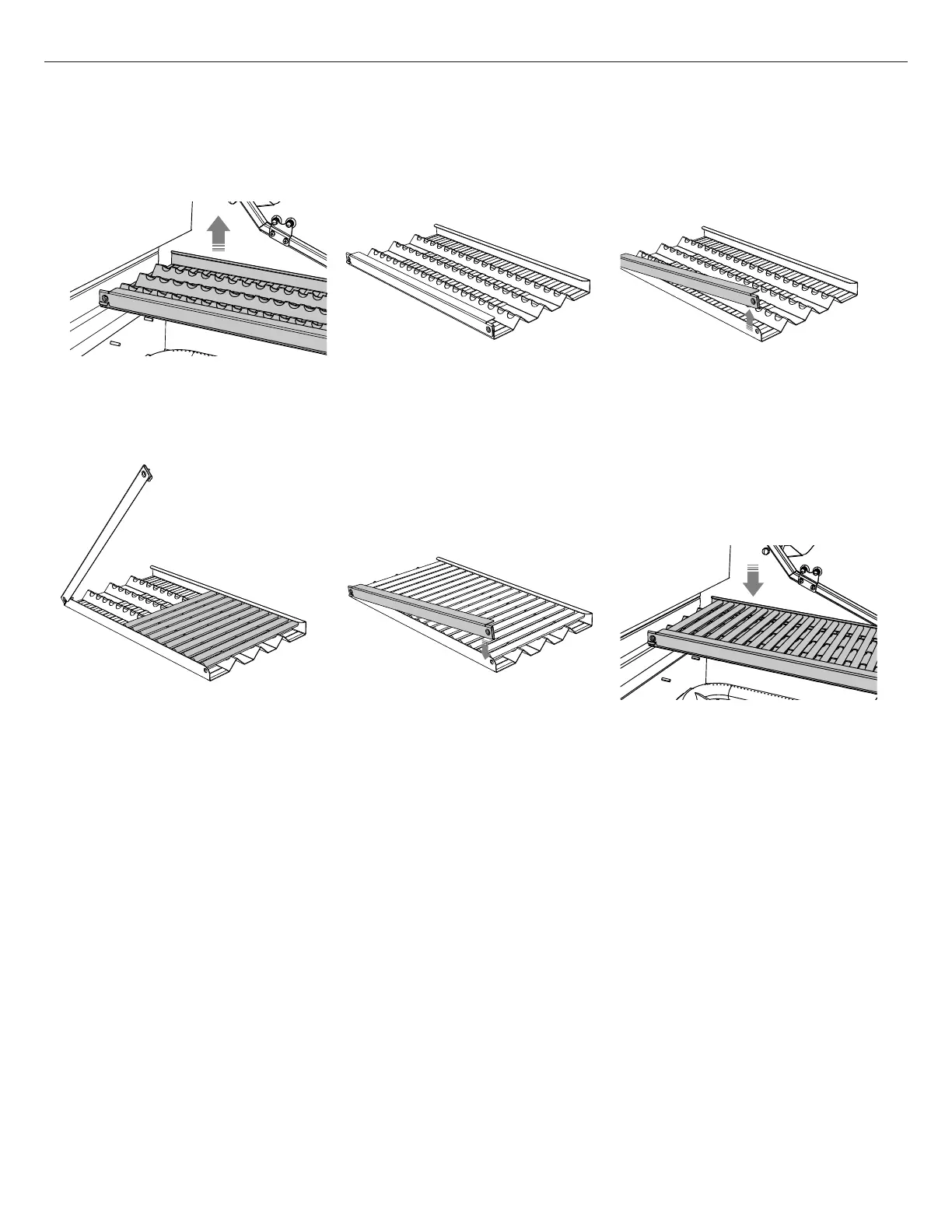

INSTALLATION
2 Unpack ceramic rods
and remove radiant from
the unit .
1 Locate the radiant in
the unit.
3 Unlock radiant end cap
by pushing it up with
two fingers.
5 Lock radiant end cap. 6 Place the assembled
radiant into the unit.
4 Place the 18 ceramic rods
onto the radiant.
If a ceramic rod breaks
1
Unlock radiant end cap by pushing it up with two fingers.
2 Replace broken ceramic rod.
3 Lock radiant end cap.
To order a replacement ceramic rod, please visit www.dcsappliances.com
IMPORTANT!
Before assembling the radiant, check that the radiant trays have not moved during transit. They
should sit securely on their locating pins in the base of the grill.
Radiant Assembly
