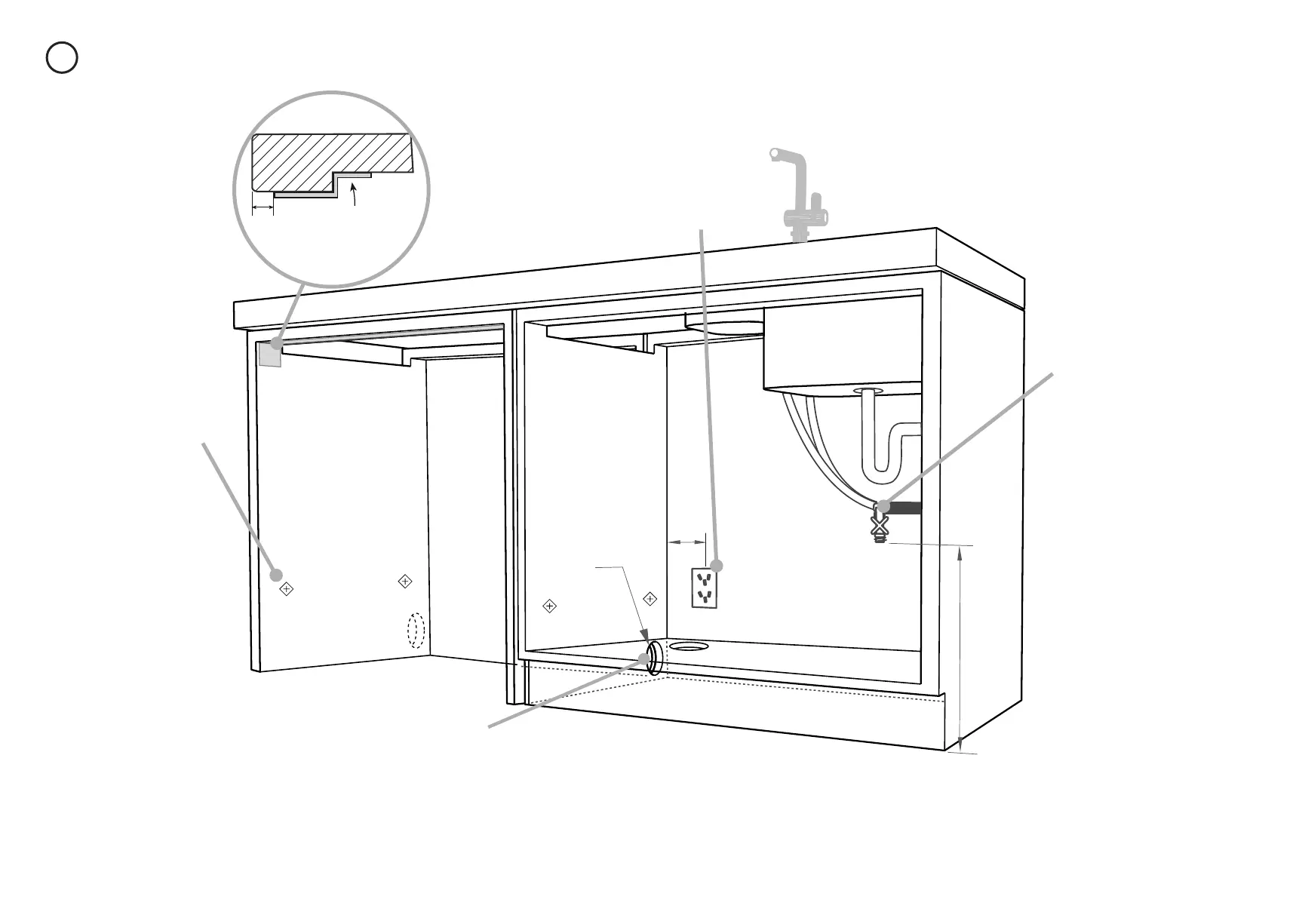

CAVITY PREPARATION
Water Connection
Recommended HOT
(Maximum 140°F/60°C).
Supplied hose to
suit ⁄” (9 mm) male
compression fitting.
Kosher requirements
Drains will need to be
separated to satisfy
kosher requirements.
We suggest you confirm
acceptability with your
local rabbi in respect to
kosher installations.
Water Pressure
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)
Important!
The power outlet must be
located in a cabinet adjacent
to the dishwasher cavity.
110-120 VAC max. 15 A
ø
max. 1½ ” (38 mm)
min. 7 ⁄” (200 mm)
Moisture
protection
tape must
be applied.
Services hole
Can be located either side of dishwasher, preferably
at the bottom of the cavity, as shown. If adequate
clearance, services hole can be made higher to clear
toekick space. If hole is higher, ensure drain hose(s)
are routed straight into the waste connection.
- If the hole is through wood, make sure its edges
are smooth and rounded.
- If the hole is through metal, ensure you t the
supplied Edge Protector to prevent damage to the
power cord.
These marks indicate
formed bracket screw
locations, if securing
by drawer removal.
⁄” (10mm)
COUNTERTOP
If there is no side
partition, you
can construct
timber bracing
as something to
secure into.
max. 17 ⁄”
(450 mm)
To Next Page
