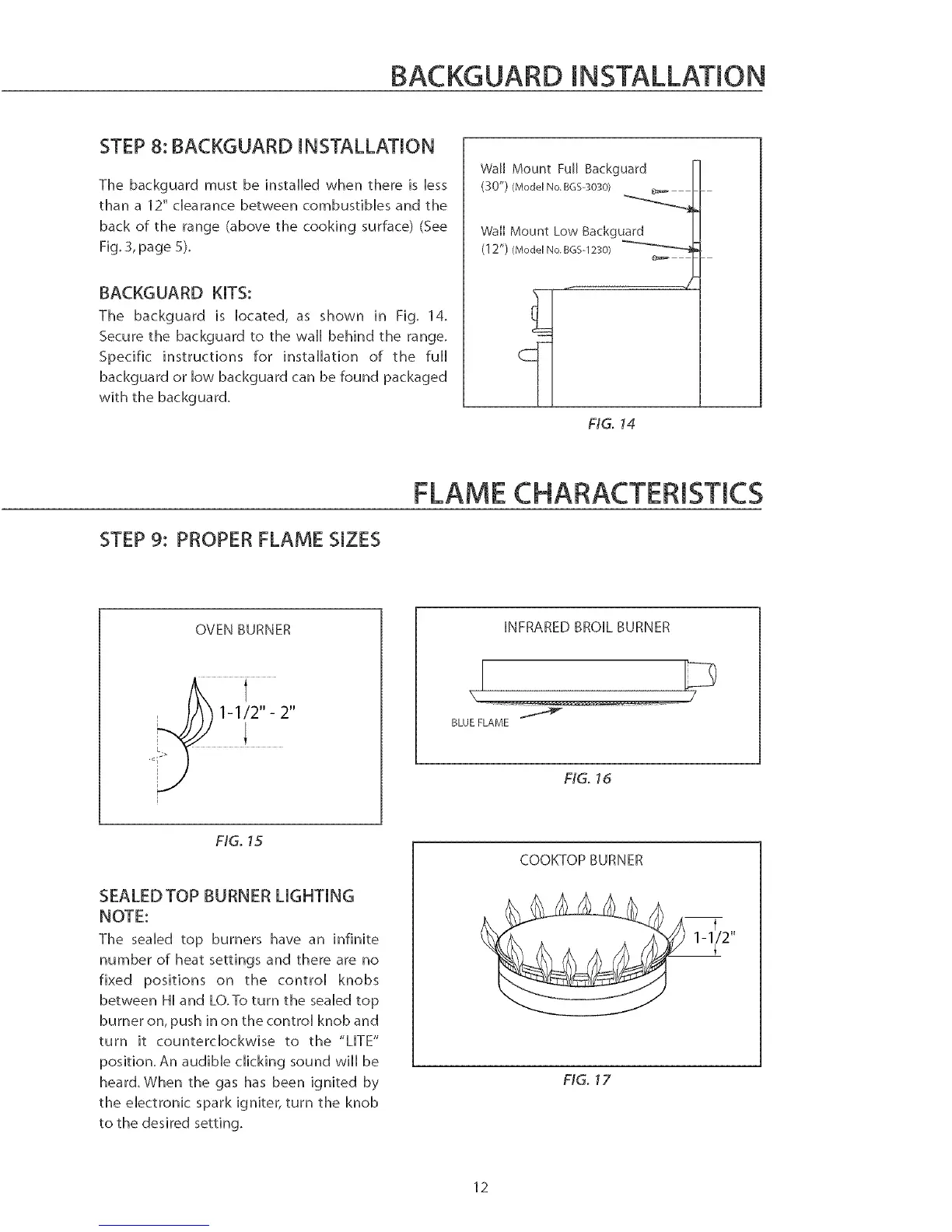

BACKGUARD INSTALLATION
STEP 8: BACKGUARD [NSTALLATION
The backguard must be installed when there is less
than a 12" clearance between combustibles and the
back of the range (above the cooking surface) (See
Fig. 3, page 5).
BACKGUARD KITS:
The backguard is located, as shown in Fig. 14.
Secure the backguard to the waN[ behind the range.
Specific instructions for instaHHation of the fuN[
backguard or How backguard can be found packaged
with the backguard.
Wain Mount Full Backguard
(30") (Model No. BGS-3030) 6_,_
Wail Mount Low Backguard
(12") (Model No. BGS-1230) _ _'_
FIG. 14
STEP 9: PROPER FLAME SIZES
FLAME CHARACTERISTICS
OVEN BURNER
iNFRARED BROIL BURNER
\.
S
BLUE FLAME
FIG. 16
FIG. 15
SEALED TOP BURNER LIGHTING
NOTE:
The seaHed top burners have an infinite
number of heat settings and there are no
fixed positions on the contro[ knobs
between Hi and LO.To turn the seaHedtop
burner on, push in on the contro[ knob and
turn it countercHockwise to the "LITE"
position. An audible clicking sound will be
heard. When the gas has been ignited by
the electronic spark igniter, turn the knob
to the desired setting.
COOKTOP BURNER
FIG. 17
12
