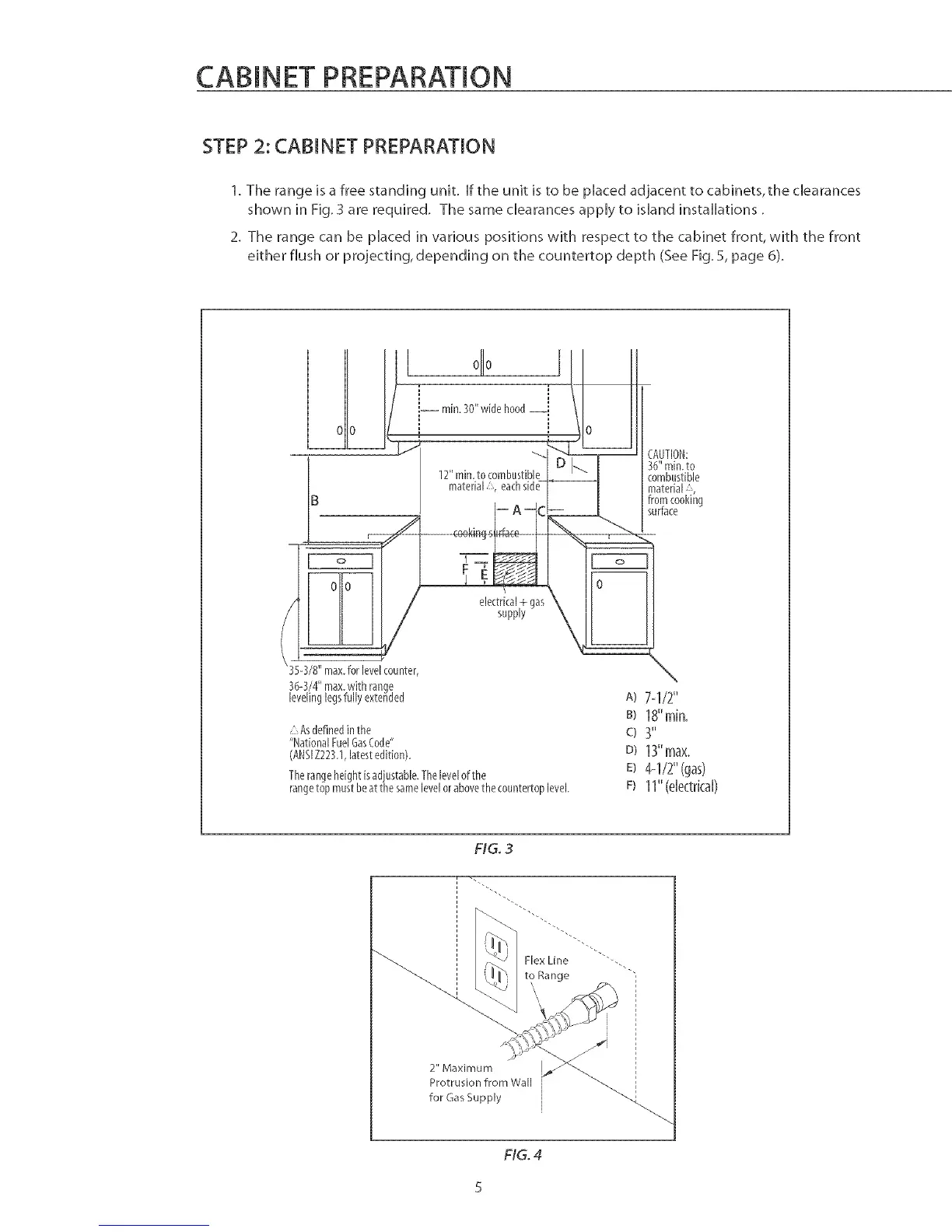

CABINET PREPARATION
STEP 2: CABmNET PREPARATmON
1. The range is a free standing unit. Hfthe unit is to be placed adjacent to cabinets, the clearances
shown in Fig. 3 are required. The same cHearances appHy to isHand instaHHations.
2. The range can be pHaced in various positions with respect to the cabinet front, with the front
either flush or projecting, depending on the countertop depth (See Fig. 5, page 6).
00 L !
35-3/8"max.forlevelcounter,
3&3/4" max.with range
levelinglegsfully extended
"As definedin the
"NationalFuelGasCode"
(ANSIZ223J,latestedition).
Therangeheight[sadjustable.The[eve[of the
rangetop mustbeat the same[eve[orabovethec0untertoplevel.
A) 7q/2"
m 18"mJn.
C) 3"
D) 13"max.
E) 4-1/2" (gas)
F) 11"(electrkal)
FIG. 3
Flex Line "'-..
to Range
2" Maximum
Protrusion from Wall
for Gas Supply
FIG. 4
