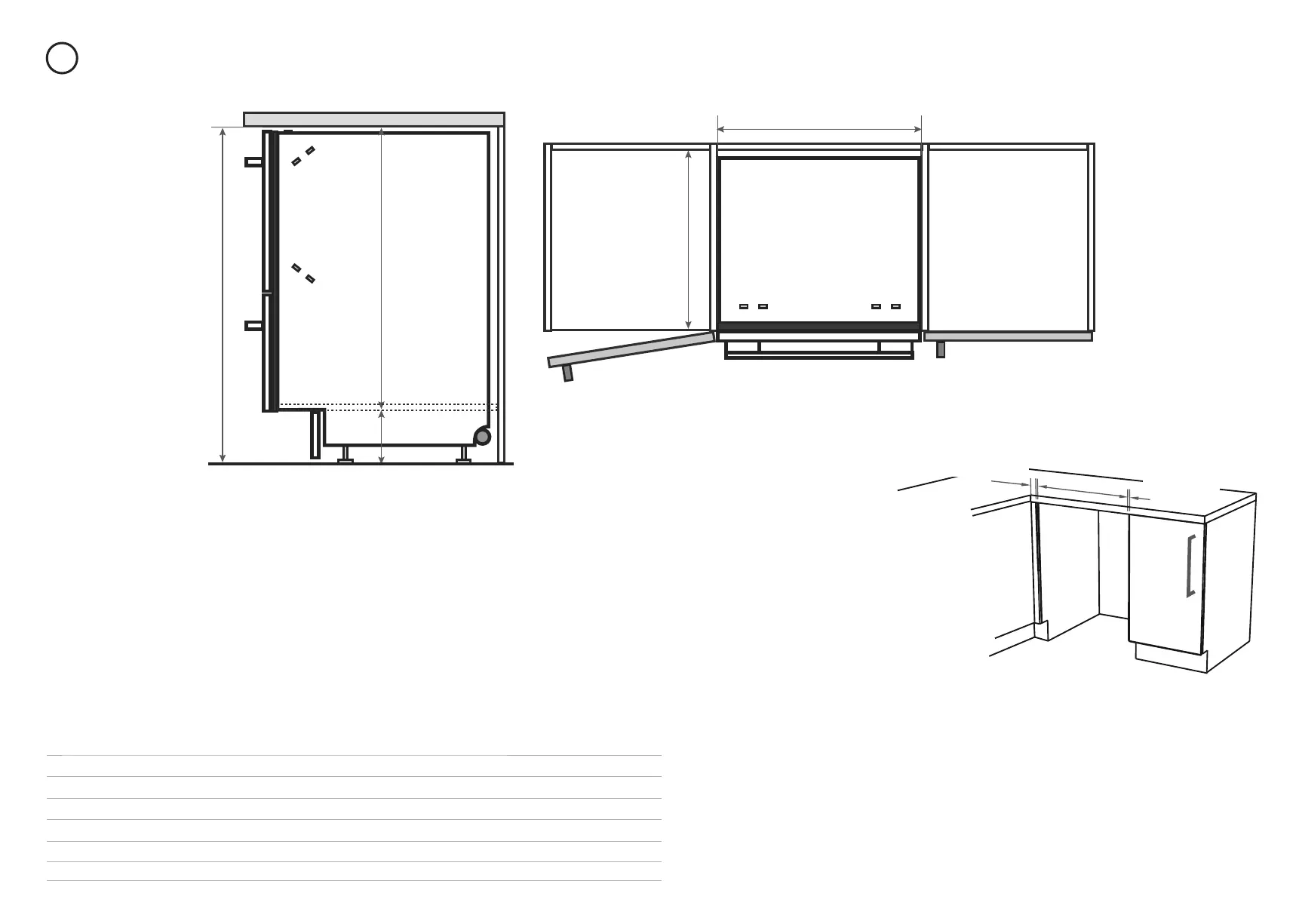

CABINETRY DIMENSIONS
Plan
Side
P
Q
R
S
T
Minimum clearances from adjacent cabinetry
min. ½ ” (13 mm)
clearance from a
corner cupboard
min. ⁄” (2 mm)
clearance
to adjacent
cupboard door
Cabinetry dimensions inches (mm)
DD24DUT7
DD24DVT7
P
inside height of cavity* min. 34”(864)
Q
inside width of cavity 24”(610)
R
inside depth of cavity min. 22 ⁄”(560)
S
recommended height of adjacent cabinet space 30”(762)
T
height of toekick space* 3 ⁄ - 6 ⁄”(100-160)
*depending on adjustment of leveling feet
