DCS WO-230SS - Component Access: High Temperature Cut-Out; High Temperature Cut-Out

Component Acces s

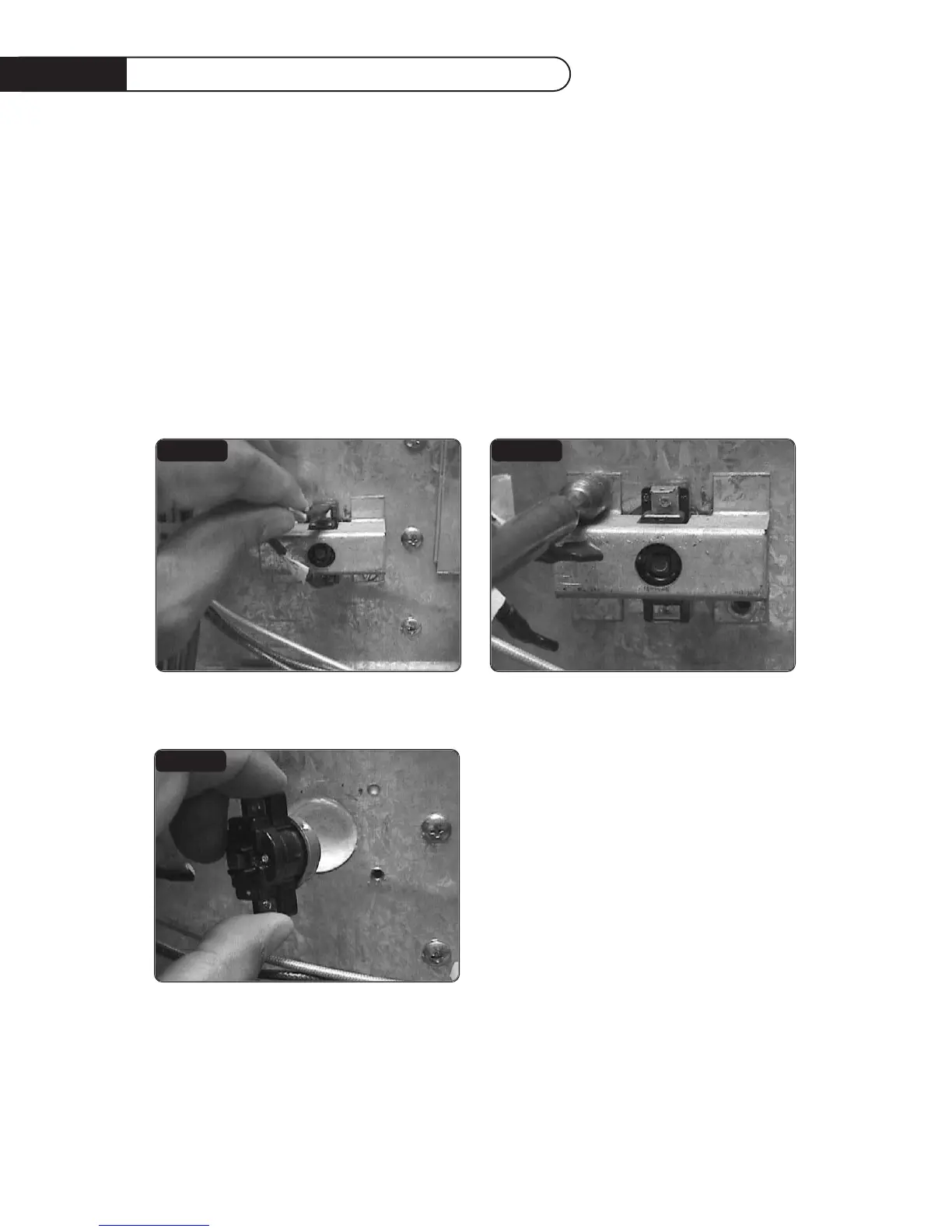

HIGH TEMPERATURE CUT-OUT
STEP 1
The high temperature cut-out is held in place by the cut-out bracket. The bracket is secured to the
oven by two (2) screws, disconnect wires from terminals.
STEP 2
With a 5/16” socket remove the two (2) screws.
FIG.13
FIG.14
FIG.15
36
